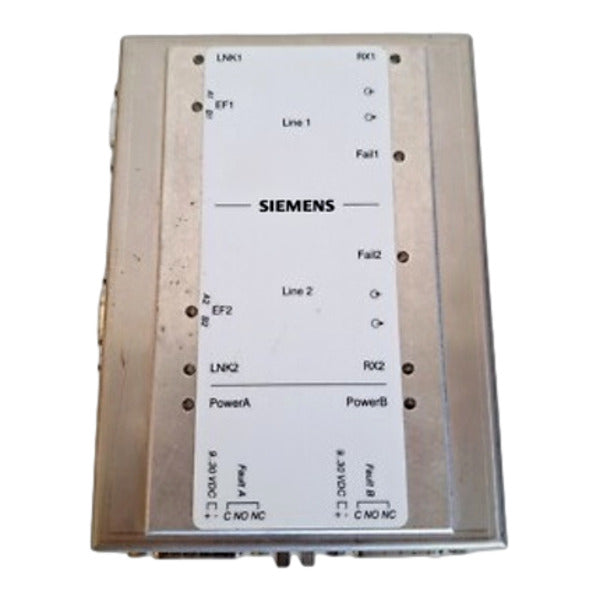

Siemens FN2006-U1 (S54400-A61-A1) Fiber Module SM
The single-mode (Model FN2006-U1) / multi-mode (Model FN2007-U1) fiber-optic interface module can be used to transmit SafeDlink communication, relative to Desigo Fire Safety Model FC2025 and FC2050 fire-alarm control panels (FACPs), as well as with the Model FT2050 Desigo Fire Terminal unit. The single-mode / multi-mode fiber-optic module provides peer-to-peer network communication between the Desigo 252-point and 504-point FACPs, as well as between each Siemens FireFinder XLS panels. For use with FireFinder XLS FACPs, a communications bracket, Model COM-BRK, is used to mount one (1) single-mode / multi-mode fiber-optic module. Additionally, Models FN2006-U1 / FN2007-U1 require 24
Specifications
| Model |
FN2006-U1 |
| Humidity |
90+/-3°F (32+/-2°C). |
| Weight |
1.27 Lbs. |
| Certifications mentioned |
CSFM, FM, UL, UL 864, ULC |
Documents & Downloads
FAQ
Which panels use the FN2006-U1?
Desigo Fire Safety FC2025 and FC2050 panels and the FT2050 Desigo Fire Terminal, for SafeDlink communication. It also provides peer-to-peer networking between FireFinder XLS panels, mounted on a COM-BRK communications bracket.
What fiber does it use?
Two high-quality duplex 9/125 single-mode fiber-optic cables with SC-style connectors. The FN2007-U1 is the multi-mode version.
What power does it need?
24 VDC nominal, supplied by the FC2025 or FC2050 panel or by a UL certified regulated 24 VDC supply such as the PAD-3 or PAD-4.
How long can the network be?
Total network length should not exceed 131,000 ft (40 km), limited by communication delay across the fiber network.
