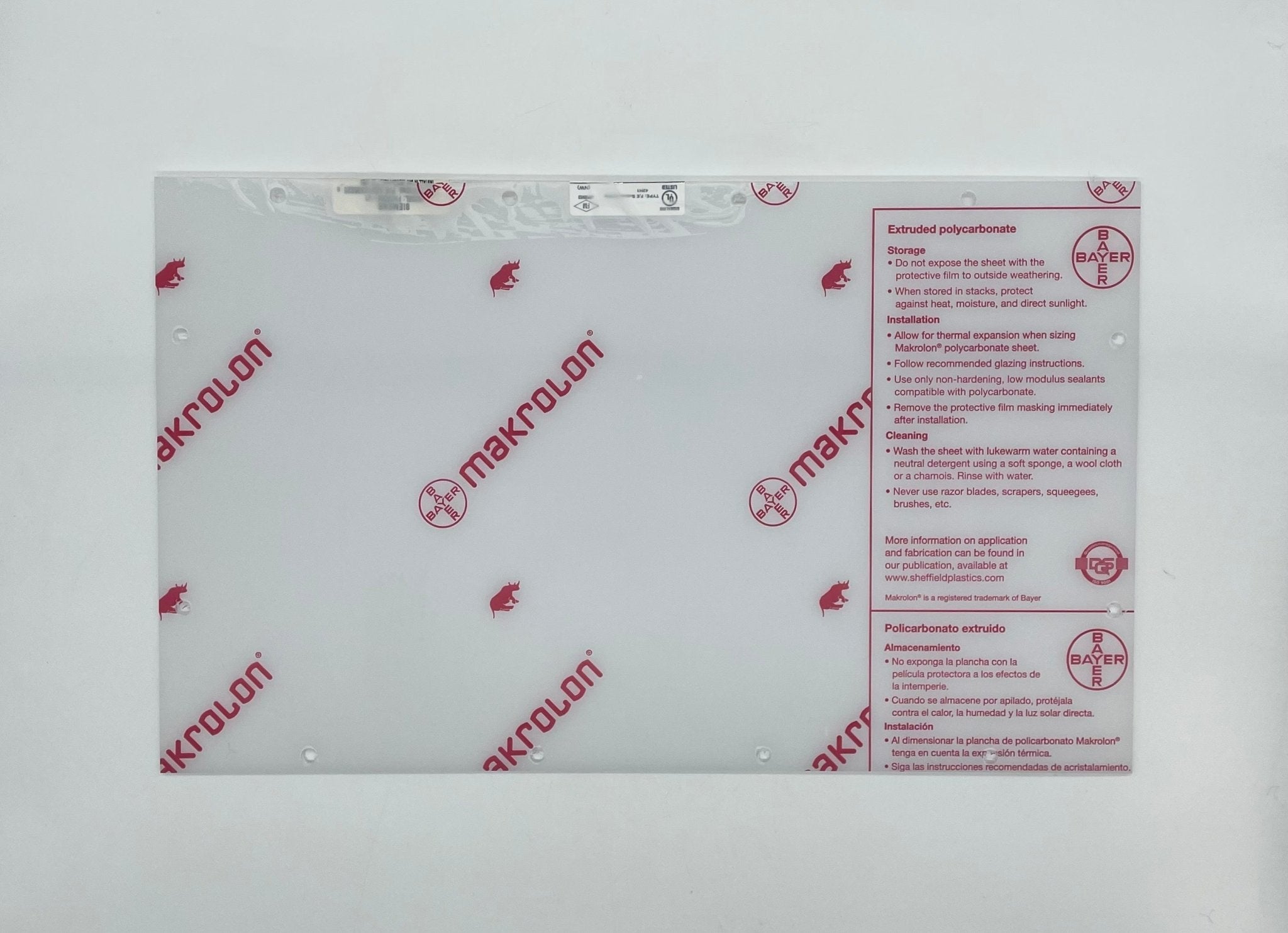

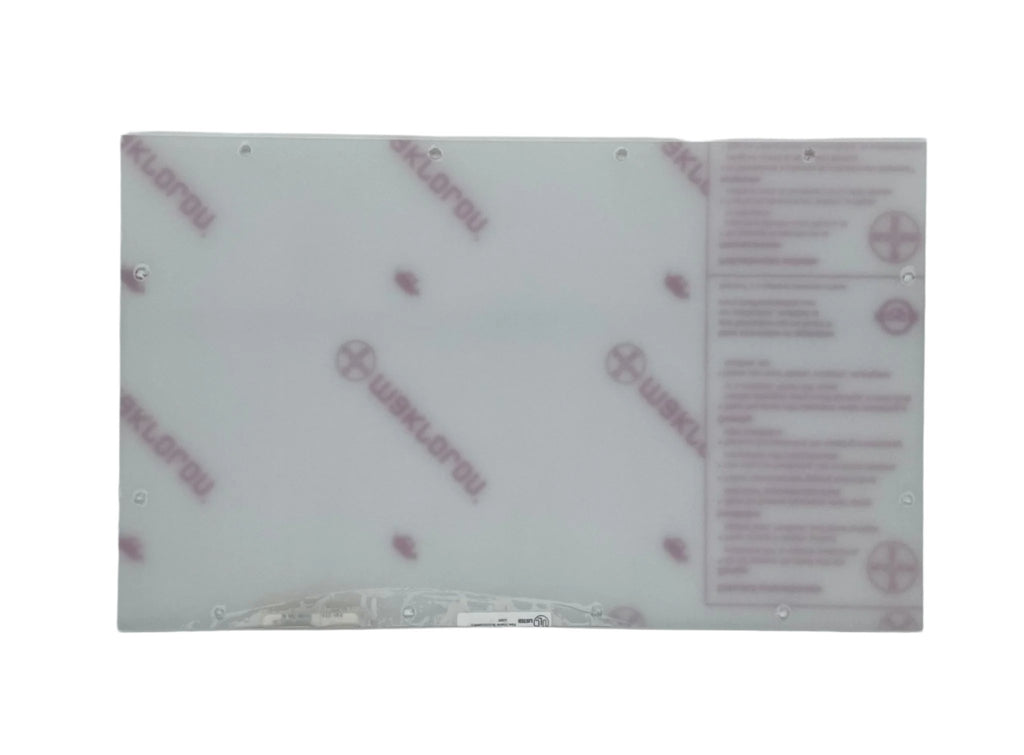

Siemens FHD2006-U1 — clear-lens window, Siemens part number S54400-C46-A1, for the outer doors of Cerberus PRO fire-alarm enclosures.
A Cerberus PRO enclosure comprises a back box, an inner door carrying the operating unit and LED option modules, and an outer locking door with one or more openings. The FHD2006-U1 is the rugged Lexan lens that fills such an opening, keeping the panel readable with the outer door closed and locked; Siemens designates its two-window 2HU kit as being for use with LEDs. It fits one way only, held by eight #10-32 lock nuts supplied with it. Quantity follows the door: FHD2001 and FHD2002 doors take one, FHD2003 two, and a 3HU IVC enclosure with an FHD2007 door two.

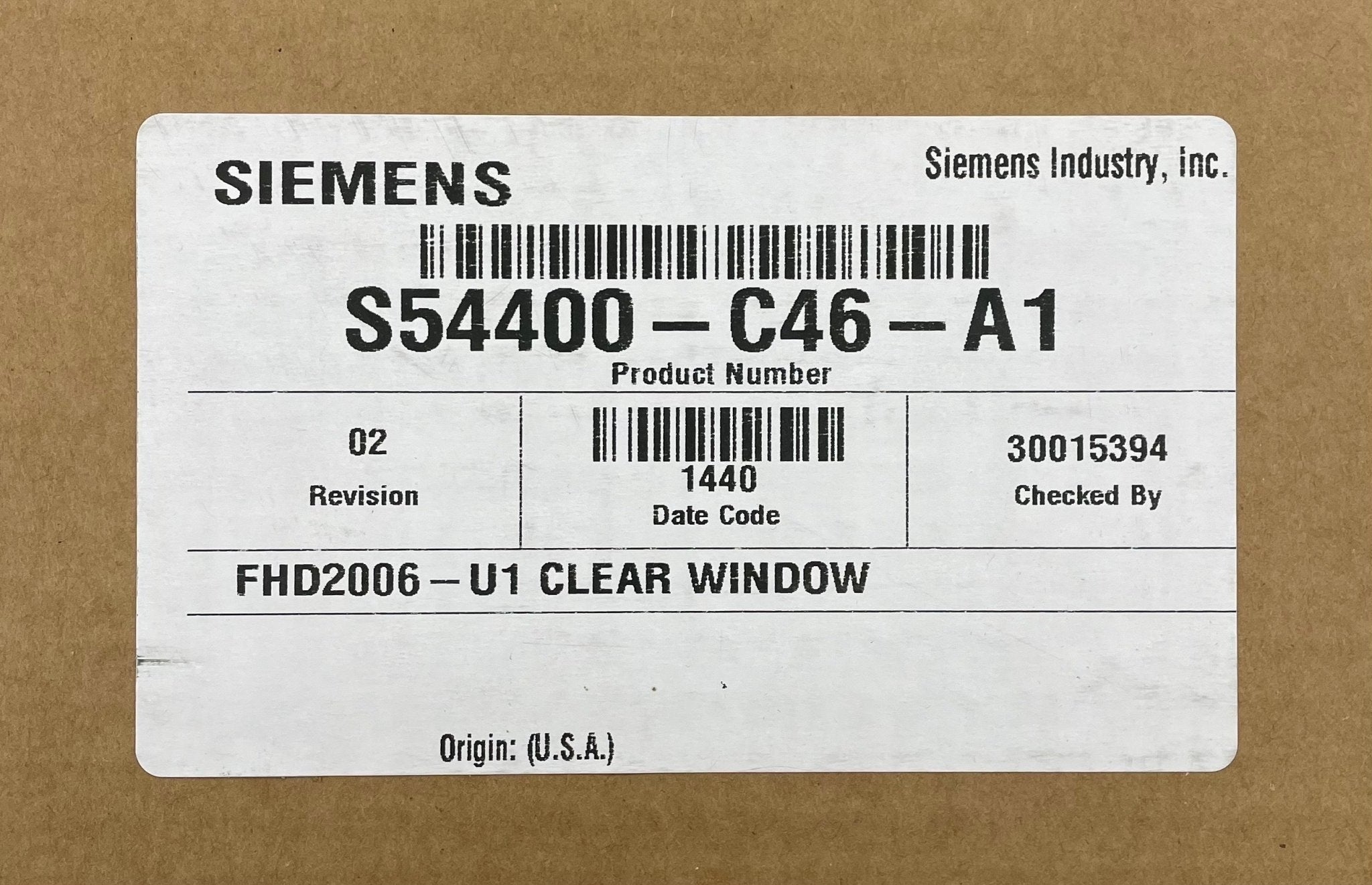

- Model FHD2006-U1, Siemens part number S54400-C46-A1, clear-lens window
- 17" W × 10-5/16" L
- Fits FHD2001, FHD2002 and FHD2003 outer doors, -U2/-U3/-R2/-R3

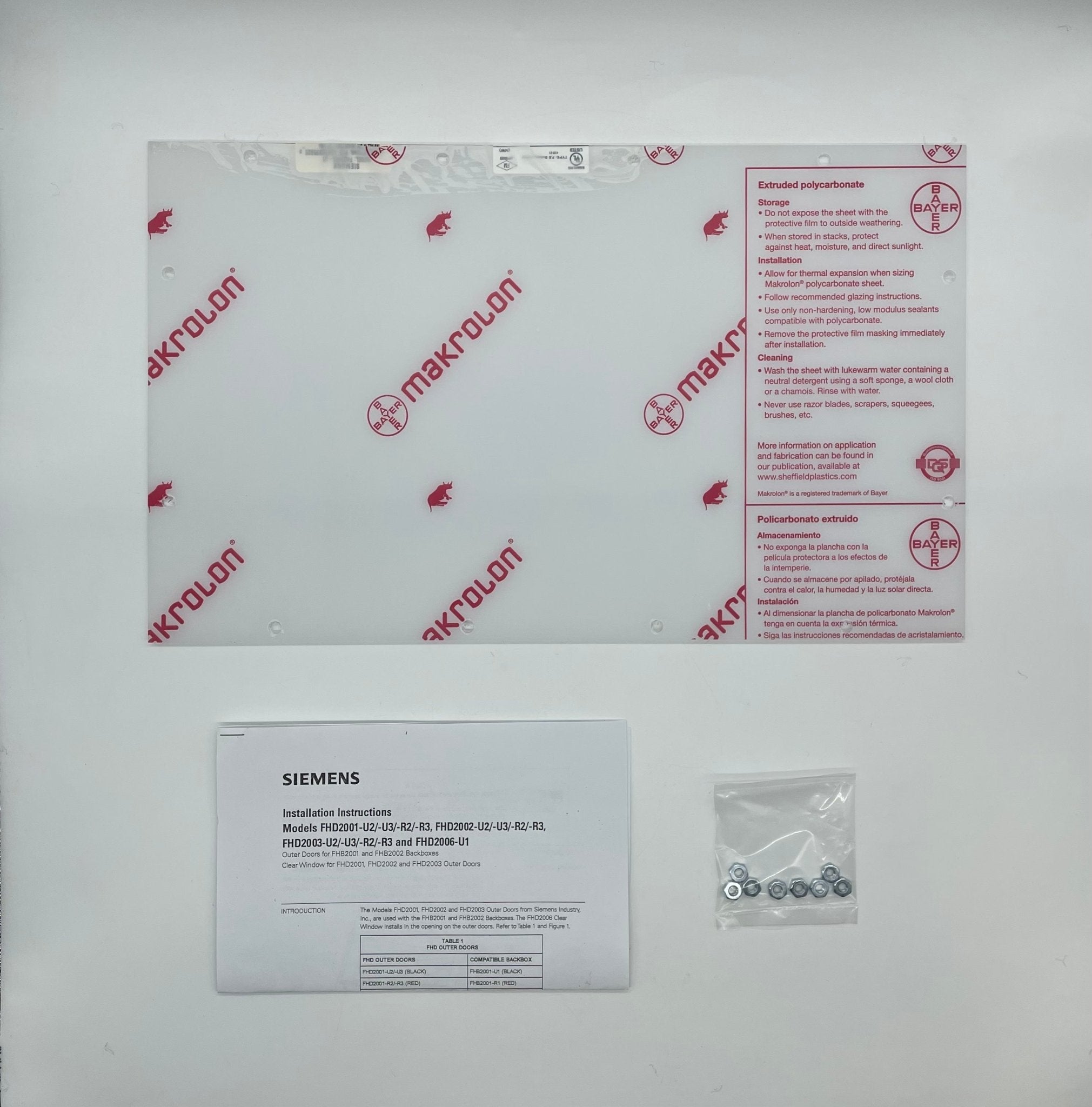

- Eight #10-32 lock nuts included; one orientation
- Indoor dry use; enclosures built to NEMA 2 (IP-30)
Order-desk traps: FHD2009-U1/R1 is the blank plate fitted in place of a window, FHD2005-U1 a solid blank inner door, and FHD2002-U3 and FHD2003-U3 the outer doors themselves.
