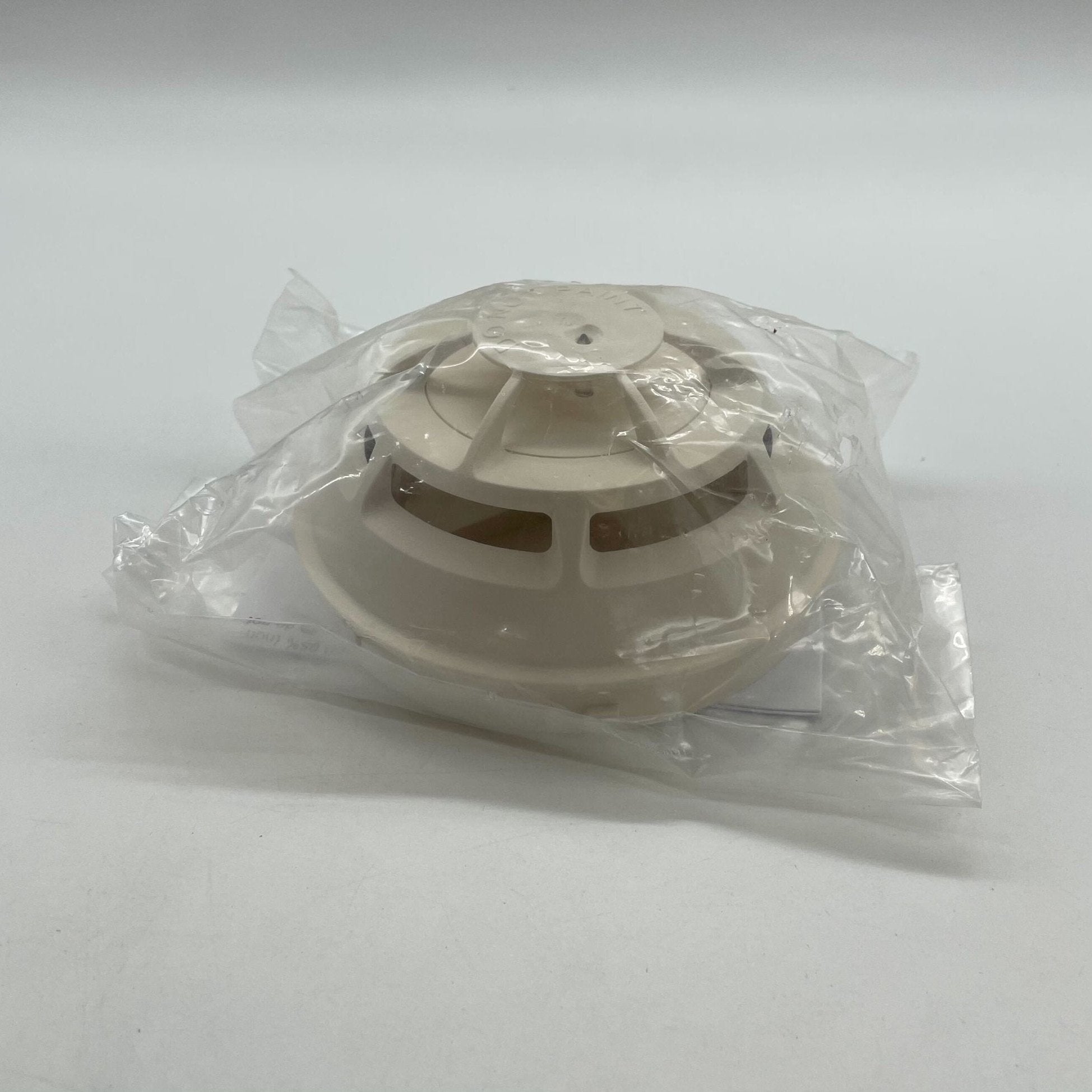

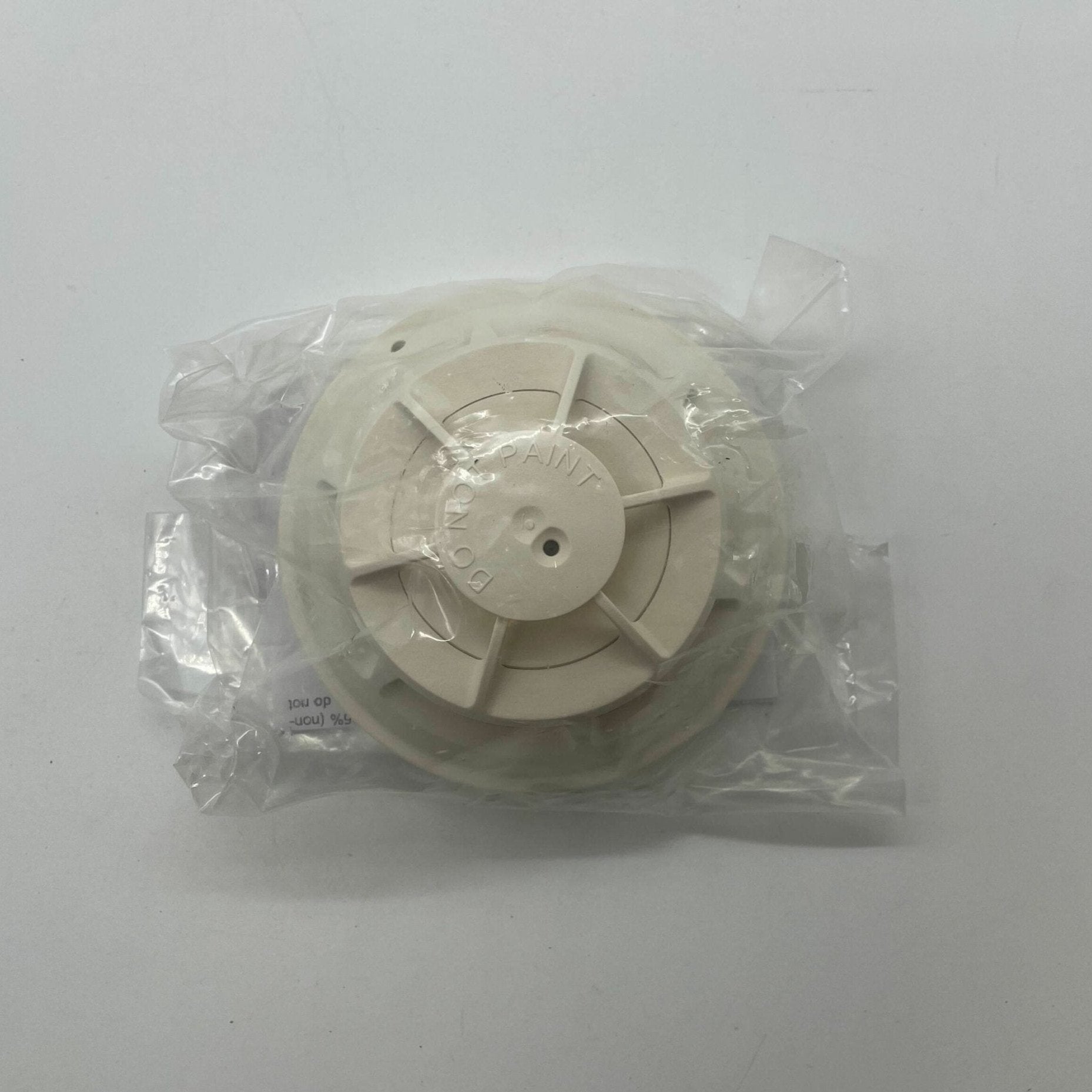

Siemens FDT421 — intelligent addressable thermal (heat) detector, order number S54320-F5-A1, with seven field-selectable parameter sets.
A thermistor and on-board microprocessor replace the mechanical element of a conventional heat detector, so the panel reads temperature continuously and one stocked part covers work that would otherwise need several fixed-rating heads.
- Five fixed set points at 135, 145, 155, 165 and 175°F, plus two rate-of-rise sets at 15°F per minute
- Optional low-temperature warning at 40°F against freezing sprinkler pipework
- Two-wire SLC, polarity insensitive, one address, with built-in Class X isolation
- 16 to 30 VDC; 250 µA standby, 410 µA alarm
- Tri-colour 360° status LED, self-diagnostics every 10 s, addressed with the DPU
- UL 521 and ULC certified, CSFM 7272-0067:0258; 50 ft centre spacing
It mounts on the DB-11 or DB-11E base, the DB2-HR relay base, or the ABHW-4B and ABHW-4S audible bases. The Cerberus PRO HI921 is the adjacent order number S54320-F5-A2 with the same seven parameter sets, so confirm the detector line before substituting.
