Siemens FCM2041-U3 — touchscreen operator interface for the Cerberus PRO Modular fire alarm system.
It is both the face of the panel and its brain: all system logic and supervision comes from its internal controller, and it holds the site-specific program written with the Zeus tool. The operator acknowledges events, controls the notification appliance circuits, resets the system and reads where each event is.
- VGA LCD with touch screen, navigation keys, status LEDs and an audible for unacknowledged events
- Mounts to the rear of the inner door of a CAB-1, CAB-2, CAB-3, REMBOX2 or REMBOX4
- Two 10-position rotary switches set the address: 01 standalone, or an XNET node address from 01 to 64
- Rear panel carries the Zeus upload port (USB type B), Ethernet, SD card slots and a diagnostic display
- 24 V backplane current 195 mA, standby current 125 mA; 0 to 49°C
FCM2041-U2 is the same interface built for Desigo Fire Safety Modular rather than Cerberus PRO Modular, and both are the upgrade path from the earlier PMI. S54430-C16-A1 is not an interface but the alternate-language label kit.
Documents
FAQ
Which enclosures can the FCM2041-U3 mount in?
It mounts in a CAB1, CAB2 or CAB3 enclosure, or in a REMBOX2 or REMBOX4 remote enclosure, each of which houses one operator interface.
How does it connect to the card cage?

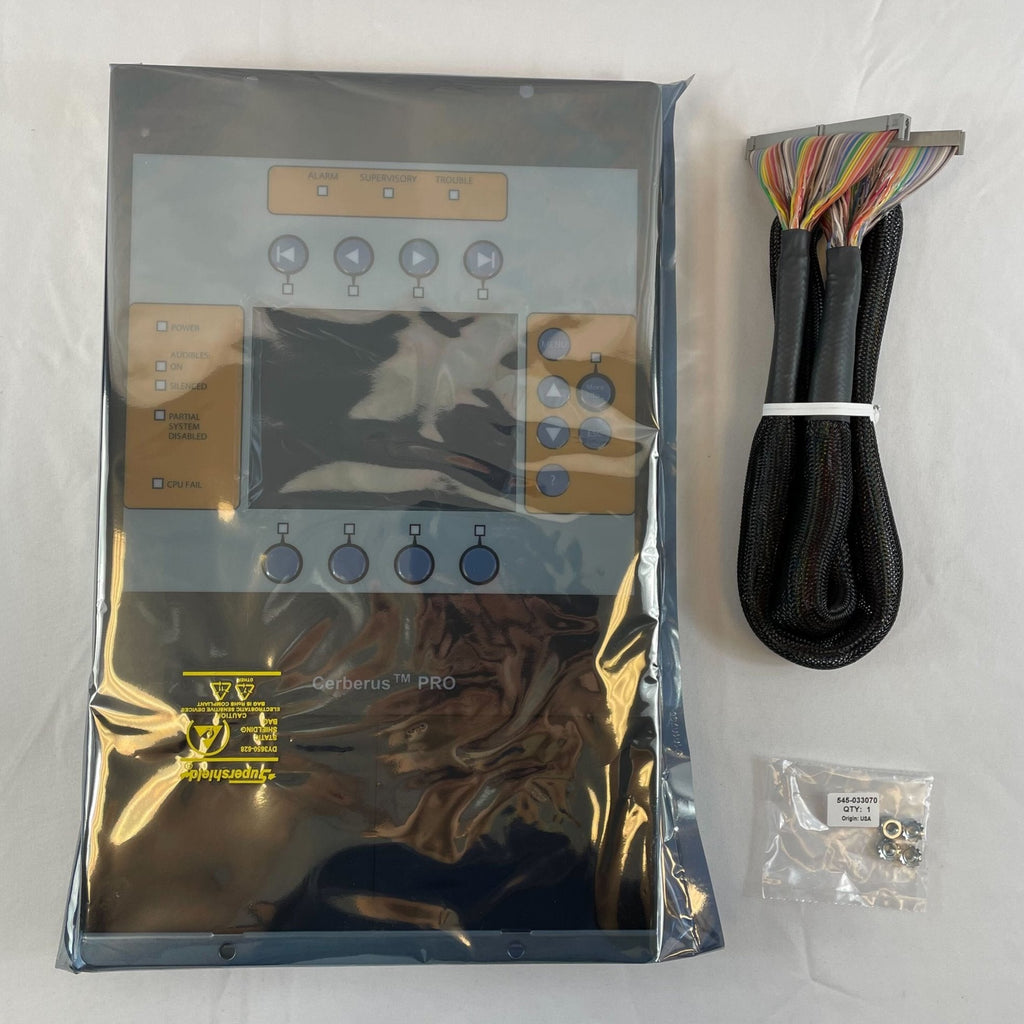

A 40-inch (1.02 m) 60-pin cable, P/N 555-133743, connects the operator interface to the Siemens CC-5 five-slot card cage.
Are other language labels included?
No. Slide-in labels for French (Canadian), Spanish and Portuguese-Brazilian text are ordered separately under part number S54430-C16-A1.
How is it programmed?
The operator interface gets its programmed logic and panel supervision from the Zeus-C configuration software tool.
