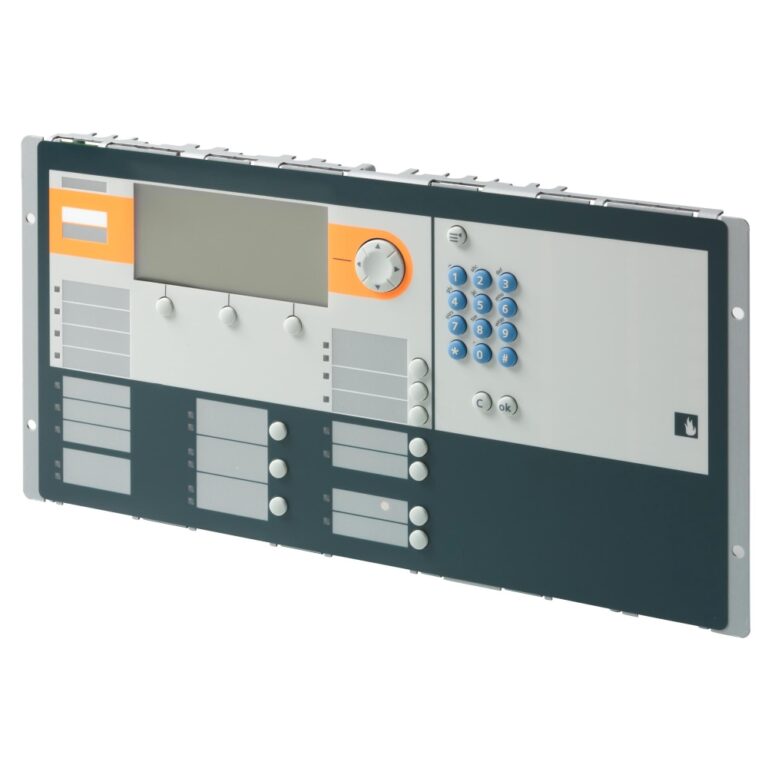

Siemens FCM2018-U3 (S54400-C40-A2) is the base model operating interface unit, or PMI, for Cerberus PRO fire systems. It has the display and controls used to run the FC922 and FC924 control panels, the FV922 and FV924 Intelligent Voice Communication panels, and the FT924 remote fire terminal.
From the PMI the user acknowledges, silences and resets the panel, along with other programmable functions. A backlit LCD shows system status, and several events can be displayed at once. Context-sensitive soft keys, four-way navigation and an alphanumeric pad drive the menus, and an Ethernet port is used for configuration and firmware transfers.
Specifications
| Display |
Backlit LCD, 2 × 4-3/4 in., 8 lines × 40 characters |
| Status LEDs |
Power, alarm, gas alarm, supervisory, silenced, ground fault, audibles on, trouble |
| Buttons |
Seven spare user-programmable, with slide-in labels |
| Connectivity |
Ethernet port |
| Compatible with |
FC922, FC924, FV922, FV924, FT924 |
| Approvals |
UL 864 10th Ed., UUKL smoke control, ULC; FM, CSFM, NYC FD |
Features
- Global annunciation and control
- Partial system disable and audible status LEDs
- Context-sensitive help menu
- Large soft keys for multi-programming options
Related models
FCM2019-U3 adds 24 programmable LED sections, FCM2035-U3 is the ULC version with extra LEDs, and FCM2043-U3 has a built-in switch module.
