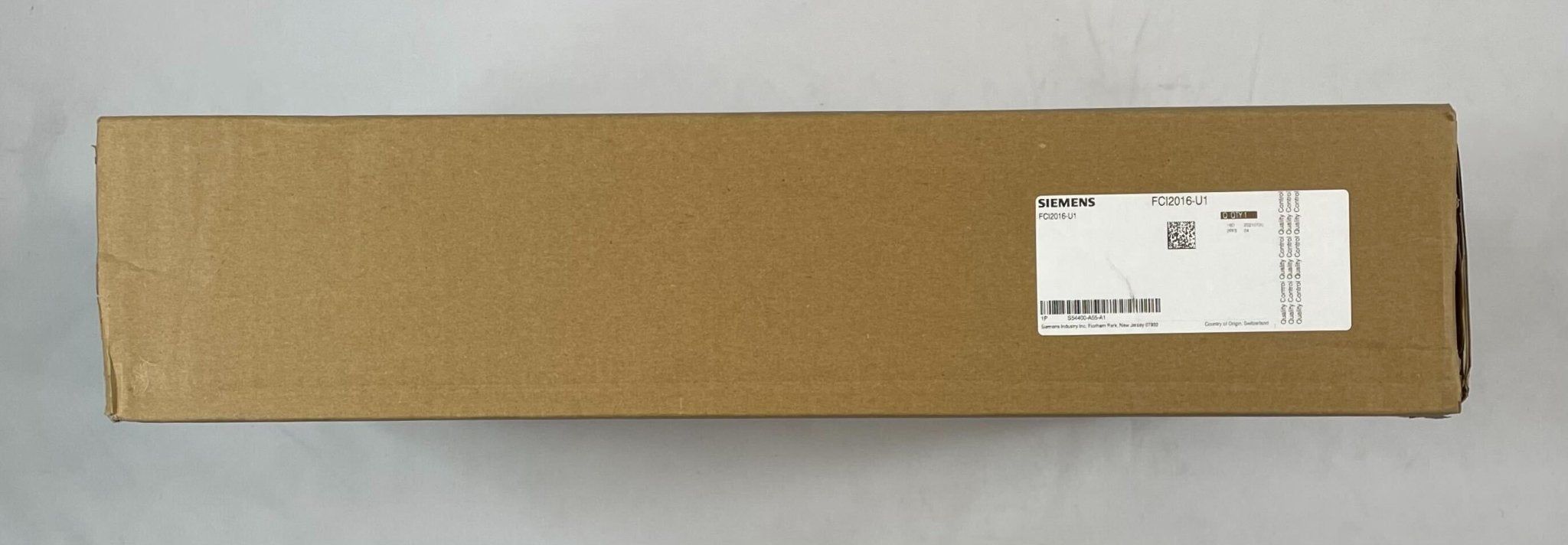

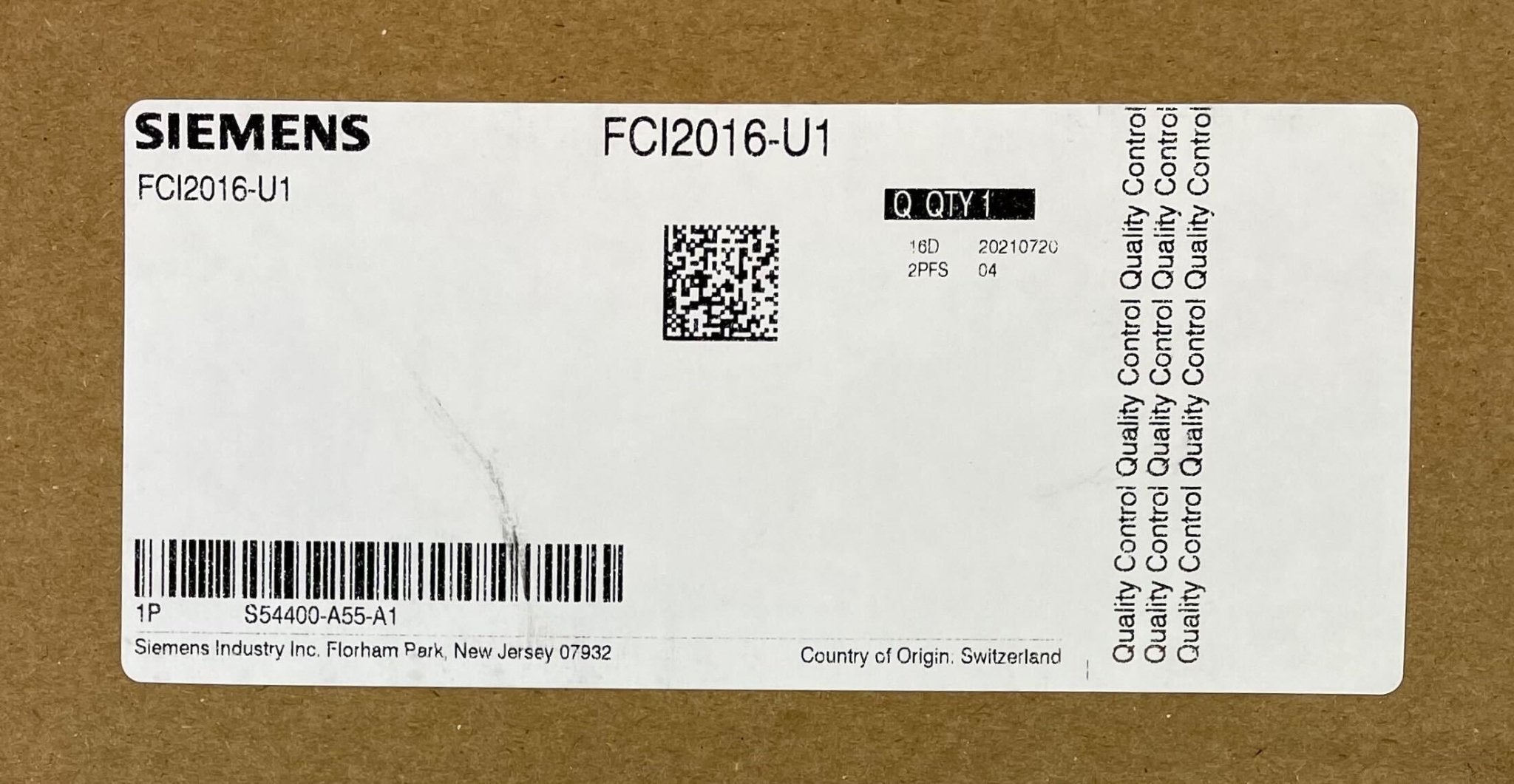

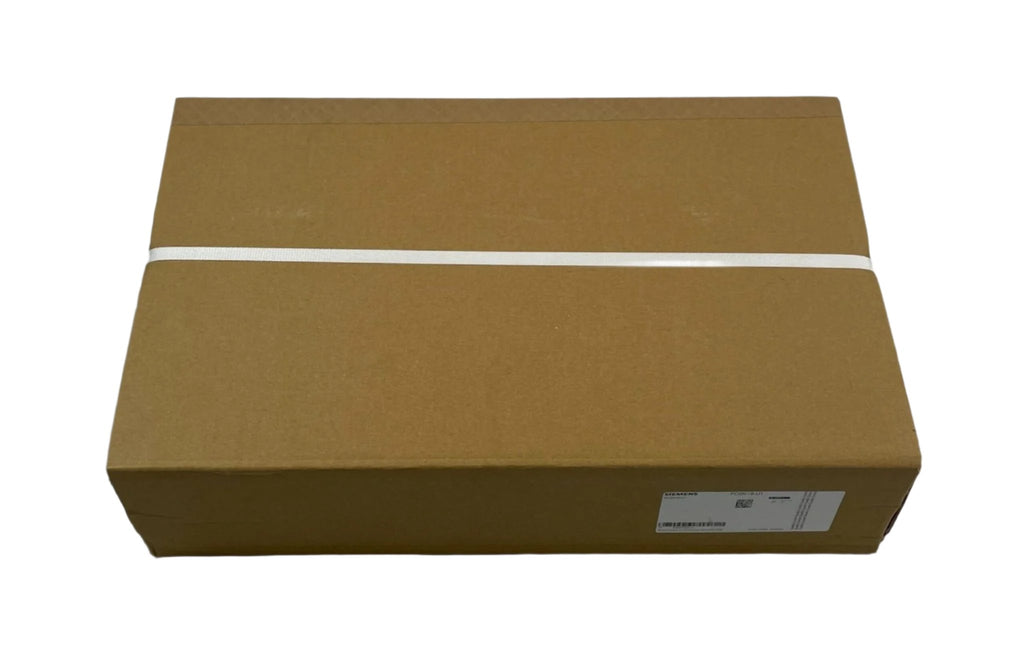

Siemens FCI2016-U1 — the system periphery board for the 252 point Cerberus PRO FC922 control panel.
Siemens calls the periphery boards the main components for operation of the Cerberus PRO panels, so this is not an add-on card. It carries the C-NET signalling line circuit, the notification outputs, the relays and the battery charger, and mounts on the panel back box.
- One integrated loop card with EMC surge protection: four Style 4 Class B or two Style 6/7 Class A loops, up to 252 devices
- C-NET loop output 33 VDC at 1 A, monitored for ground fault, short circuit and open loop
- Two programmable Class B Style Y NACs or one Class A Style Z, 24 VDC at 3 A per circuit
- Four configurable Form C relays at 5 A, 30 VDC or 120 VAC
- Battery charger with trickle, bulk, over charge and float modes, with automatic transfer
- 110 mA standby, 136 mA alarm; UL 864 10th Edition, ULC certified
It is a board, not a panel. An FC922 also needs the back box, an FCM2018-U3 or FCM2019-U3 operating unit, an FP2011-U1 or FP2012-U1 supply, a door and batteries, all ordered apart. FCI2017-U1 is the 504 point board for the FC924.
Documents
FAQ
Which panel uses the FCI2016-U1?
It is the periphery board for the Cerberus PRO FC922; the FCI2017-U1 is used in the FC924.
How many devices does it support?
One to four Class B circuits or one to two Class A circuits that supervise and control up to 252 devices on the C-NET loop.
Which power supplies work with it?
All functions are supported by the FP2011-U1 (24 VDC, 6 A max.) or FP2012-U1 (24 VDC, 11.5 A max.) power supply.
