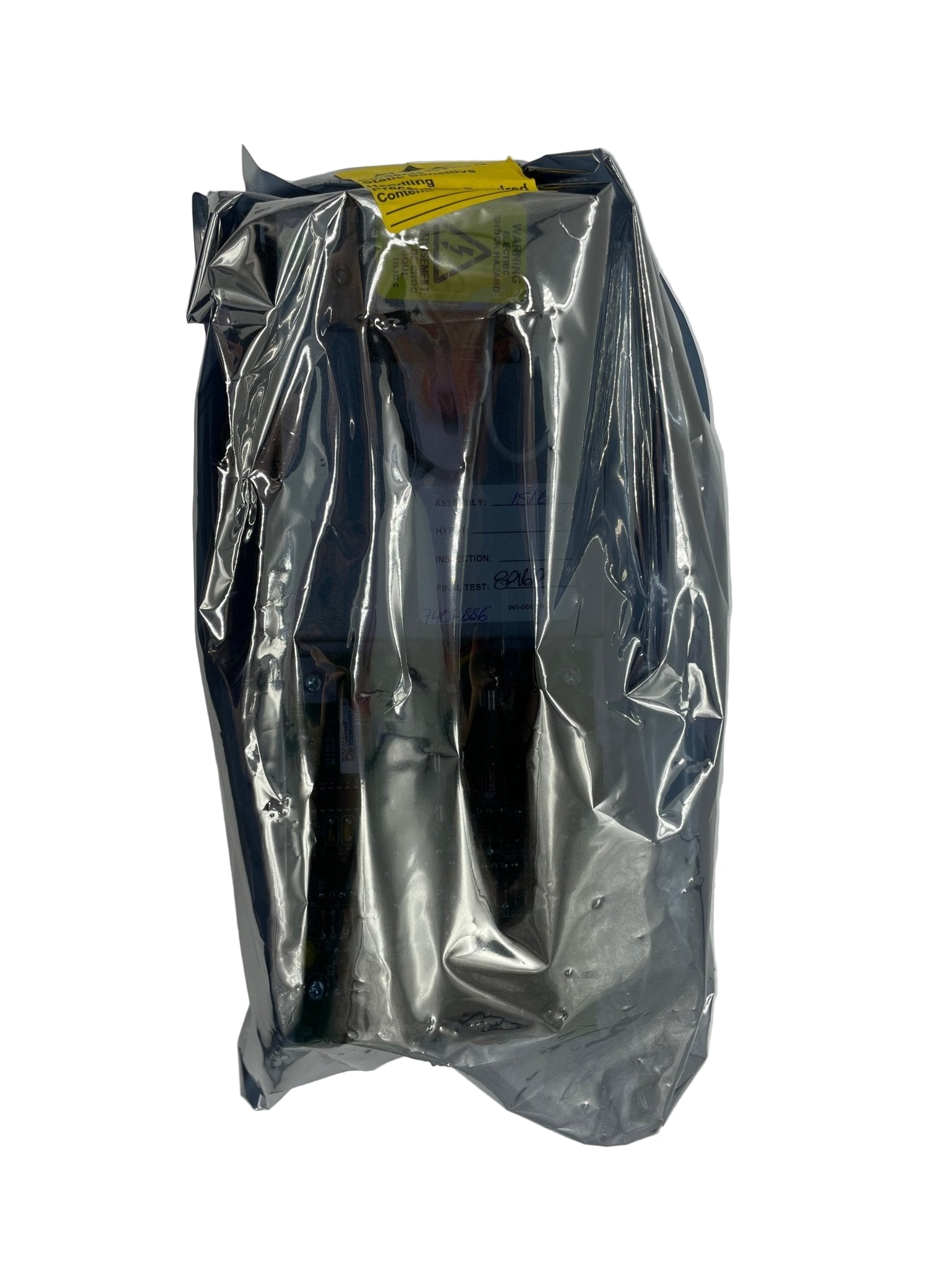

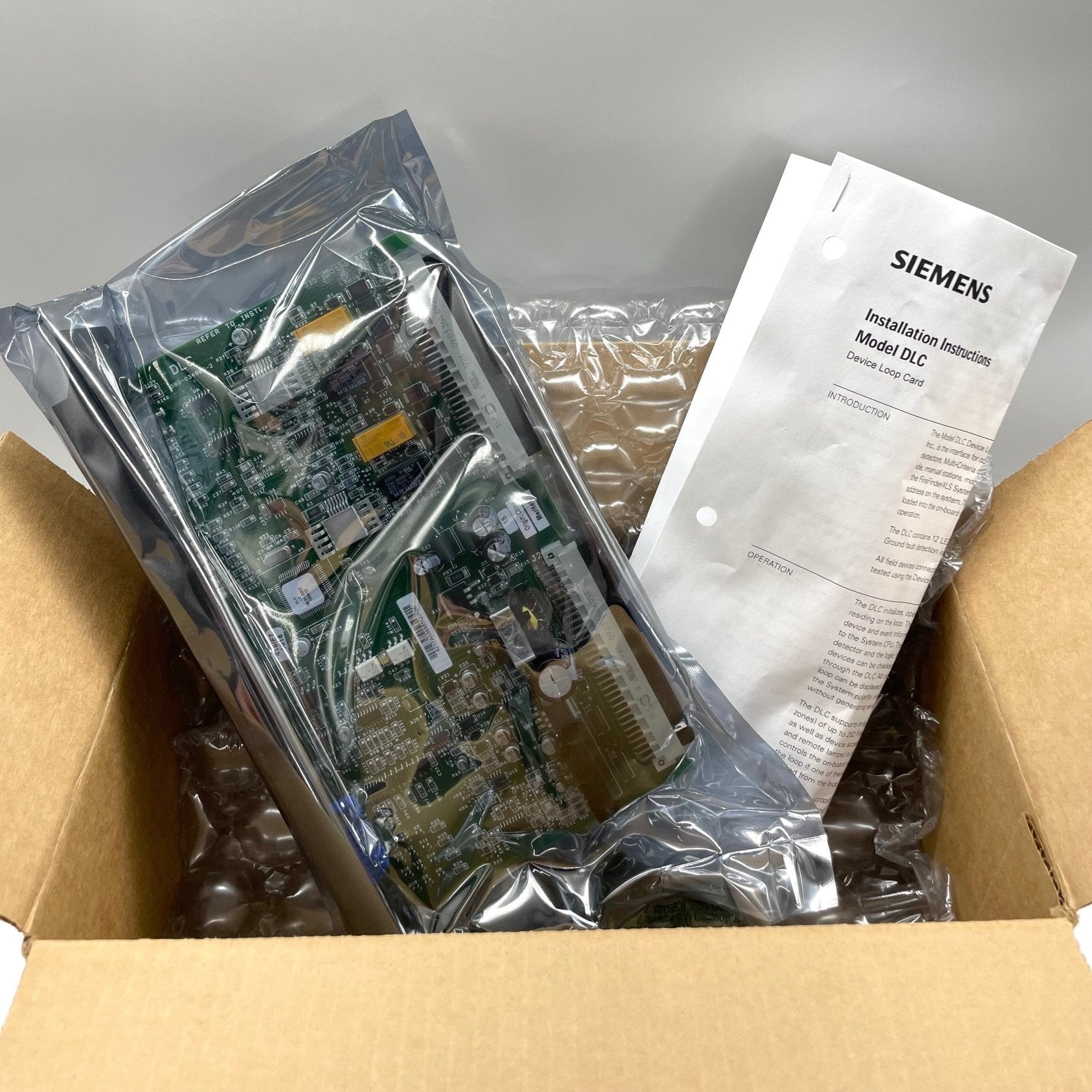

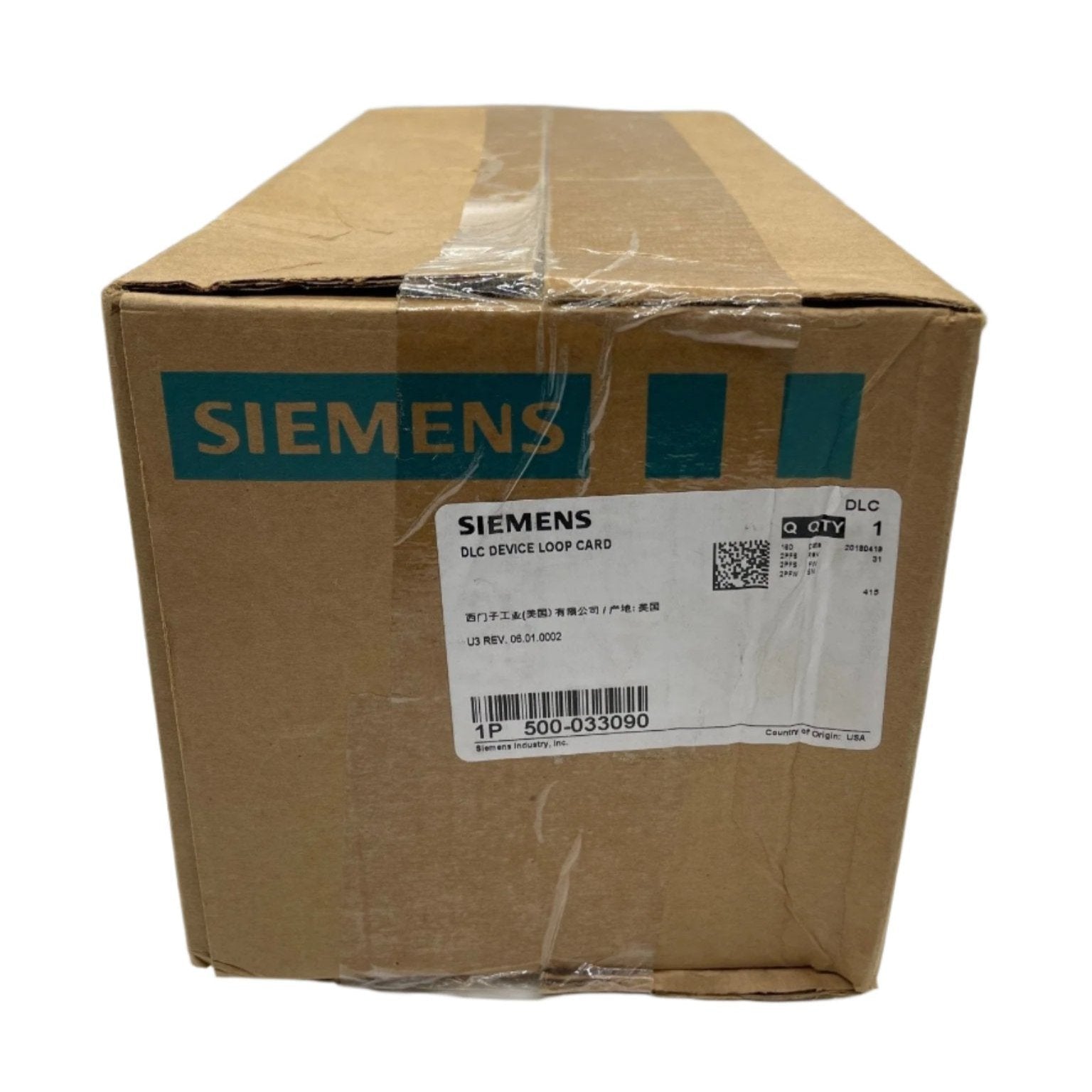

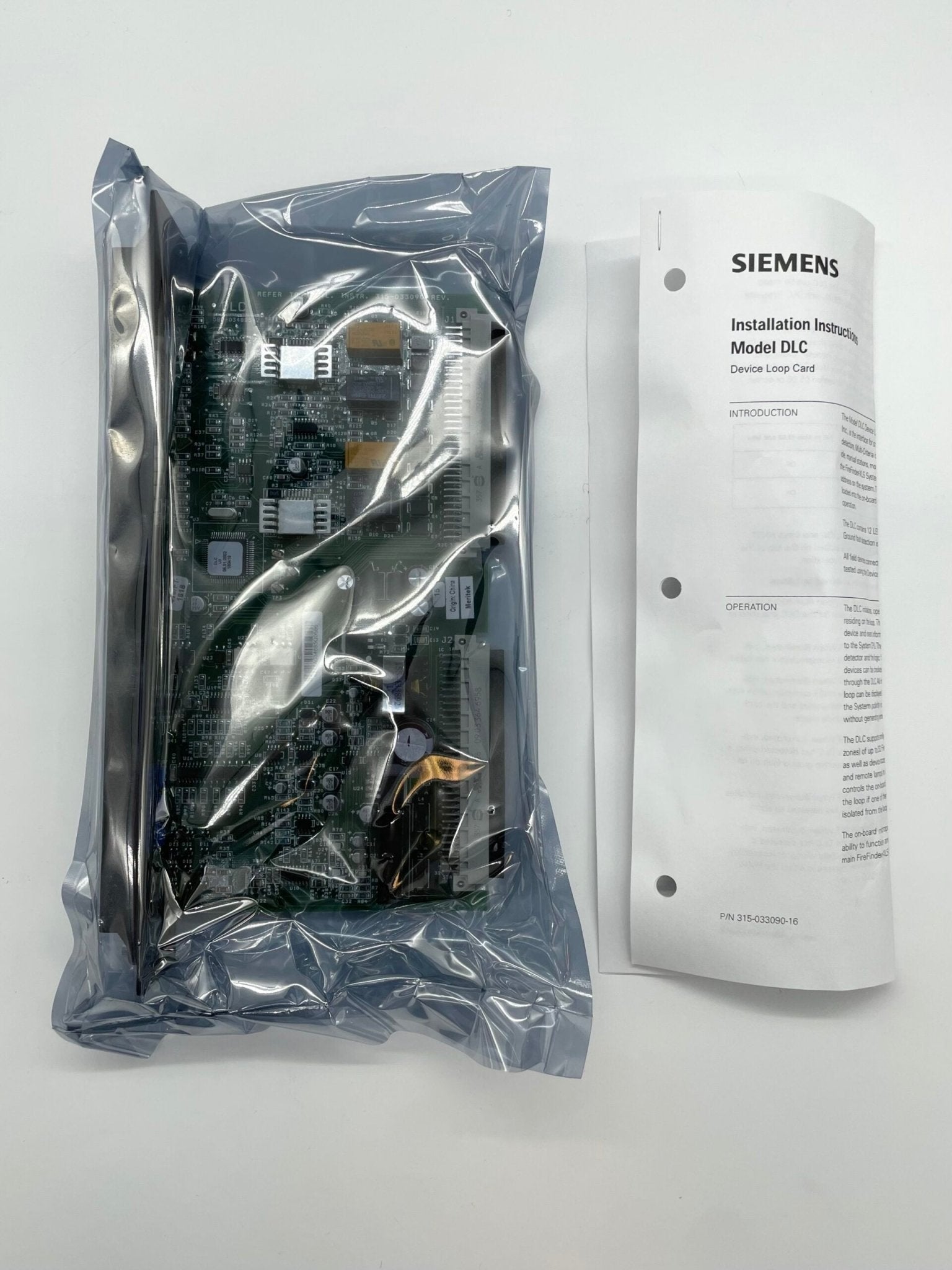

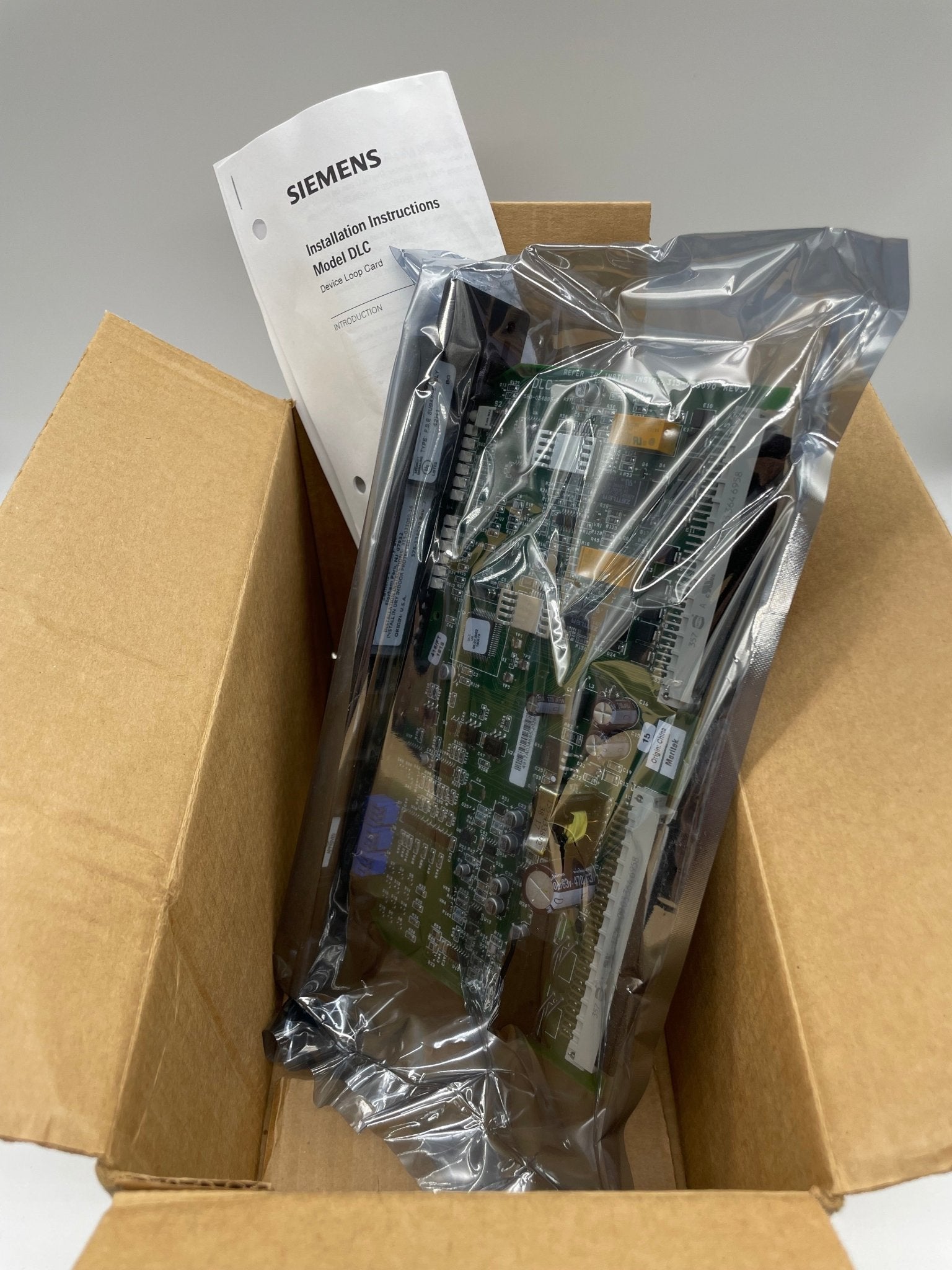

DLC (Siemens stock no. 500-033090) is the Device Loop Card for Siemens FireFinder XLS, Desigo Fire Safety Modular and Cerberus PRO Modular panels. It connects intelligent smoke detectors, multi-criteria detectors including CO, manual stations, monitor and control devices to the panel, and uses one network address. Its on-board microprocessor keeps the loop able to initiate alarms even if the main CPU fails, and it isolates a shorted zone so the other zone keeps working.
Specifications
| Loop capacity |
One loop (two isolated parallel zones), up to 252 intelligent devices in total |
| Wiring style |
Style 4 (Class B, T-tapping allowed) or Style 6 (Class A, no T-tapping); both zones same style |
| Wire |
12 to 22 AWG non-shielded, non-twisted thermoplastic fixture wire allowed, if local codes permit |
| Zone resistance |
Max. 50 ohms per zone with 252 devices on one zone |
| Max. capacitance |
0.5 µF line+ to line-; 1.0 µF line to chassis |
| End of line device |
Not required |
| Ground fault detection |
Positive or negative, at less than 50 k ohms |
| Indicators |
12 LEDs; reset switch; three HNET address dials (001 to 251) |
| Mounting |
Any slot of a CC-5 card cage, via two 96-pin DIN connectors |
| Power |
+24 V / -24 V from PSC-12 or PSC-12M to terminals 17 and 18 of its CC-5 slot |
| Listings |
UL and ULC listed; power limited per NEC 760 |
Compatibility and installation notes
- Supports only FireFinder XLS / Desigo Fire Safety Modular / Cerberus PRO Modular intelligent devices; up to 252 devices can be split between the two zones in any proportion.
- Multi-criteria detectors need OI firmware 9.02 or later and DLC firmware 06.xx or later; systems using OI P/N 500-033070 need DLC firmware 05.06 or earlier.
- Field devices are addressed and tested with the Device Programming Unit (DPU). The wiring style is set in the Zeus Programming Tool.
- Field wiring lands on the CC-5 slot terminal blocks; remove battery then AC before installing.
Documents
Specifications from Siemens Installation Instructions Model DLC, P/N 315-033090-AV (document A6V10239107). Manufacturer specifications are subject to change.
