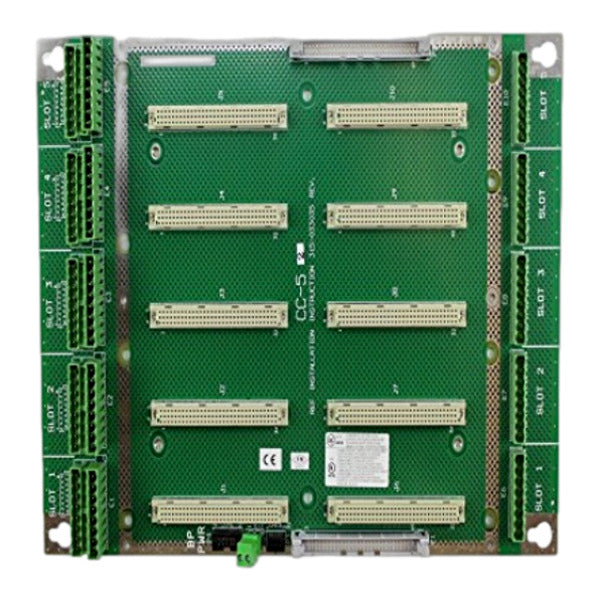

Siemens CC-5 — five-slot option card cage, Siemens part number 500-633037.
The CC-5 is the passive backplane of a Siemens modular fire panel. It carries no active components; every card in it shares a common 60-pin power and data bus that runs through the cage and connects at each side to the operator interface, power supplies and amplifiers. Field wiring lands on removable terminal blocks along the top, all power limited.
- Five slots taking any combination of option cards, with no slot restrictions
- Occupies two of the four module spaces on the back box or a CAB-MP plate, in a CAB-1, CAB-2 or CAB-3 enclosure
- Numbered removable screw terminals rated 12 AWG to 24 AWG
- Ships with two card guides and a blank card-position label
- 32°F to 120°F, 93% RH at 90°F; UL 864 9th Edition listed
Siemens publishes this same 500-633037 cage for FireFinder XLS and for Cerberus PRO Modular, so the cage does not settle the panel family — the cards do. It is the cage alone: option cards such as the DLC, CRC-6, NIC-C, ZIC-4A, TZC-8B and ZAC-40, and the CAB-MP plate, order separately.
