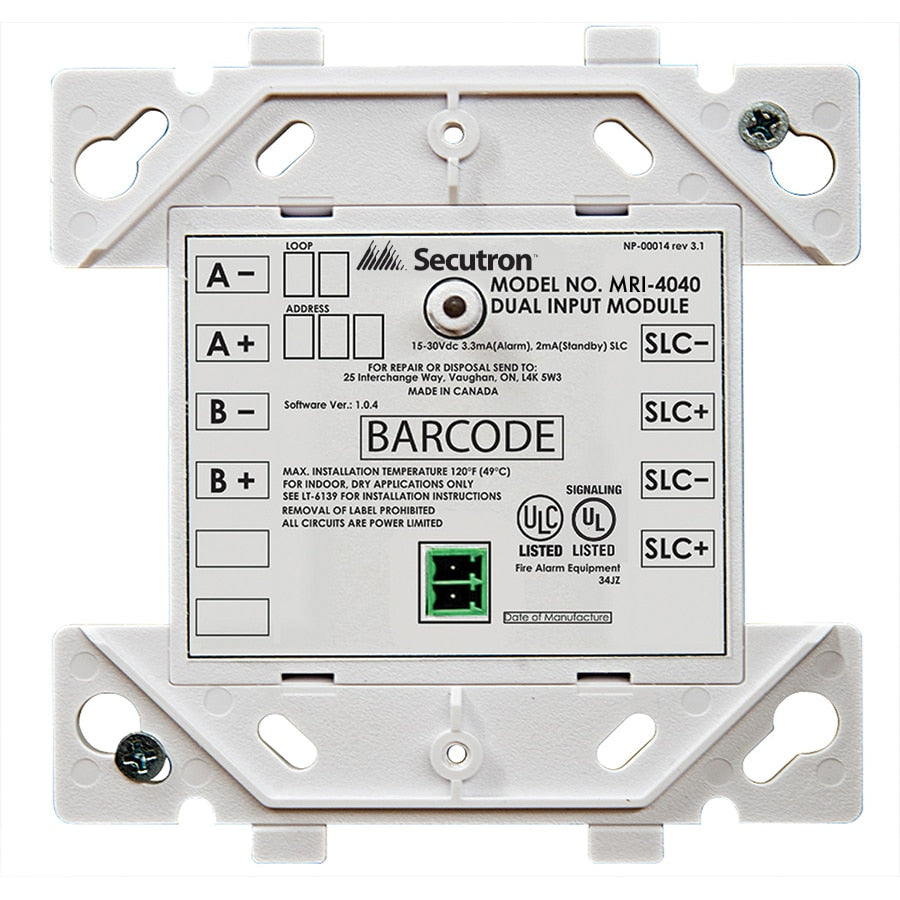

Secutron MRI-4040 4000 Series Dual Input Module
The NEW MRI-4040 Dual Input Module is an intelligent addressable module is designed to be used for alarm, supervisory, or monitor applications.
FEATURES
The MRI-4040 Dual Input Module is designed to be used with compatible fire alarm control units.
Any combination of MRI-4000 series devices up to 240 can be connected on a single SLC.
Mounts in a standard 4” square or double gang electrical back box.
Indicating LED provides module status
The address of each module is set using the MIX-4090 programmer tool.
Temperature range 32ºF to 120ºF (0ºC to 49ºC)
BENEFITS
Fast, reliable contact monitoring.
Will automatically set inputs to single Class A or dual Class B according to the configuration sent by the fire alarm panel.
No EOL resistor required when input is in Class A operation.
Monitors two (2) independent circuits in Class B using one (1) module address
ORDERING INFORMATION*
MRI-4040 – Dual Input Module
MIX-4090 – Addressable Device Programmer
