Secutron MR-401RP Intelligent Fire Alarm Control Unit c/w 1 Intelligent Loop compatible with MGC Devices 4000 Series only)

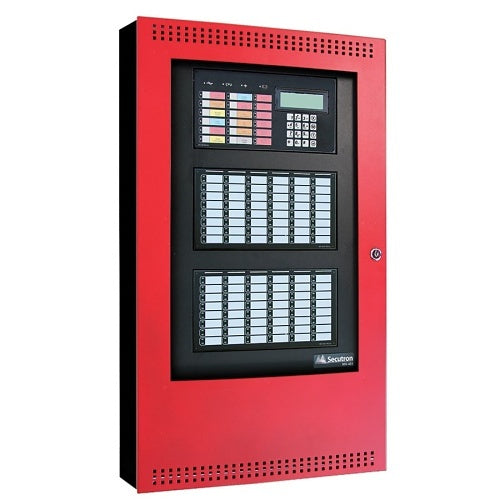

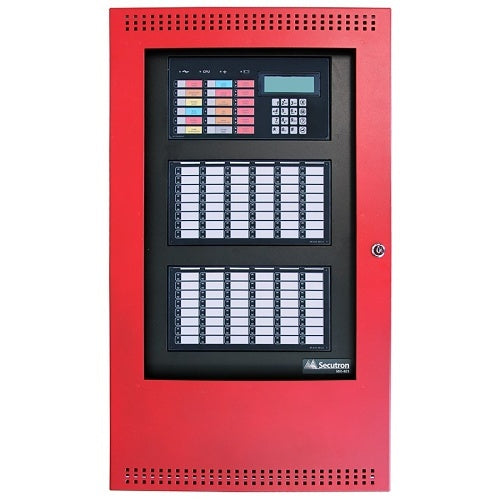

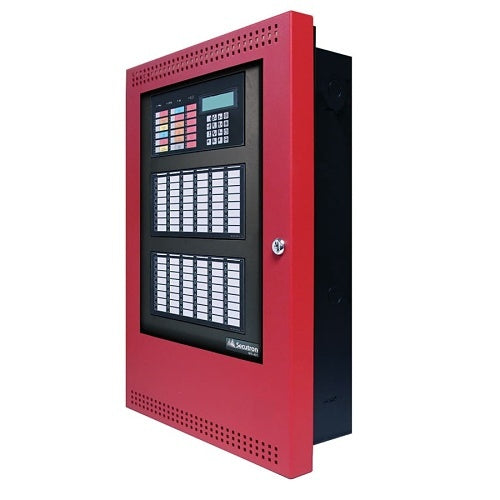

The MR-401 Addressable Fire Alarm Control Panel is an addressable panel, ideal for small to medium jobs. The MR-401 is shipped pre-assembled with main board, power supply, black backbox, and red door enclosure. C
ompatible with Secutron addressable devices (MRI-4000 Series), the MR-401 can have up to three addressable (SLC) loops with a maximum of 720 Secutron addressable devices in total. The MR-401 is equipped with a built-in POTs dialer. The dialer provides a means to communicate panel status to the remote central monitoring station using two dedicated phone lines.
Features
Main 4 x 20 LCD display, Main Board, Power Supply and Enclosure
One addressable (SLC) loop with a maximum of 240 Secutron addressable devices (MRI-4000 series) in total
Flexible zone and group configuration options
Compatible with Secutron addressable devices (MRI-4000) including photoelectric duct smoke detector and multi-modules
Class A, Class X, or Class B analog addressable SLC loop(s)
NAC circuits may be configured as silenceable signal, non-silenceable signal, silenceable strobes, non-silenceable strobes, or auxiliary power output. The audible signal may be Steady, Temporal Code, California Code, or March Time
