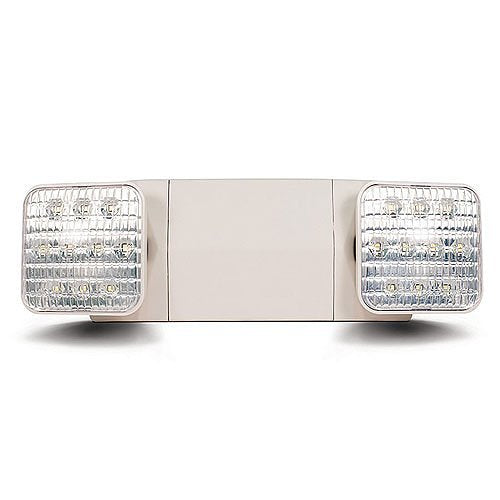

Secutron EL-7006 LED Emergency Light Large 2x1.2W Built-in Heads - Thermoplastic - 180 minute backup
The EL-7006 is a twin-head LED emergency light (Mircom calls it "twin square") in a thermoplastic housing with two built-in 1.2 W lamp heads. It runs from 120-347 VAC and its nickel-cadmium battery gives 180 minutes of backup; it can be wall or ceiling mounted.
Key Features
- Injection-molded thermoplastic ABS housing
- UL 924 compliant
- Wall and ceiling mountable
- 2 x 1.2 W SMD LED lamp heads, 100 lumens per head
- Test switch and charge indicator light
- Overcharge and over-discharge protection
- Packed 10 per case
Specifications
| Input voltage |
120-347 VAC, 50/60 Hz |
| Lamps |
2 x 1.2 W SMD LED |
| Battery |
Nickel cadmium, 3.6 V 1800 mAh |
| Backup time |
180 minutes |
| Charging time |
24 hours |
| Power on AC |
2.5 W |
| Transfer time |
< 0.2 second |
| IP class |
IP20 |
| Operating temperature |
0 C to 40 C (32 F to 104 F) |
Compatible With
- 120-347 VAC building power
