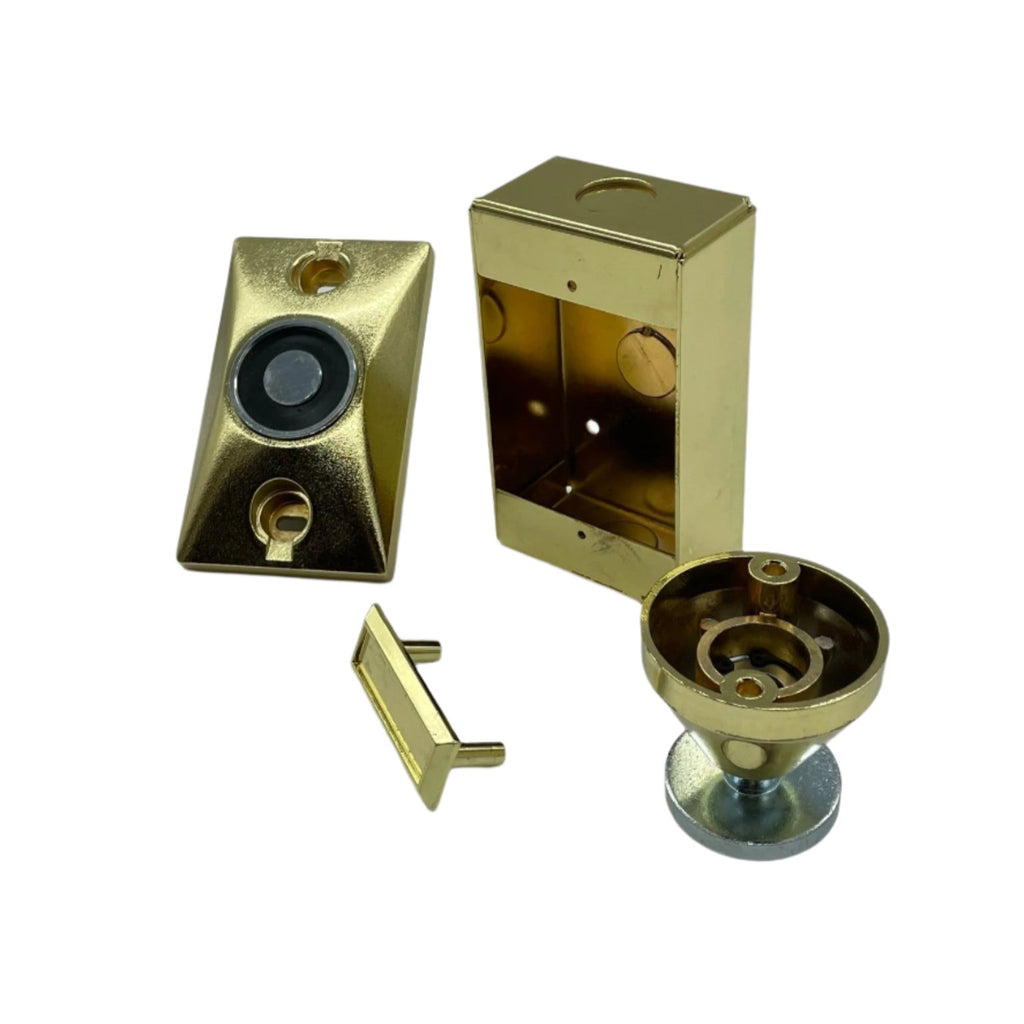

RSG DH24120SB Brass Surface Mt Door Holder
RSG DH Series electromagnetic fire door holder for 24 V AC/DC or 120 VAC, surface (wall) mount, in brass plated finish. It holds a fire or smoke door open and releases it when power is removed.
Key Features
- Die-cast metal construction
- Dual voltage AC or DC inputs
- Terminal block connections
- Low residual magnetism

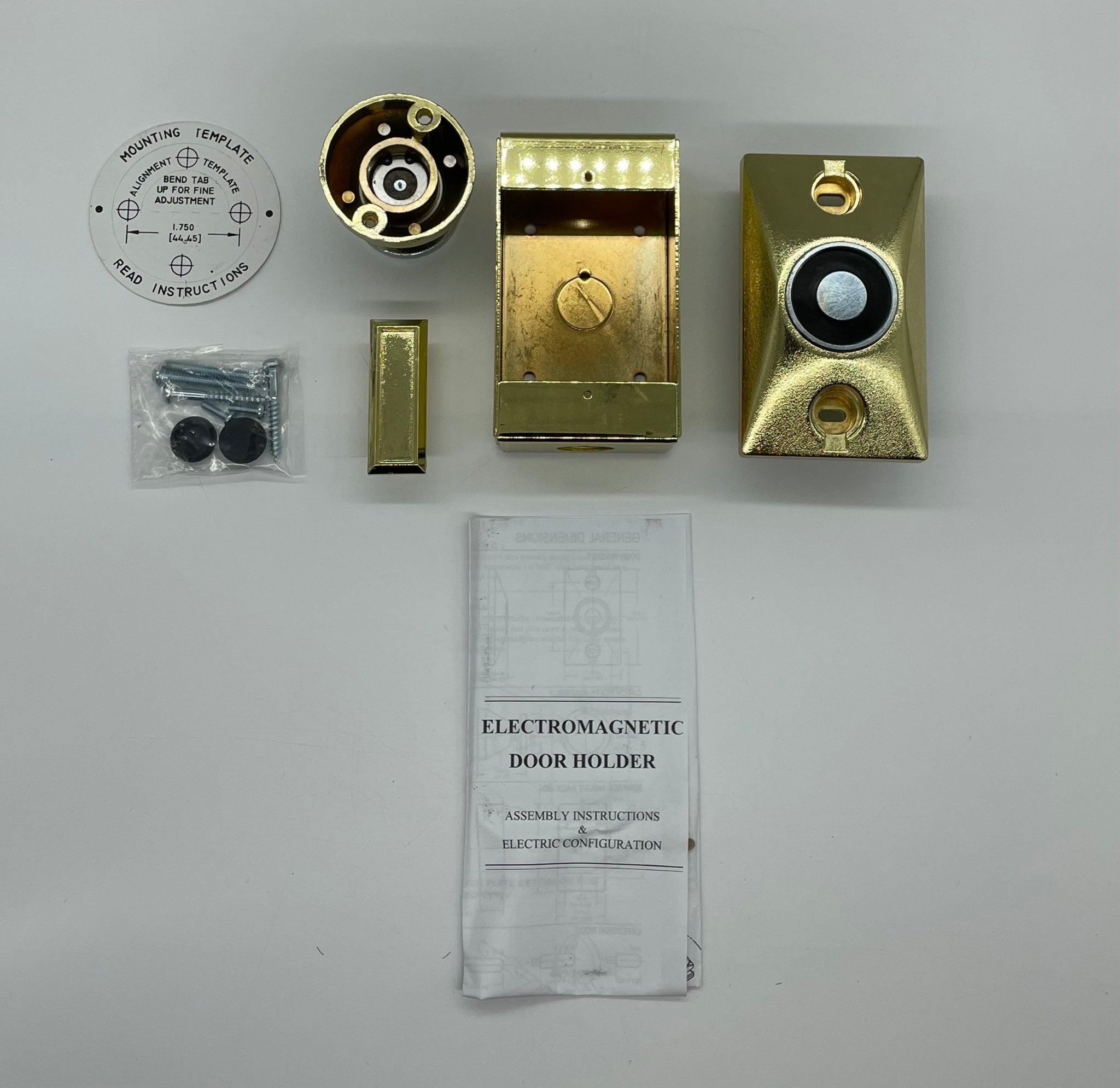

- Mounting hardware and instructions included
- Made in USA
- Surface mount
- Brass plated finish
Specifications
| Operating voltage |
24 V AC/DC or 120 VAC (dual voltage) |
| Current @ 24 V |
20 mA DC / 19 mA AC (terminals C & L) |
| Current @ 120 VAC |
20 mA (terminals C & H) |
| Holding force |
40 lb (18.1 kg) @ 24 V; 35 lb (15.8 kg) @ 120 V |
| Mounting |
Surface mount |
| Finish |
Brass plated |
| Holder plate size |
4-5/8" x 2-3/4" (117.5 x 70.0 mm) |
| High holding force option |
120 V applied to the low-voltage terminals C & L: 110 lb (49.8 kg) |
Compatible With
- RSG DHE extension rods (brass: DHE1B, DHE1.5B, DHE2B, DHE3B, DHEAB)
- RSG DHCPB catch plate
- RSG DHBBB surface back box
