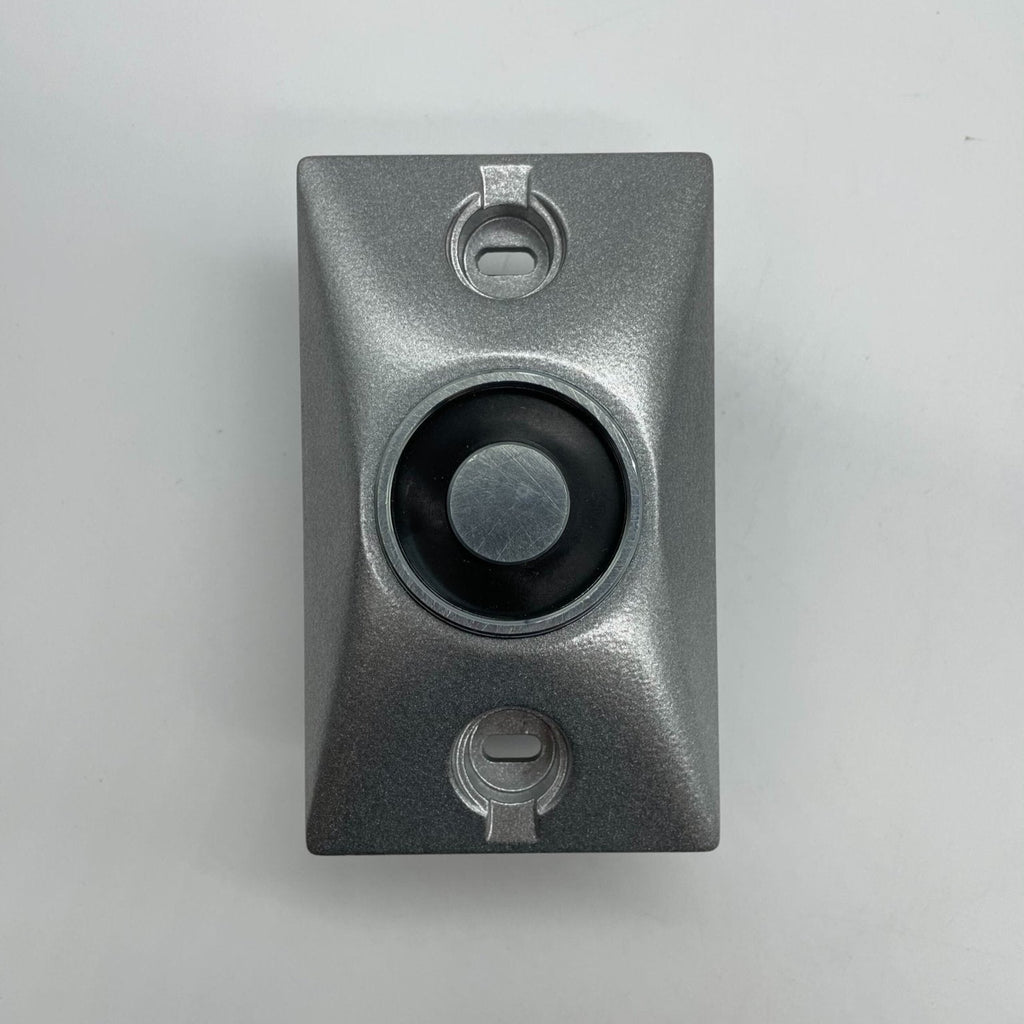

RSG DH1224SPC Magnetic Door Holder 12/24 V, Surface Mt, Chrome
RSG DH Series electromagnetic fire door holder for 12 V or 24 V AC/DC, surface (wall) mount, in powdercoat chrome finish. It holds a fire or smoke door open and releases it when power is removed.
Key Features
- Die-cast metal construction
- Dual voltage AC or DC inputs
- Terminal block connections
- Low residual magnetism

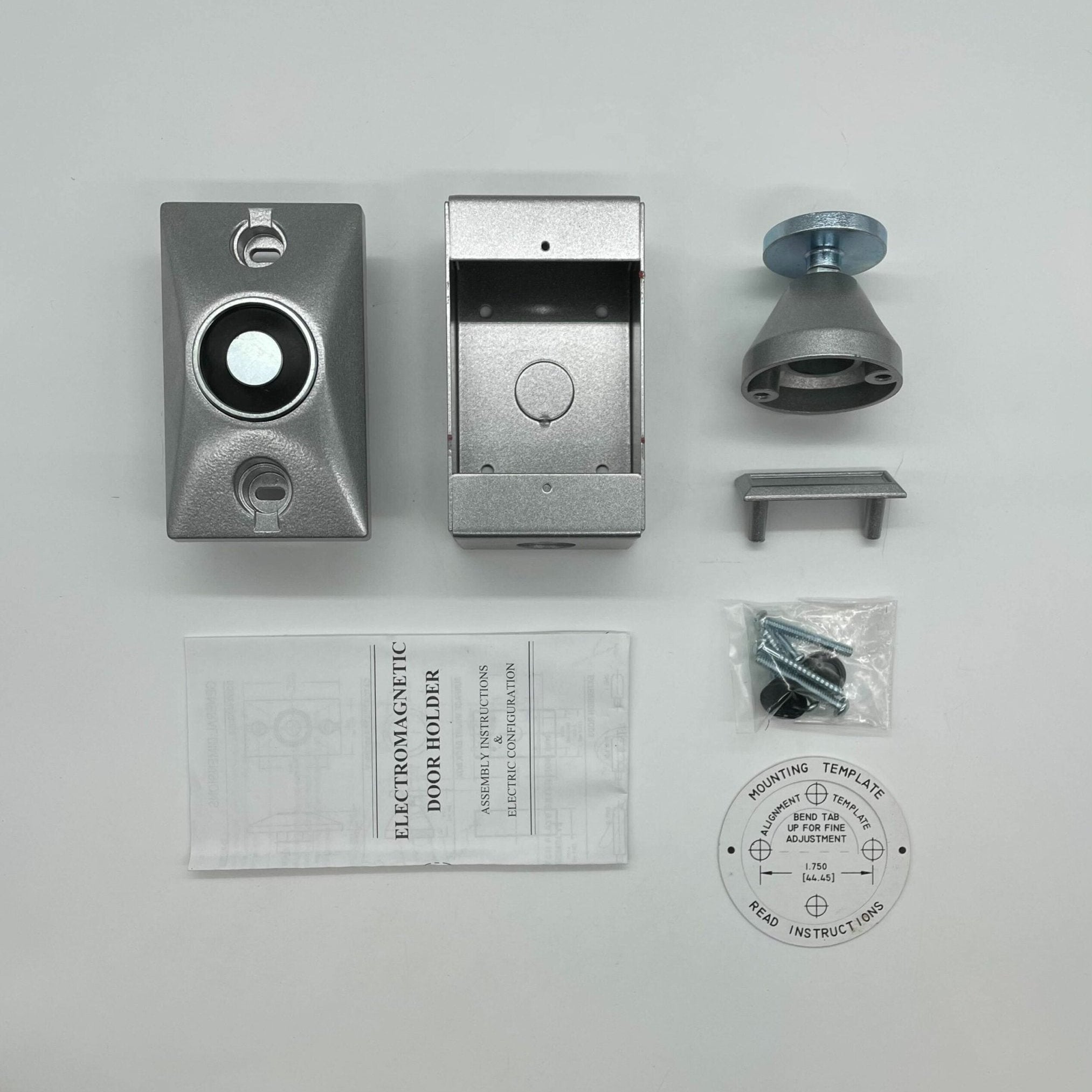

- Mounting hardware and instructions included
- Made in USA
- Surface mount
- Powdercoat chrome finish
Specifications
| Operating voltage |
12 V or 24 V AC/DC (dual voltage) |

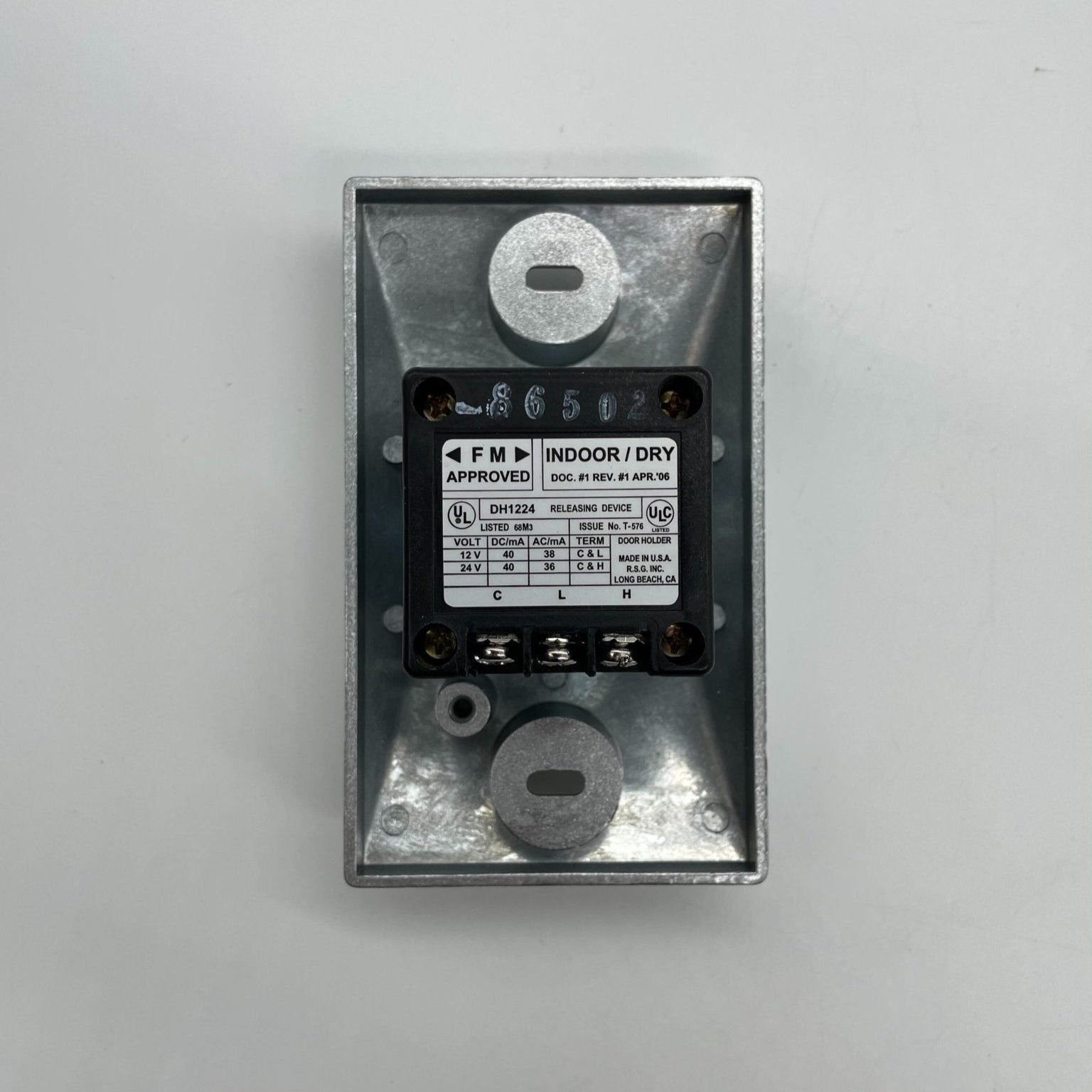

| Current @ 12 V |
40 mA DC / 38 mA AC (terminals C & L) |
| Current @ 24 V |
40 mA DC / 36 mA AC (terminals C & H) |
| Holding force |
30 lb (13.6 kg) |
| Mounting |
Surface mount |
| Finish |
Powdercoat chrome |
| Holder plate size |
4-5/8" x 2-3/4" (117.5 x 70.0 mm) |
| High holding force option |
24 V applied to low-voltage terminals C & L: 85 mA DC / 81 mA AC, 75 lb (34.0 kg) |
Compatible With
- RSG DHE extension rods
- RSG DHCPC catch plate
- RSG DHBBPC surface back box
