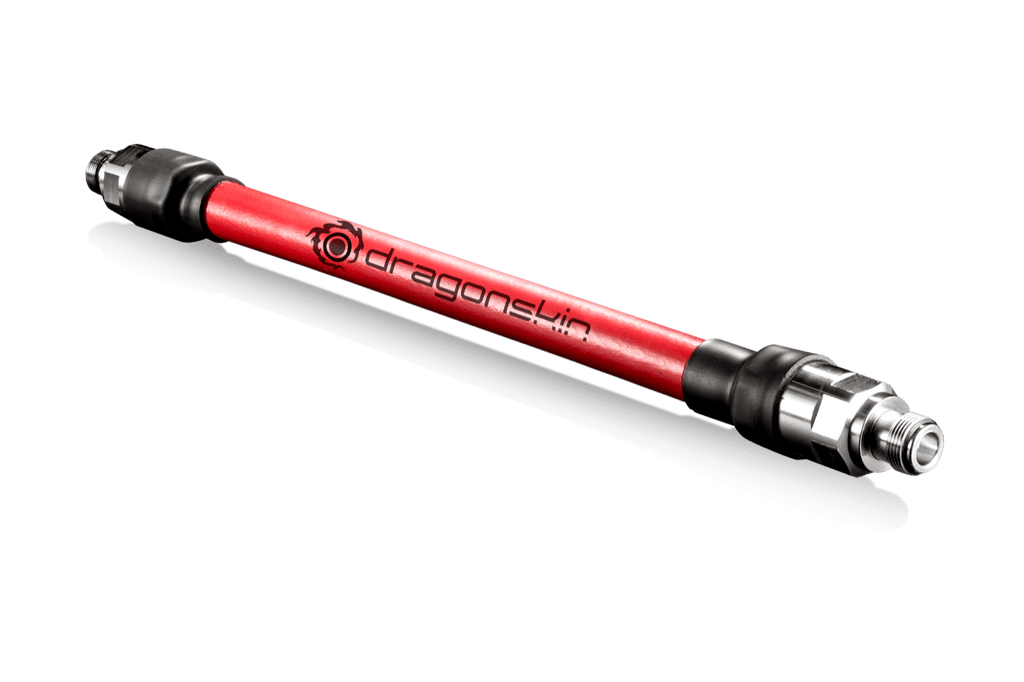

RFS Technologies 2HB12-50JPLR is DragonSkin 1/2 in. fire-resistant standalone coaxial cable, certified to UL 2196 for 2-hour circuit integrity. It keeps cellular and public safety radio communications working to and from all floors of a burning building, meeting NFPA 72 and NFPA 1221 survivability without conduit or cable wrapping.
The cable has solid inner and outer conductors, which virtually eliminate intermodulation, a red plenum-rated jacket, and uses standard RFS connectors and installation techniques. It is made in the USA.
Specifications
| Size |
1/2 in., air-dielectric, corrugated |
| Inner conductor |
Copper wire, 4.8 mm (0.19 in.) |
| Outer conductor |
Corrugated copper, 13.8 mm (0.54 in.) |
| Jacket |
PVC, plenum rated, red; 18 mm (0.71 in.) |
| Impedance |
50 ±2 ohm |
| Maximum frequency |
1 GHz |
| Velocity |
85% |
| Peak power |
40 kW |
| Return loss (VSWR) |
14 dB (1.5) at 10-1000 MHz |
| Minimum bend radius |
178 mm (7 in.) single; 254 mm (10 in.) repeated |
| Weight |
0.51 kg/m (0.34 lb/ft) |
| Fire performance |
UL 2196 (2 hours), CATVP, NFPA 262, UL System FHIT 1250 |
| Installation temperature |
-4°F to 140°F (-20°C to 60°C) |
Installation notes
- Use standard RFS Technologies connectors
- Maintain the minimum bending radius at all times
- Recommended clamp spacing 0.61 m (2 ft)
FAQ
Does DragonSkin need conduit or wrapping?
No. It is a standalone coaxial cable certified to UL 2196 for 2 hours, surviving temperatures up to 1,850°F and the water spray test without conduit or additional wrapping.
Which codes does it meet?
NFPA 72 and NFPA 1221 survivability for in-building emergency responder communications. It is CATVP plenum certified (NFPA 262).
What connectors are used?
Standard RFS Technologies connectors and installation techniques; no special parts are needed.
What is the minimum bend radius?
7 in. (178 mm) for a single bend and 10 in. (254 mm) for repeated bends.
