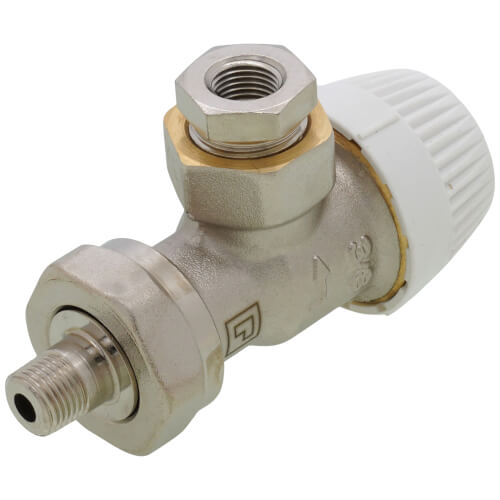

Honeywell Home V2042HSL10 1/8" One-Pipe Steam Thermostatic Radiator Valve
One-Pipe Steam Thermostatic Radiator Valves - Allow automatic temperature control in one-pipe steam or hot water systems for free standing radiators, convectors and other heating units with standard capacity requirements. Provide comfort and energy savings.
Product Features:
- Continually monitors and adjusts room temperature for consistent comfort and relief from under-heating and overheating.
- Adjustable balancing cartridge design made from resilient material (EPDM), ensures tight shut-off on steam and hot water systems.
- Nickel plated brass casted body.
- Replaceable cartridge for easy service with service tool.
- Used with T100 set point and capillary actuators.
- No electrical connection required for non-electric actuators.
- Normally open without control mounted.
- Product Specifications:
Description: 1/8 in. One-pipe Steam Radiator valve
Application Type : Angle pattern valve body for one pipe steam systems
Pipe Size (inch): 1/8 in.
Pipe Size (DN): 1/8
Body Pattern: Angle
Capacity: standard
Connection Type: Threaded
Pressure Ratings (Steam (psi)): 15 psi maximum
Pressure Ratings (Steam (kPa)): 103 kPa
Differential Pressure Ratings (psi): With T100 or T200: 15 psi
Differential Pressure Ratings (psi): With MV100: 36 psi
Differential Pressure Ratings (psi): For low noise: 3 psi
Temperature Ratings (F): 248 F Maximum
Temperature Ratings (C): 120 C Maximum
Dimensions (in.): 1- 3/16 in. x 1- 11/16 in.
Materials (Body): Nickel Plated Bronze
Cartridge Change Tool: Yes - Use VA8200A001
Used With: T100
Inlet Connection Size (in.): 1/8 in.
Inlet Connection Type: NPT
Outlet Connection Type: Threaded
