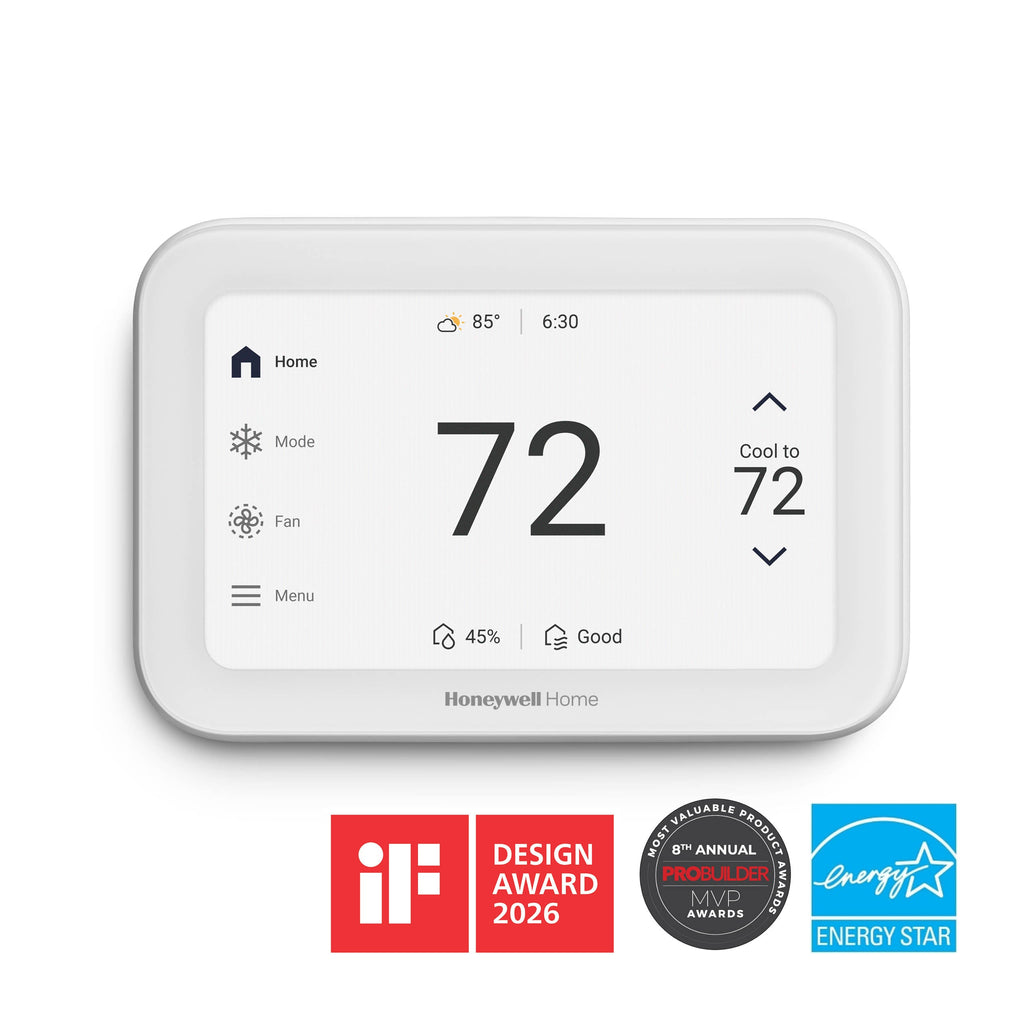

ElitePRO S1200 Smart Thermostat with Redlink 3.0. White
The Resideo ElitePRO S1200 is a hardwired Wi-Fi smart thermostat with a 5 in. touchscreen for residential and light commercial 24 VAC systems, up to 4 heat / 2 cool heat pump or 3 heat / 3 cool conventional. It monitors indoor humidity, VOC and estimated CO2, can control up to two IAQ devices, and streams video from First Alert and Ring doorbells. RedLINK 3.0 links it wirelessly to room sensors, outdoor sensors and the equipment interface module.
Key Features
- Works with systems up to 4H/2C heat pump or 3H/3C conventional; dual fuel, fan-coil, PTAC and radiant compatible
- Monitors indoor humidity, VOC and estimated CO2; controls up to 2 IAQ devices with configurable outputs (additional equipment may be required)
- Streams video from First Alert and Ring doorbells
- RedLINK 3.0 wireless link to room sensors, EIM and outdoor sensors (sold separately)
- Onboard radar occupancy sensing for auto-away energy savings
- Requires a C-wire (hardwired power)
- 5-year warranty
Specifications
| Application |
Residential or light commercial, 24 Vac systems; Gas, Oil, Electric Warm Air, Hydronic, Fan coil unit, PTAC. IAQ control. |
| Stages |
Up to 4H/2C Heat Pump or 3H/3C Conventional |
| Display Size |
5 in diagonal |
| Display Language |
Display selectable for English, French, or Spanish |
| Energy Star Certified |
Yes |
| Power Supply |
Hardwired, C-Wire required |
| Warranty |
5 Years |
| Includes |
ElitePRO™ S1200 Smart Thermostat in White, UWP® Wall Plate, Cover Plate with J-Box Adapter, Hardware, Literature |
| For Use With |
C7189R3010-2 room sensor |
| WiFi |
Yes |
| RedLINK |
Yes, 3.0 |
| Color |
White |
| Ambient Operating Temperature (Max) |
102 °F, 38.9 °C |
| Ambient Operating Temperature (Min) |
37 °F, 2.8 °C |
Compatible With
- 24 VAC residential and light commercial HVAC systems
- C7189R3010-2 RedLINK room sensor
- ElitePRO Equipment Interface Module (EIM)
- First Alert VX1 and Ring video doorbells
