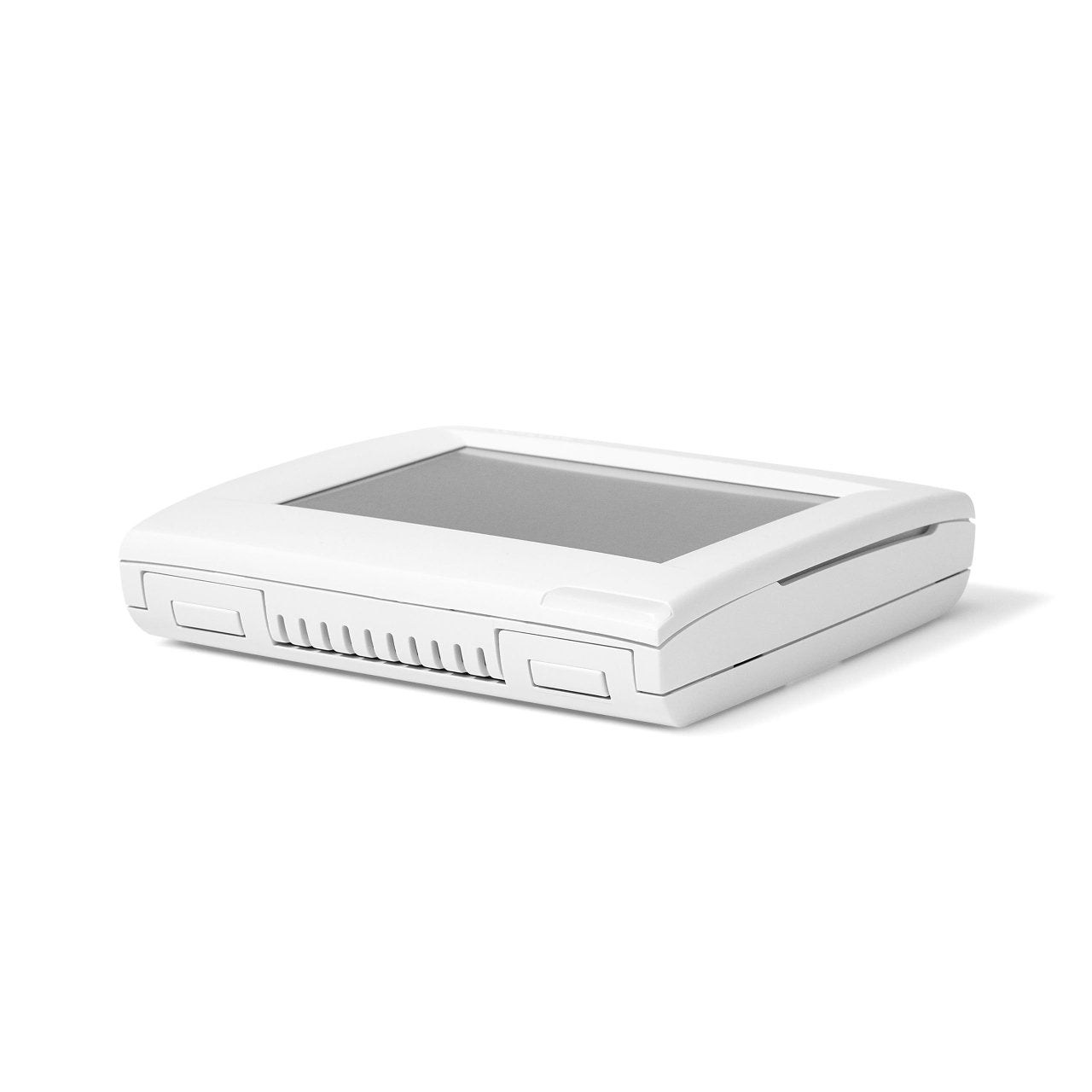

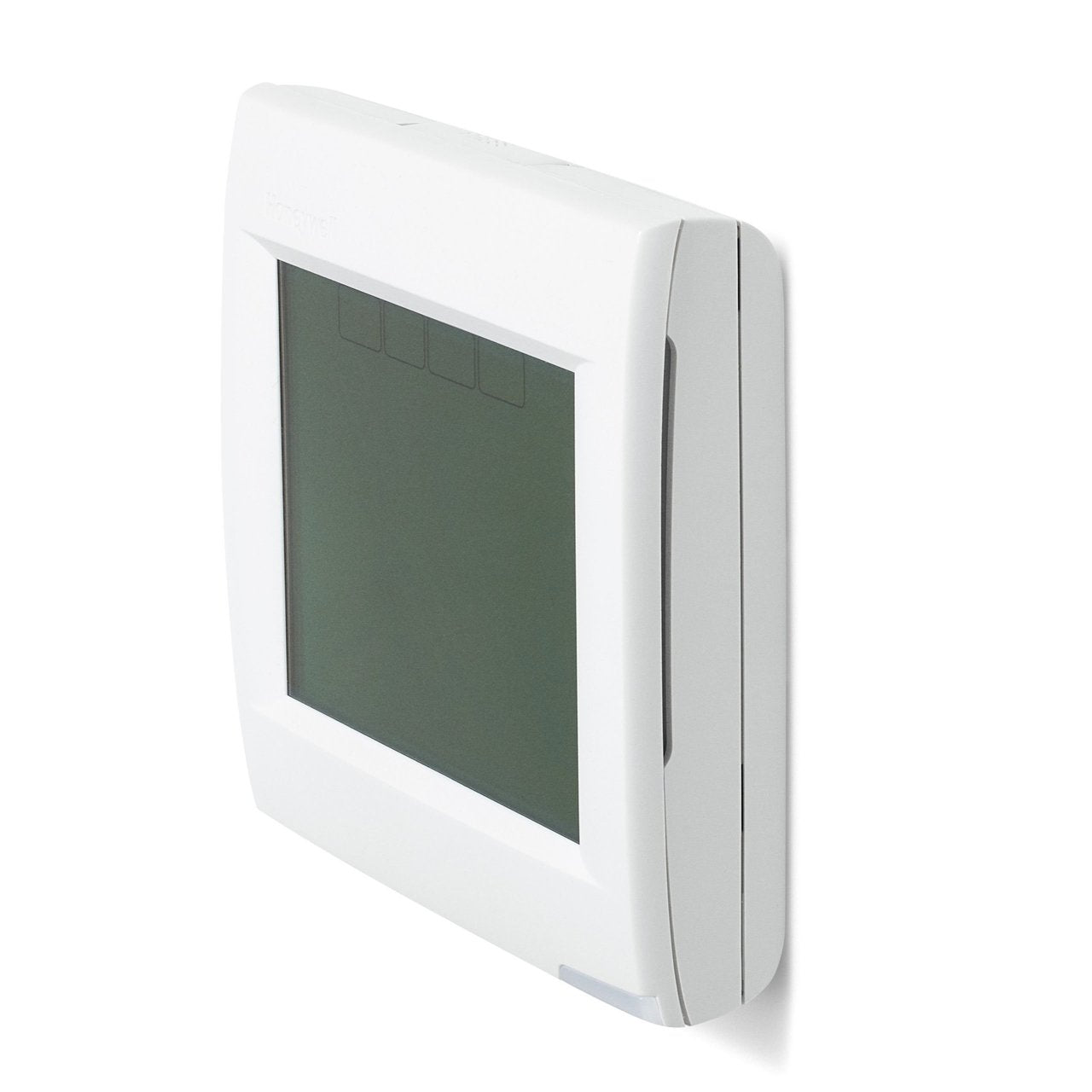

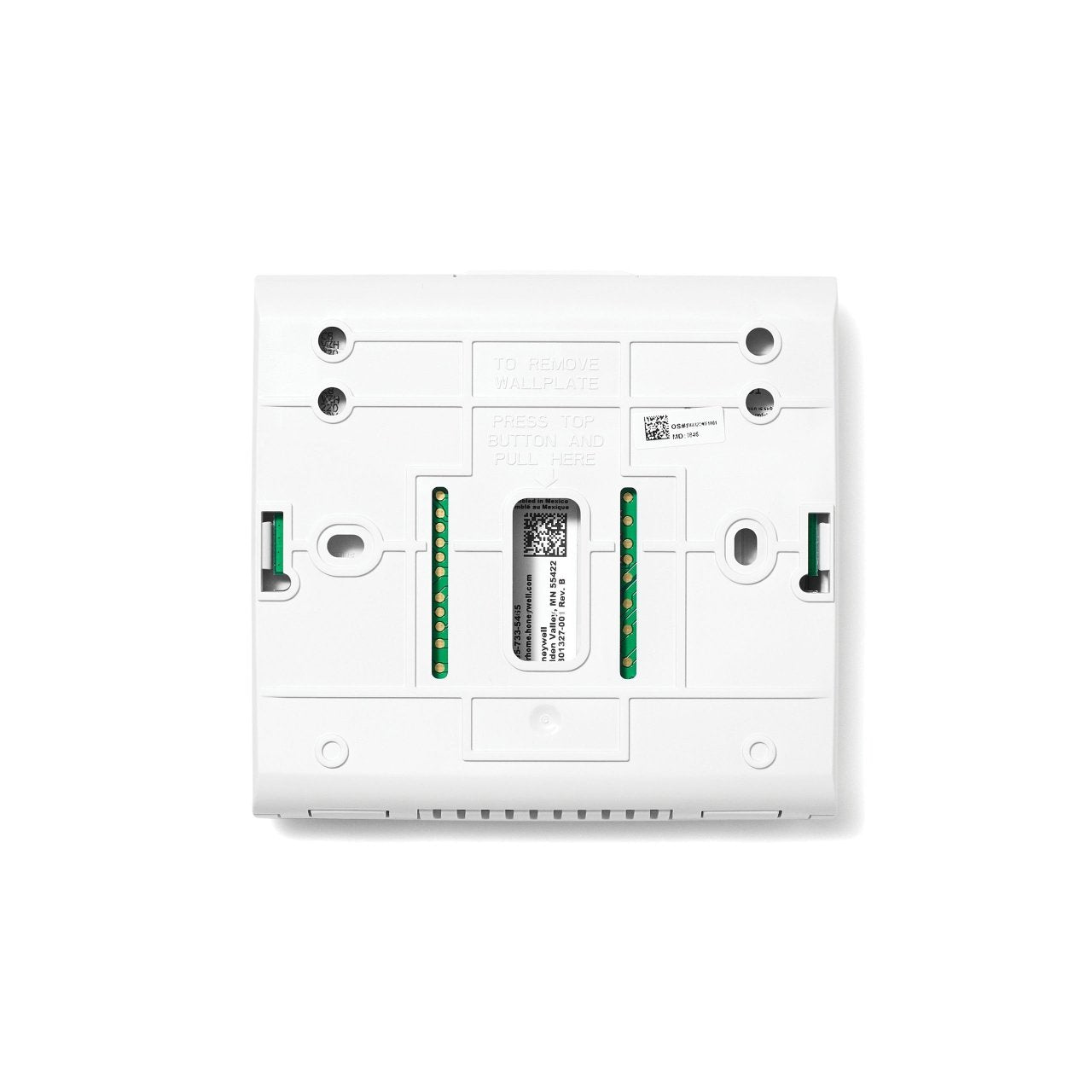

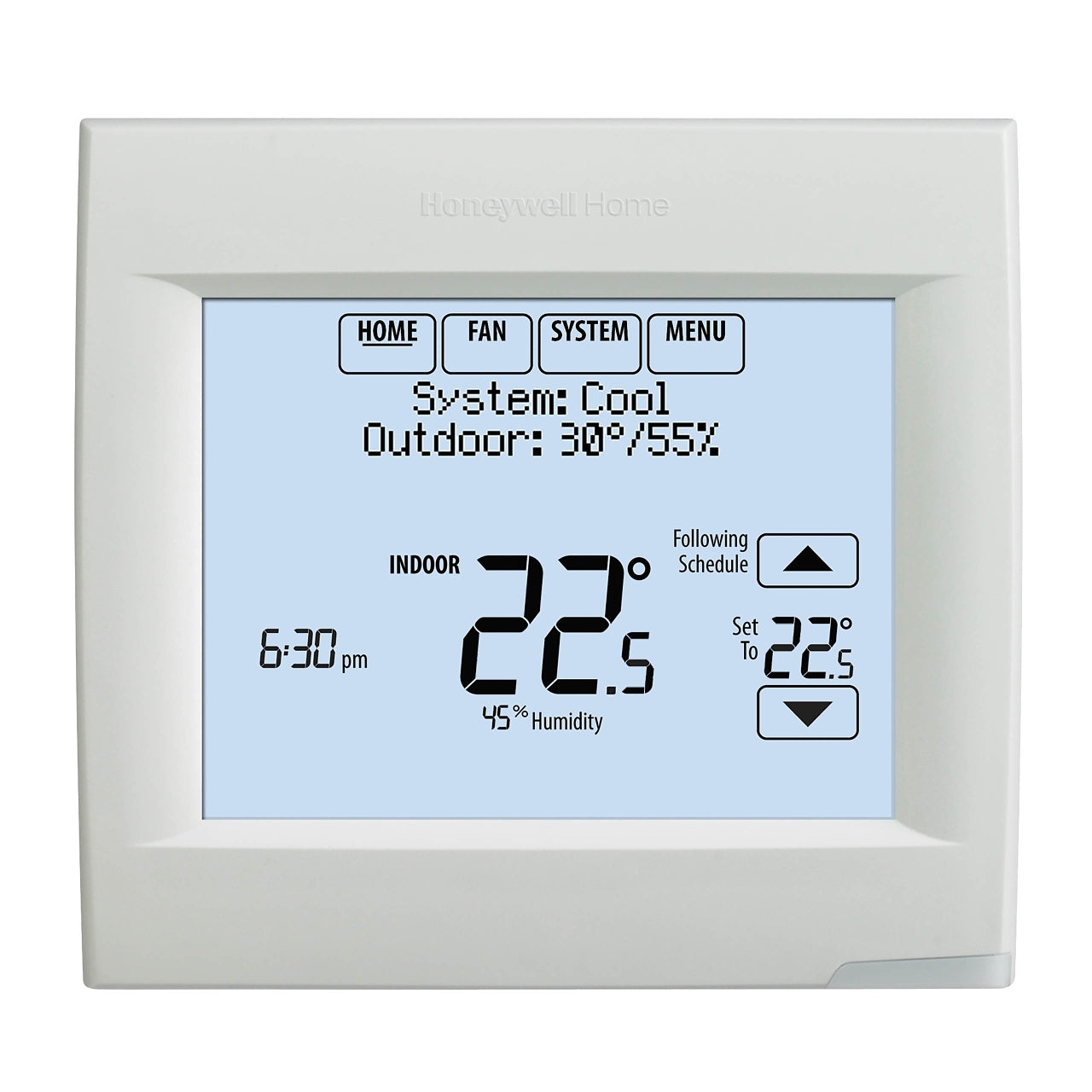

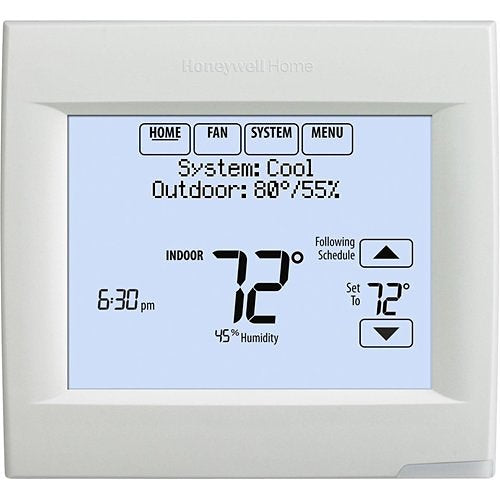

Honeywell Home TH8321WF1001/U — VisionPRO 8000 seven-day programmable touchscreen thermostat with built-in Wi-Fi, for residential or light commercial HVAC.
This is a heating and air-conditioning control, not a fire alarm device. Wi-Fi is on board, so no gateway or receiver is needed. The same thermostat is selectable for residential or commercial use at installer setup, where commercial adds 365-day holiday scheduling.
- Up to 3 heat / 2 cool on heat pump, or up to 2 heat / 2 cool conventional
- Powered from the common wire; 18 to 30 VAC and 750 mVDC at W-O/B
- One dry-contact pair (U1) for a humidifier, dehumidifier or ventilator
- S1 terminals take an indoor, outdoor or discharge air sensor
- On-board humidity sensor; humidify 10 to 60% RH, dehumidify 40 to 80% RH
- Setpoints 40 to 90°F heating and 50 to 99°F cooling
- 4-15/16" × 4-5/8" × 1-1/8"; fits a horizontal 2 × 4 in. box
Resideo now also brands this model VisionPRO 8000 Smart. Do not substitute the TH8321R1001/U, the RedLINK wireless version, which needs RedLINK accessories or a gateway, or the TH8321U1006, the non-connected universal model.
