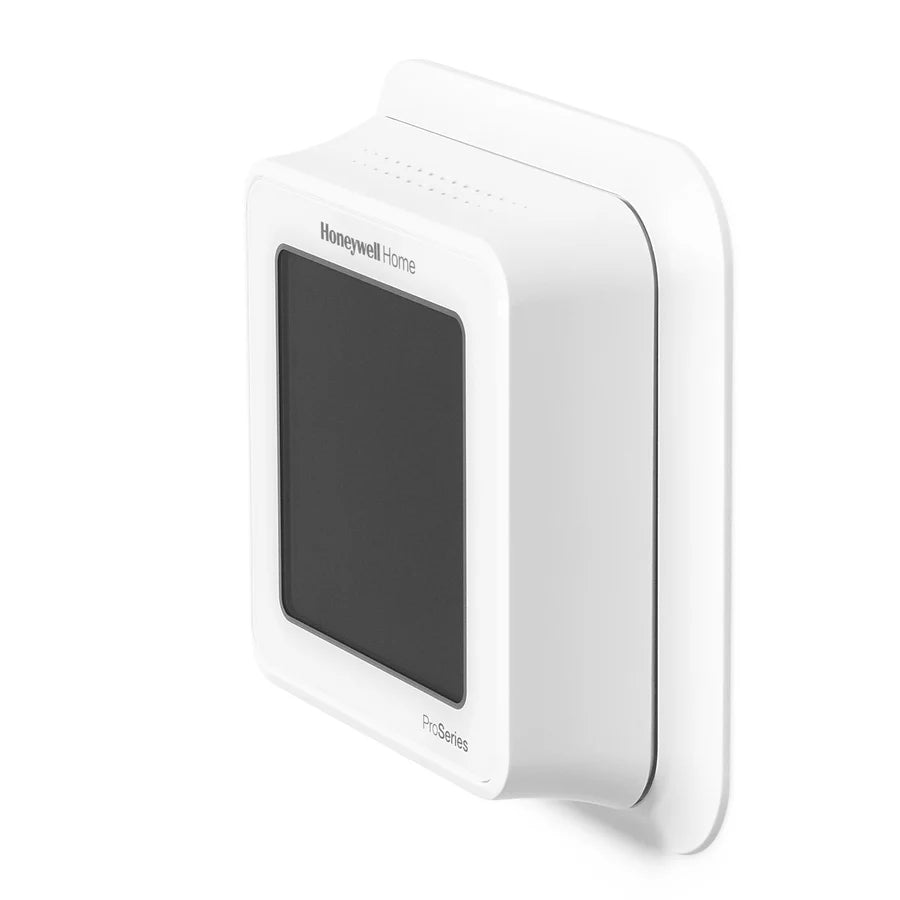

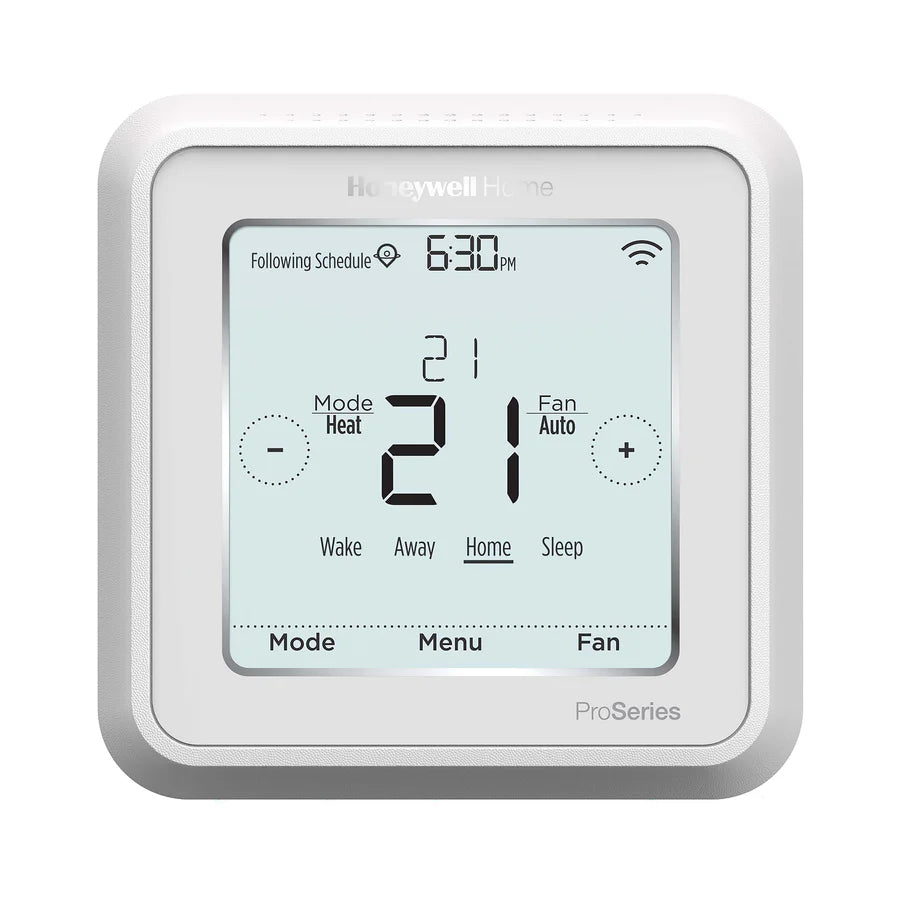

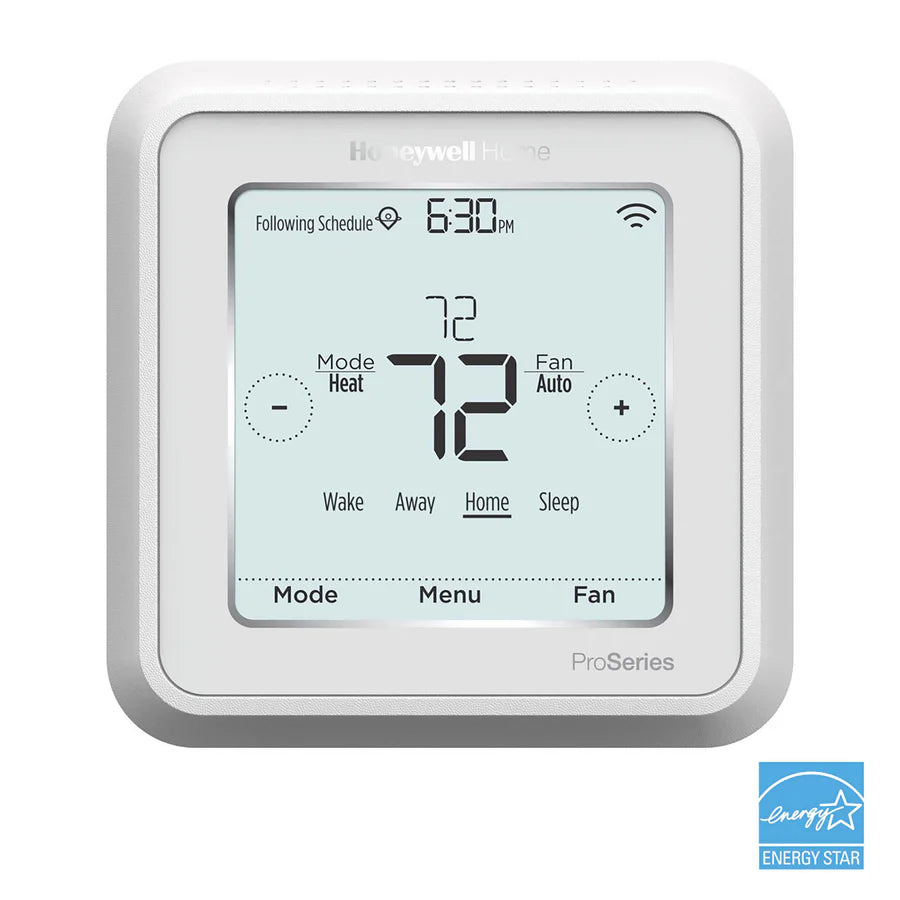

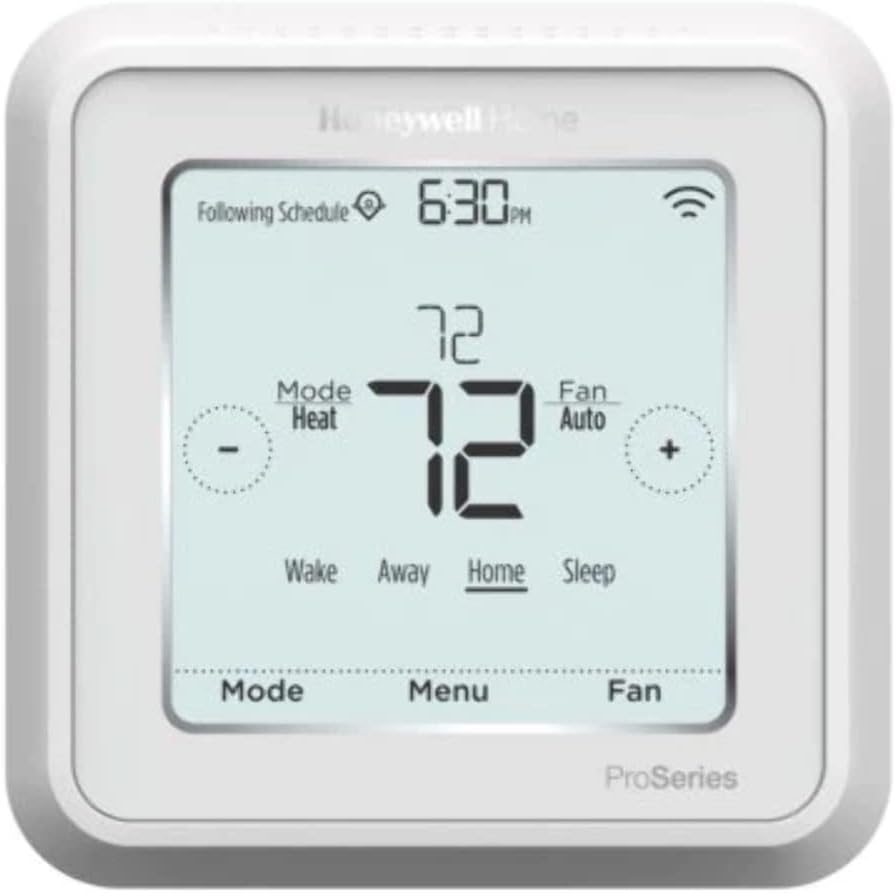

Honeywell Home TH6320WF2003/U — T6 Pro Smart programmable Wi-Fi thermostat for up to 3 heat / 2 cool heat pump or 2 heat / 2 cool conventional systems.
It replaces a conventional wall thermostat and adds schedule and setpoint control from a phone or computer once joined to a wireless network. Dual fuel and auxiliary heat lockout run from either a wired outdoor sensor or internet weather, and the U terminal drives an ERV, HRV or fresh air damper.
- Heating setpoint 40 to 90 °F (4.5 to 32 °C); cooling setpoint 50 to 99 °F (10 to 37 °C)
- Operating ambient 37 to 102 °F (2.8 to 38.9 °C), 5 to 90 percent RH non-condensing
- Sensor accuracy within 1.5 °F at 70 °F (0.85 °C at 21.0 °C)
- 24 VAC to Rc and C, no batteries; 1.0 VA typical, 1.5 VA maximum
- 2.4 GHz 802.11 b/g/n; 4-1/16" H × 4-1/16" W × 1-5/32" D (103.5 × 103.5 × 29 mm), white
The companion on the same submittal is TH6220WF2006, which covers only 2H/1C heat pump systems and has no U terminal or ventilation control. The UWP wall plate is packed in; C7089U1006 outdoor and C7189U1005 indoor sensors are ordered separately.
Documents
FAQ
Does it need a common (C) wire?
It is powered from 24 VAC on Rc and C and has no batteries. If there is no fifth wire for a common, the K terminal is used with a C-wire adapter in place of the Y and G terminals.
What systems does it control?
Up to 3 heat / 2 cool heat pump systems or 2 heat / 2 cool conventional systems.
Is a wall plate included?
Yes. The UWP wall plate is included in the package.
Can an outdoor sensor be connected?
Yes. The S/S input accepts a wired indoor or outdoor sensor, such as the C7089U1006 outdoor sensor, ordered separately.
