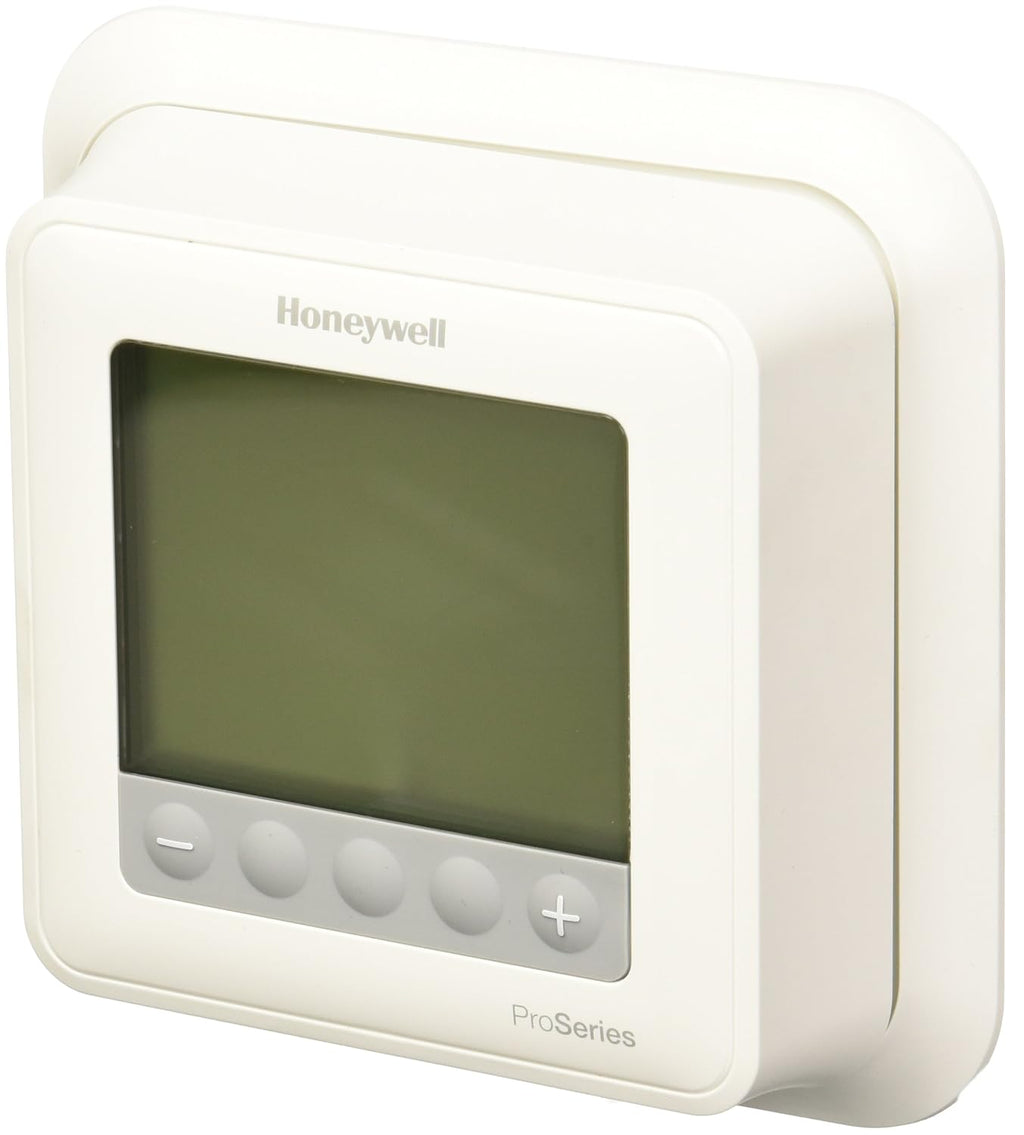

Honeywell Home TH6320U2008/U is the T6 Pro programmable thermostat for systems up to 3 heat/2 cool. It can be set up for 7-day, 5-2, 5-1-1 or non-programmable schedules from an on-screen installer menu, and it mounts on the UWP mounting system.
Features
- Handles conventional forced air and hydronic systems and heat pump systems, including 2H/2C heat pump (TH6320U only)
- Inputs for wired indoor or outdoor sensors (TH6320U and TH6220U)
- L/A heat pump fault input (common wire required for L/A)
- UWP mounting system and decorative cover plate
Specifications
| Package includes |
T6 Pro thermostat, UWP mounting system, decorative cover plate, screws and anchors, 2 AA batteries |
| Thermostat wire |
18 to 22 gauge; shielded cable not required |
Related models
- TH6220U2000/U: up to 2 heat/2 cool
- TH6210U2001/U: up to 2 heat/1 cool
- C7089U1006/U wired outdoor sensor; C7189U1005/U wired indoor sensor
Documents
FAQ
What systems does the TH6320U2008 control?
Up to 3 heat/2 cool, covering conventional forced air, hydronic and heat pump systems.
What comes in the box?
The thermostat, UWP mounting system, decorative cover plate, screws and anchors, and 2 AA batteries.
Can it use remote sensors?
Yes. The TH6320U accepts wired indoor or outdoor sensors.
What wire should be used?
18 to 22 gauge thermostat wire; shielded cable is not required.
