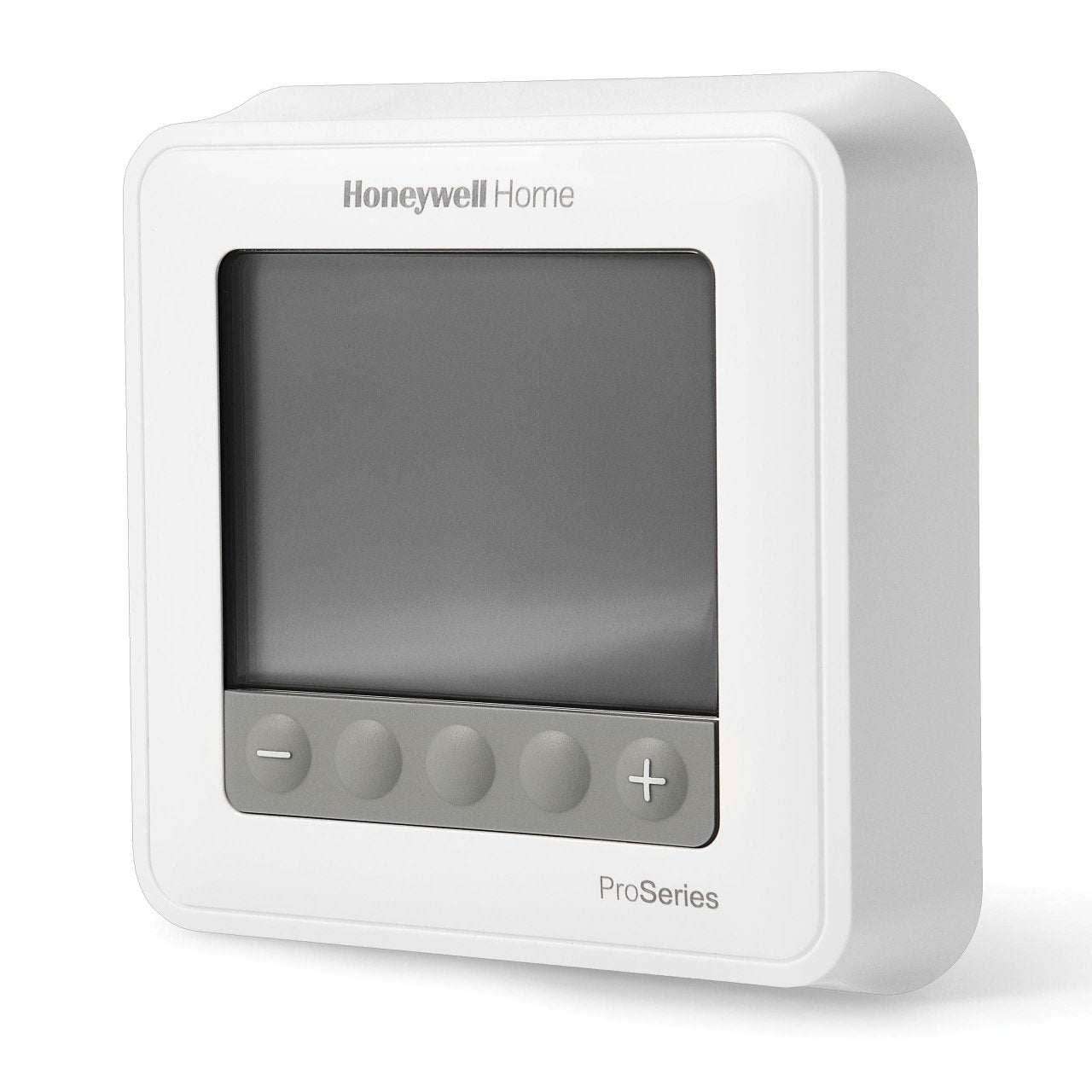

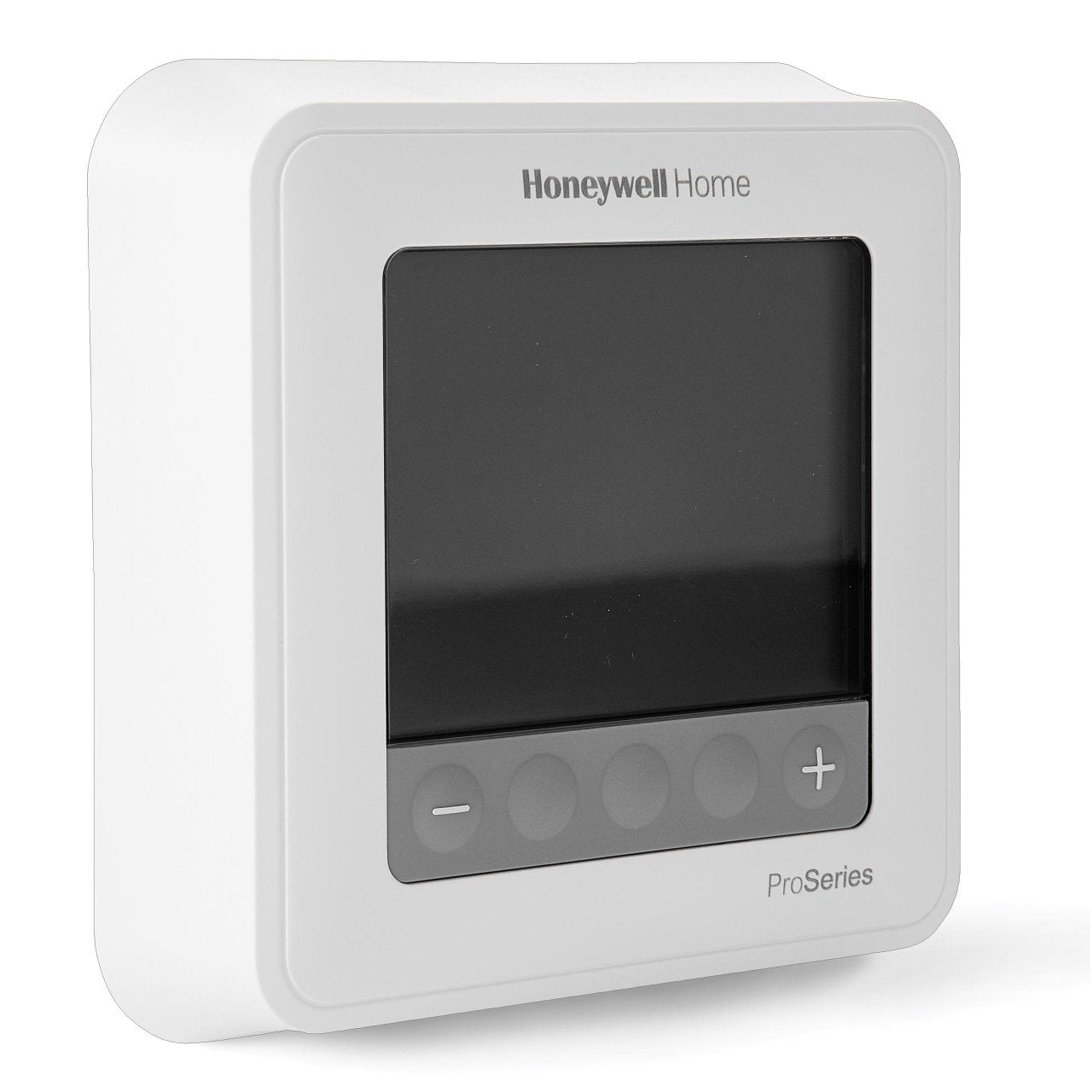

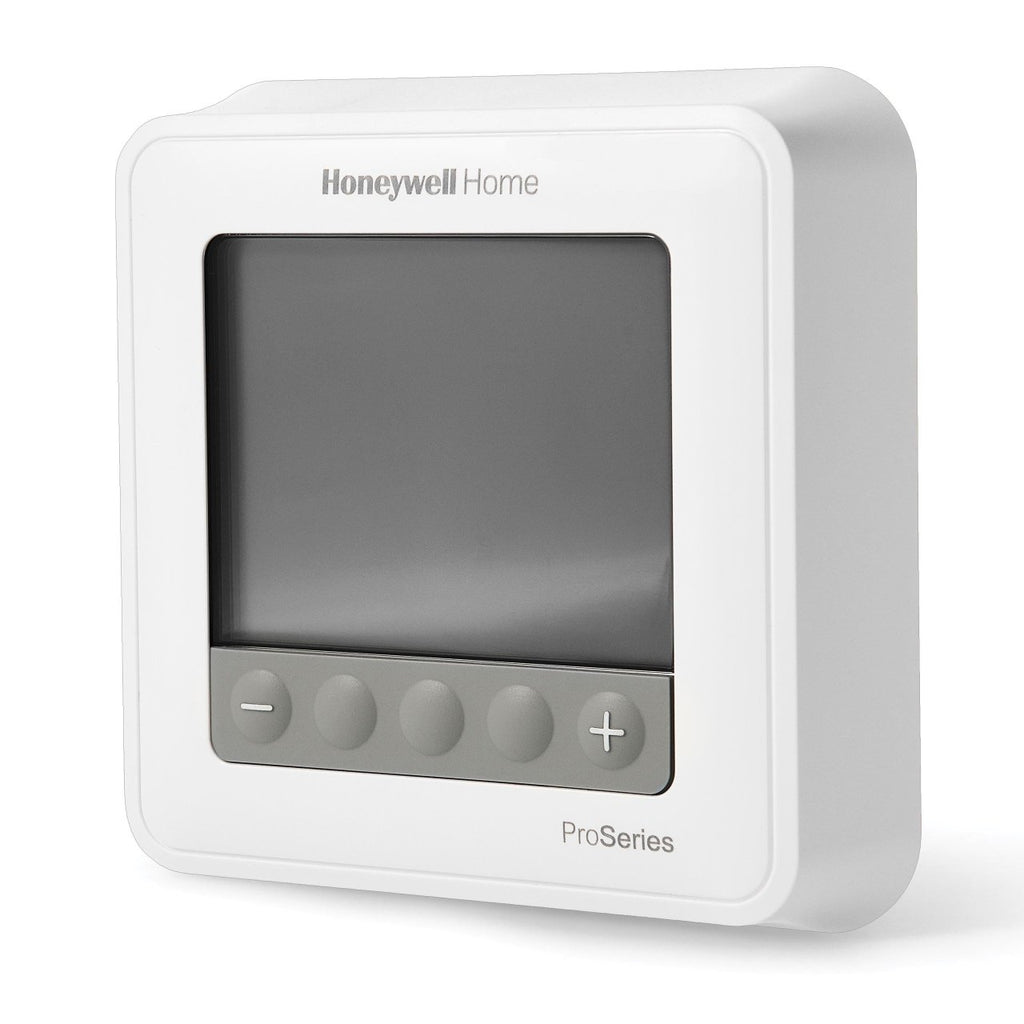

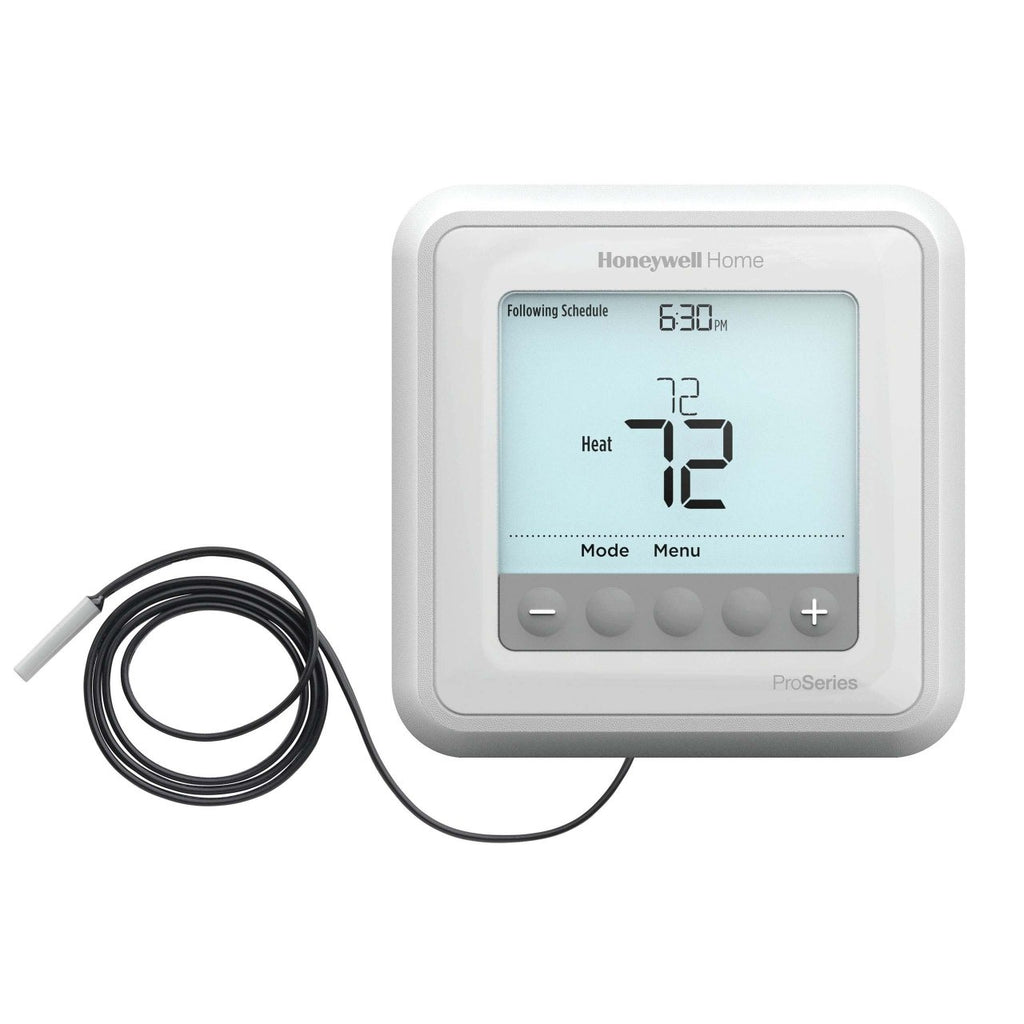

Honeywell Home TH6100AF2004/U — T6 Pro Hydronic programmable thermostat for single stage hot water heat only systems, supplied with its floor sensor.
Three control modes are documented. A mode controls ambient air only; F mode controls floor temperature only through the external sensor; and AF mode controls the air while holding the floor between set limits, which protects the floor covering. The AF in the catalogue number is that third mode.
- AQ12C20 floor sensor included, 180 in. lead, 10 kΩ NTC thermistor at 25 °C
- Terminals R, RC, C, W, S and S; W heating 18–30 Vac at 0.02–1.0 A
- Two AA alkaline cells and/or a C-wire at 18–30 VAC
- Schedules of 7-day, 5-1-1, 5-2 or non-programmable
- Floor limits adjustable 40–89 °F minimum and 50–99 °F maximum
- Accuracy within 1.5 °F at 70 °F; operates to 102 °F
- 4-1/16 × 4-1/16 × 1-5/32 in., white

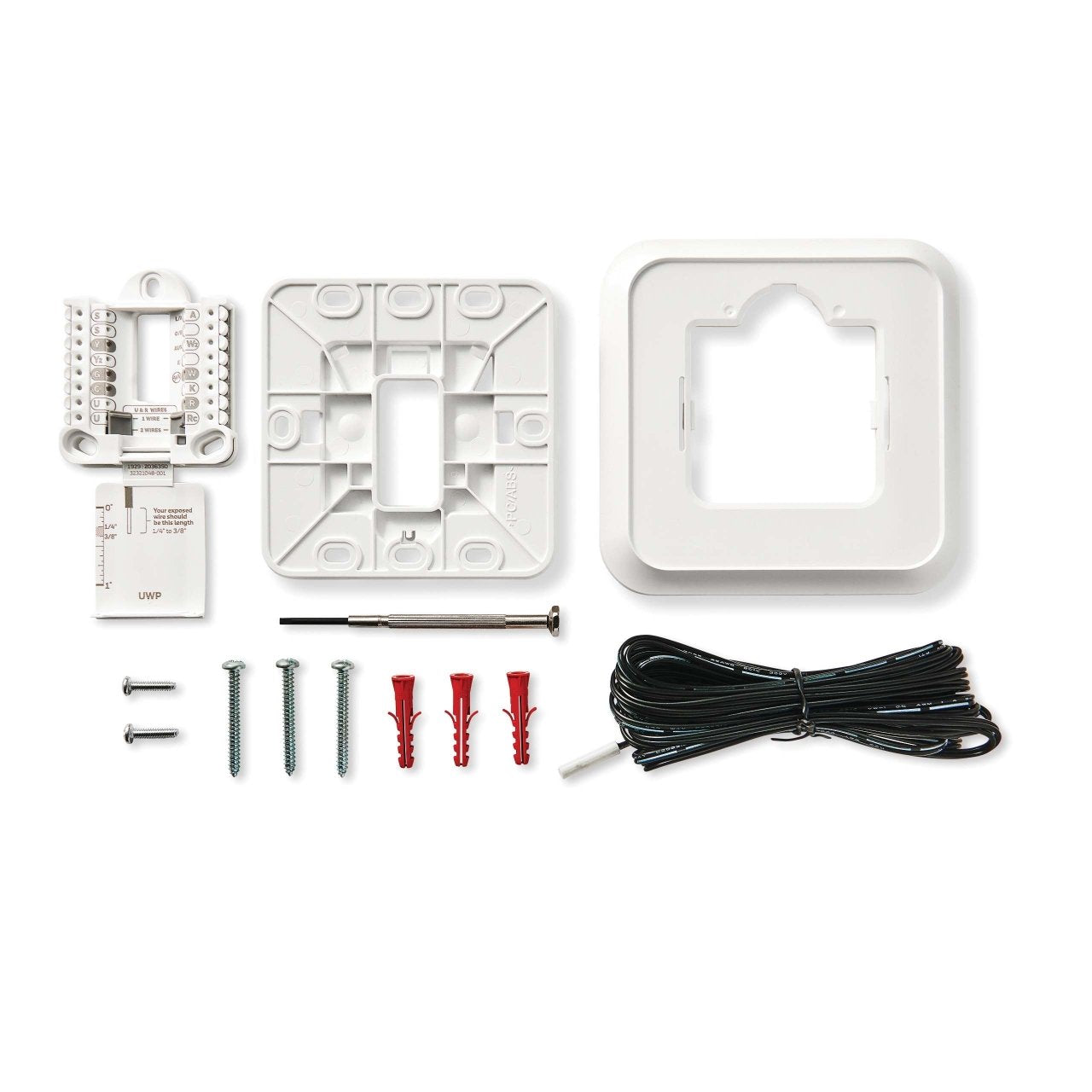

Resideo states that no additional parts are needed before installing: the UWP mounting system and a cover plate are both in the box. The optional C7189U1005 indoor air sensor cannot be used if the floor sensor is used, so it is an alternative and not an addition.
