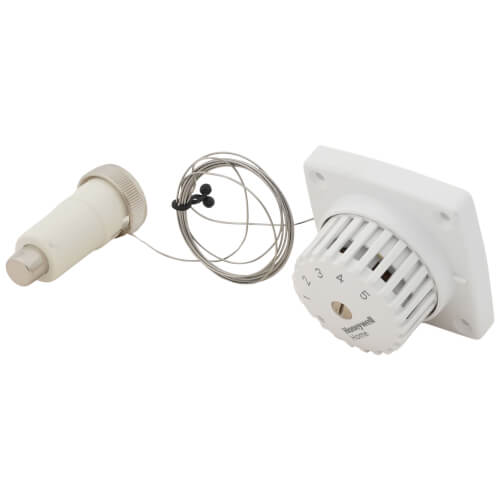

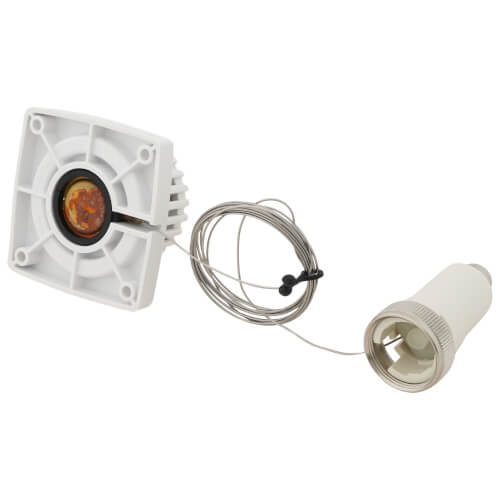

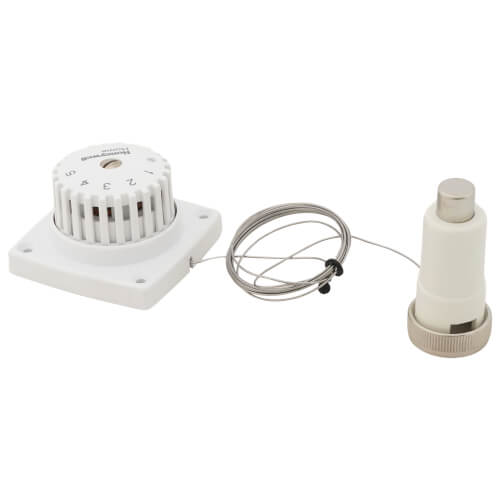

Honeywell Home T100B1035 Remote Setpoint and Sensor for V100 and V2000 Series Radiator Valves
Used with valves V100, V2000. May also be used with MV100 Electric Zone Valve Actuator.
Allow automatic temperature control in two-pipe steam or hot water systems for free standing radiators, convectors, and other heating units with standard capacity requirements. Provide comfort and energy savings at affordable prices.
Product Features:
- Continually monitors and adjusts room temperature for consistent comfort and relief from under-heating and overheating.
- Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems.
- Nickel plated brass casted body with working parts in cartridge insert for ease of service.
- Controls include sensor, setpoint dial and valve actuator; components may be integral or connected by capillary tubes.
- Require no electrical connections.
- All working parts are replaceable using service tool (MT100C1016) while valve remains in service, in-line, under pressure.
- Valves normally open without control mounted.
Product Specifications:
- Description: Thermostatic Radiator Actuator with remote sensor, 6ft capillary and 1-3/16 in. collar diameter
Application Type : A control with combined remote setpoint and sensor mounted on wall. Connected by a capillary tube to an actuator, which is mounted on the valve body. For V100 valves.
Application: Standard Capacity Thermostatic Radiator Actuator
Sensor (integral or remote): Integral
Setpoint (Integral or Remote): Remote
Capillary Length (ft): 6-1/2 ft. or 16 ft.
Temperature Range: 48 F to 79 F
Collar Diameter: 1-3/16 in.
Replaces: American Steam - 02-300-00. Taco - 5206. Danfoss RA2000 - 013G8262. Ammark - 76. TM Macon - TML B42000. NT Macon - NTL B45000. (in combination with V100)
