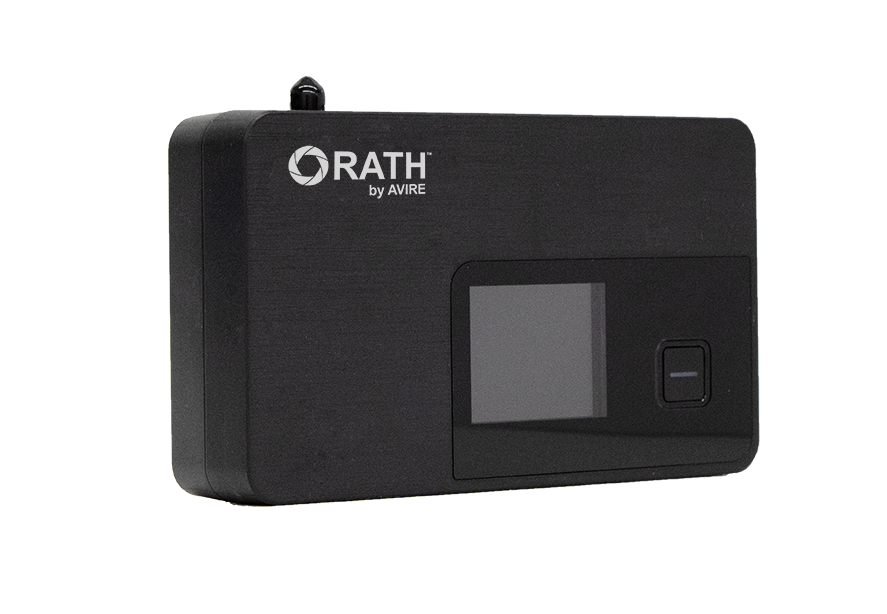

RATH by AVIRE 8100-V4G — all-in-one cellular gateway carrying two analog telephone lines and Internet data over a single LTE SIM.
Elevator and area-of-refuge phones need a supervised line to a monitoring centre, and copper POTS service is being withdrawn. This gateway stands in for it, handing analog voice to the cellular network while Ethernet carries data.
- LTE Cat-4 at 150 Mb/s; 4G LTE bands 2, 4, 5, 12, 13, 14, 66 and 71; 3G bands 2, 4 and 5
- Two RJ11 voice ports, one RJ45 Ethernet port, one SMA connector, one USB Type-C; 4FF nano SIM
- HD Voice, VoLTE, E911, TTY, GPS, IPv4 and IPv6; two internal LTE antennas plus a GNSS antenna
- 2500 mAh NiMH pack, 35 hours standby and four hours of backup; supply included, 110 to 240 VAC in, 5 V 2 A out
- 3.14 " H × 5.30 " W × 1.26 " D, 0.55 lb, surface mount, -4 to 140 °F
- ASME A17.1 2019 / CSA B44-19, IBC 2018, FCC, ISED, ADA, NFPA 72, UL
The 8100-V4GS matches this unit on every published figure; what differs is the service bundle. AVIRE states the V4GS requires the 8100-12VDS prepaid SIM, while a V4G bought without an AVIRE SIM takes a separate Verizon SIM.
