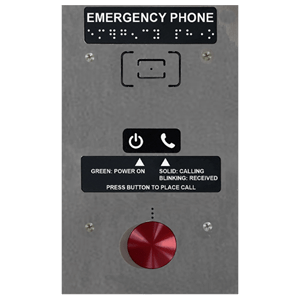

Rath 3300FSN — flush-mount stainless steel emergency call box for the addressable SmartCommand two-way communication system.
Codes require two-way voice communication at areas of refuge, stair landings and elevator lobbies so that someone unable to use the stairs can reach a responder. This is the flush version, recessed so only the faceplate shows. It is hands-free, carries a braille label and an emergency button over an inch across.
- Stainless steel faceplate 8.66 in. H × 5.12 in. W × 0.48 in. D; weight 1.16 lb.
- Requires the RP7700504 back box, 18 gauge galvanised steel, 7.75 × 3.77 × 2.63 in.
- Daisy-chain wiring in 18/4 CIC cable to a 4-pin 5.08 mm pluggable terminal block.
- Powered by the BOSS controller; 0.52 W idle, 0.67 W active; 13°F to 131°F.
- Compliant with UL 2525, NFPA 72, NFPA 101, IBC, IFC and ADA requirements.
The 3300FSCN is this same flush box supplied with the protective cover, which the FSN does not carry; 3300SS and 3300S4 are the surface and NEMA-rated exterior versions, with different faceplate sizes. It is a system device, not a stand-alone telephone.
