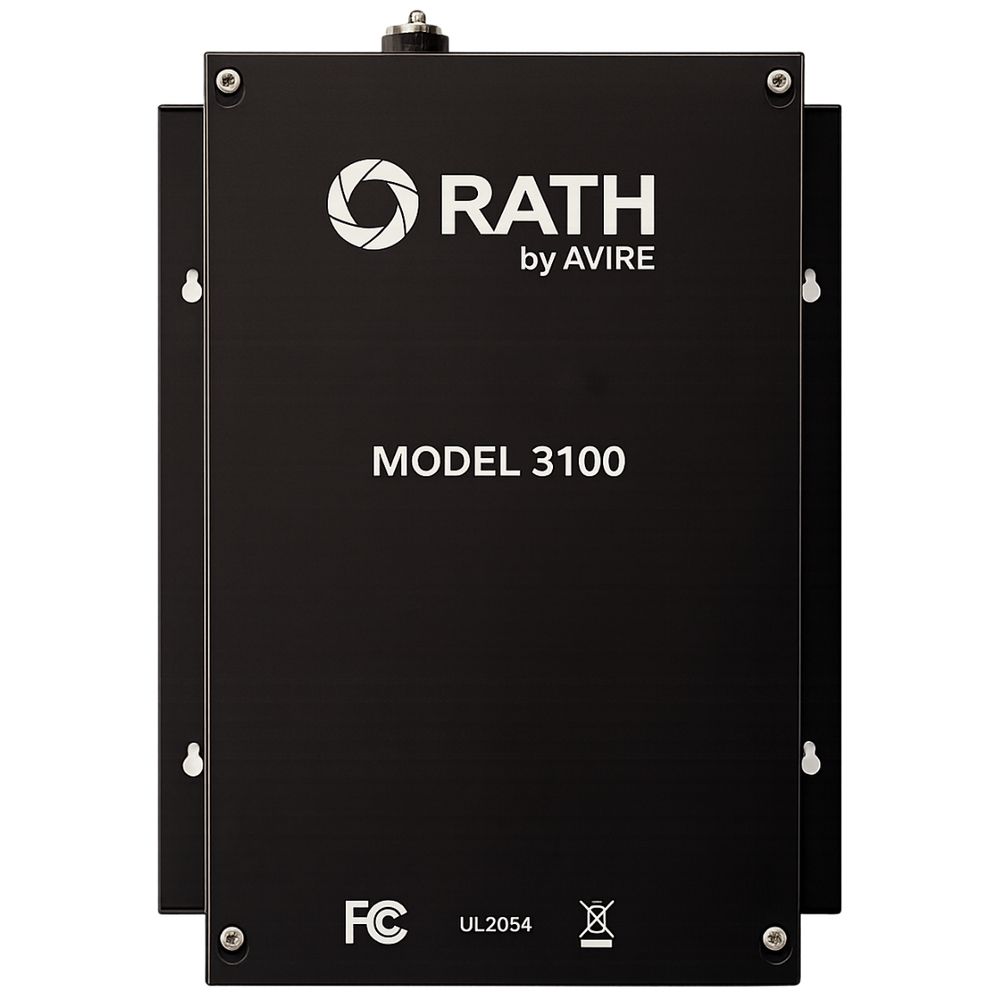

Rath Communications 3100 SmartCommand LiFePO4 Battery Backup Unit
LiFePO4 (lithium iron phosphate) battery backup unit for RATH Addressable SmartCommand area-of-rescue / emergency communication systems. It provides 24-hour standby and 4-hour emergency operation, is monitored through the SmartCommand BOSS controller, and conforms to UL 2525, UL 1642, CSA 22.2 and NFPA 72.
Key Features
- 24-hour standby and 4-hour emergency operation
- LiFePO4 battery technology - compact, lightweight power storage
- Integrated battery protection
- LED status indicators for monitoring and diagnostics
- Compatible with all SmartCommand BOSS controllers; monitored via the BOSS controller
- Power cord included
- Conforms to UL 2525, UL 1642, CSA 22.2 and NFPA 72
Specifications
| Battery type |
Lithium Iron Phosphate (LiFePO4) |
| Backup requirements |
BOSS 3400 & 3400A: 1 battery; BOSS 3400-128 & 3400-64A: 2 batteries |
| Backup duration |
24 h standby + 4 h emergency |
| Output power |
9-12 VDC (10 A max @ 12 VDC) |
| Surge power |
2000 W |
| Nominal voltage |
9.6 V (3.2 V/cell) |
| Nominal capacity |
105 Ah @ 77 °F |
| Max discharge current |
10 A |
| Max charge current |
6 A |
| Float voltage |
3.4-3.5 Vpc @ 77 °F |
| Transfer time |
20 ms |
| Dimensions |
11.811 x 11.024 x 5.59 in |
| Weight |
13.45 lb |
| Enclosure |
1.2 mm mild steel, satin black finish |
| Operating temperature |
Recommended 68-77 °F; discharge -4 to 131 °F; charge 32 to 131 °F |
| Storage temperature |
1 month: -4 to 113 °F; 1 year: 32 to 95 °F |
| Humidity |
<95% RH |
| Self-discharge |
Approx. 3% per month at 68 °F |
| Expected battery life |
3-5 years |
| Warranty |
2 years |
| Certifications |
UL 2525, UL 1642, CSA 22.2, NFPA 72; unit label shows FC and UL2054 marks |
In the Box
- 3100 battery backup unit
- Power cord
Related Models
- SmartCommand 1000 UPS battery backup unit
- SmartCommand BOSS 3400 / 3400A / 3400-128 / 3400-64A controllers
Specifications taken from the manufacturer's published literature. Manufacturer specifications are subject to change without notice.
