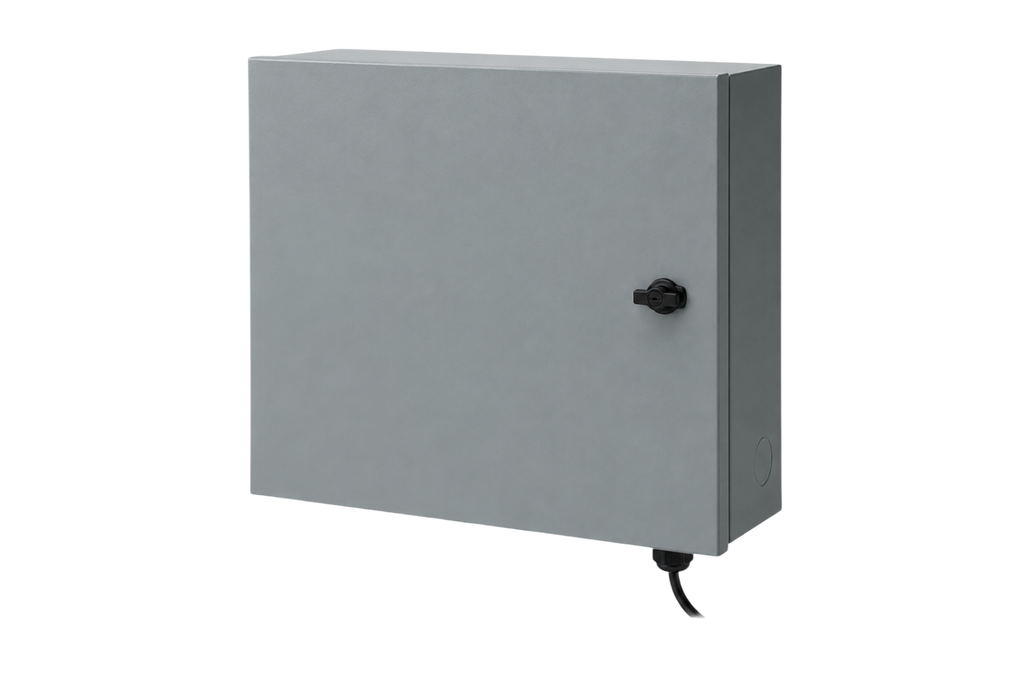

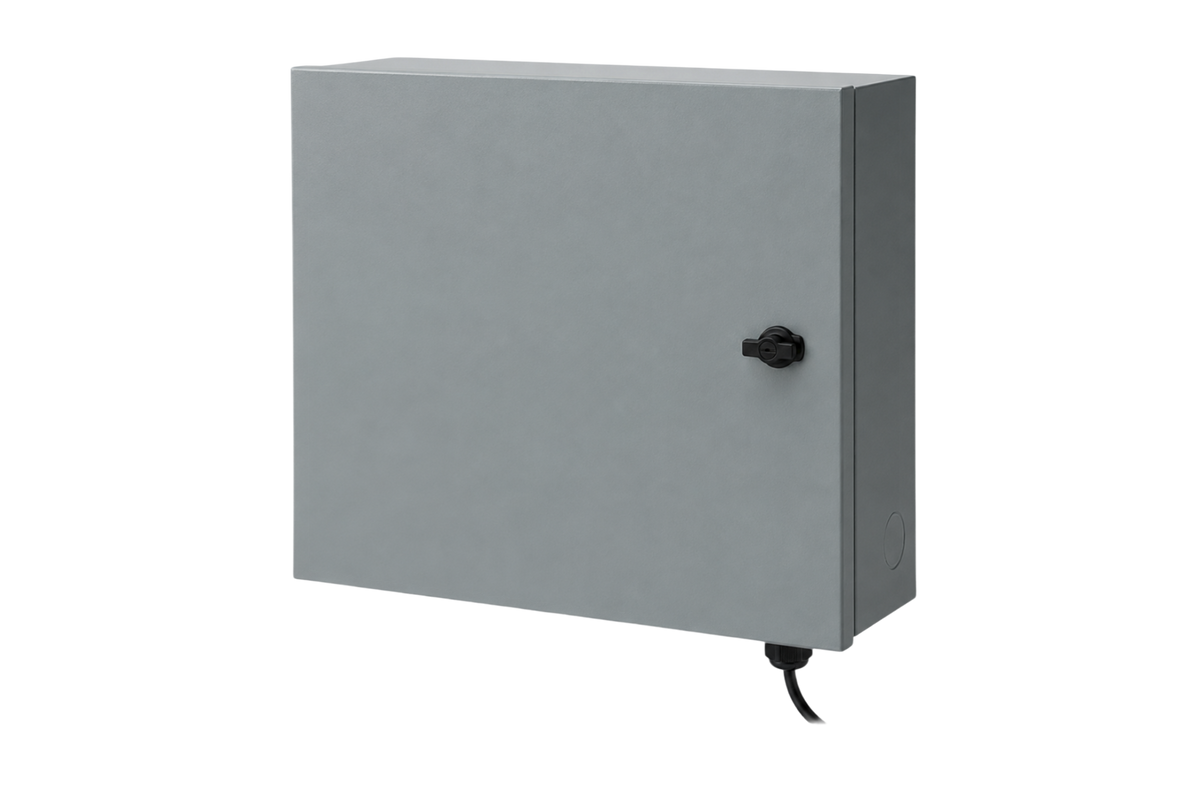

Rath 2500-PWR24U — 120 VAC to 24 VDC supply for RATH SmartRescue area-of-rescue and 2100 Series emergency telephone systems.
A SmartRescue installation runs its base station and call boxes on 24 VDC. This enclosure holds the regulated supply and a twelve-position distribution board, so every device leaves on its own current-limited pair rather than sharing one feed, and a relay drops out on loss of DC to give a panel a supervised contact for the supply itself.
- Input 100 to 120 VAC, 50/60 Hz, 4.0 A; output 24 VDC at 5 A continuous, regulated, Class 2
- Twelve PTC-protected outputs limited to 0.500 A each, trimmed at SVR1 and switched by S1
- DC failure supervision on form C contacts rated 1 A at 28 VDC
- Short circuit, overload and over-voltage protection, with input and output status LEDs
- Enclosure 12.29 × 8.78 × 2.81 in., indoor only, 32 to 120 °F, conforms to UL STD 2017
This is the power source, not a device. The SmartRescue Base Station and 2100 Series phones are ordered separately, and RATH specifies its RP7500094P power cable and RP7500094 communication cable for the runs between them.
Documents
FAQ
How is the output voltage set?
With slide switch S1 off, measure the DC output and adjust it to 24 VDC with trim potentiometer SVR1, then move S1 to ON.
How is it powered?
From 100 to 120 VAC, 50/60 Hz through the supplied three-prong power cord; connect earth ground to the terminal inside the enclosure.
Can a panel supervise the supply?
Yes. A power failure relay with NC, COM and NO contacts drops out on loss of DC.
