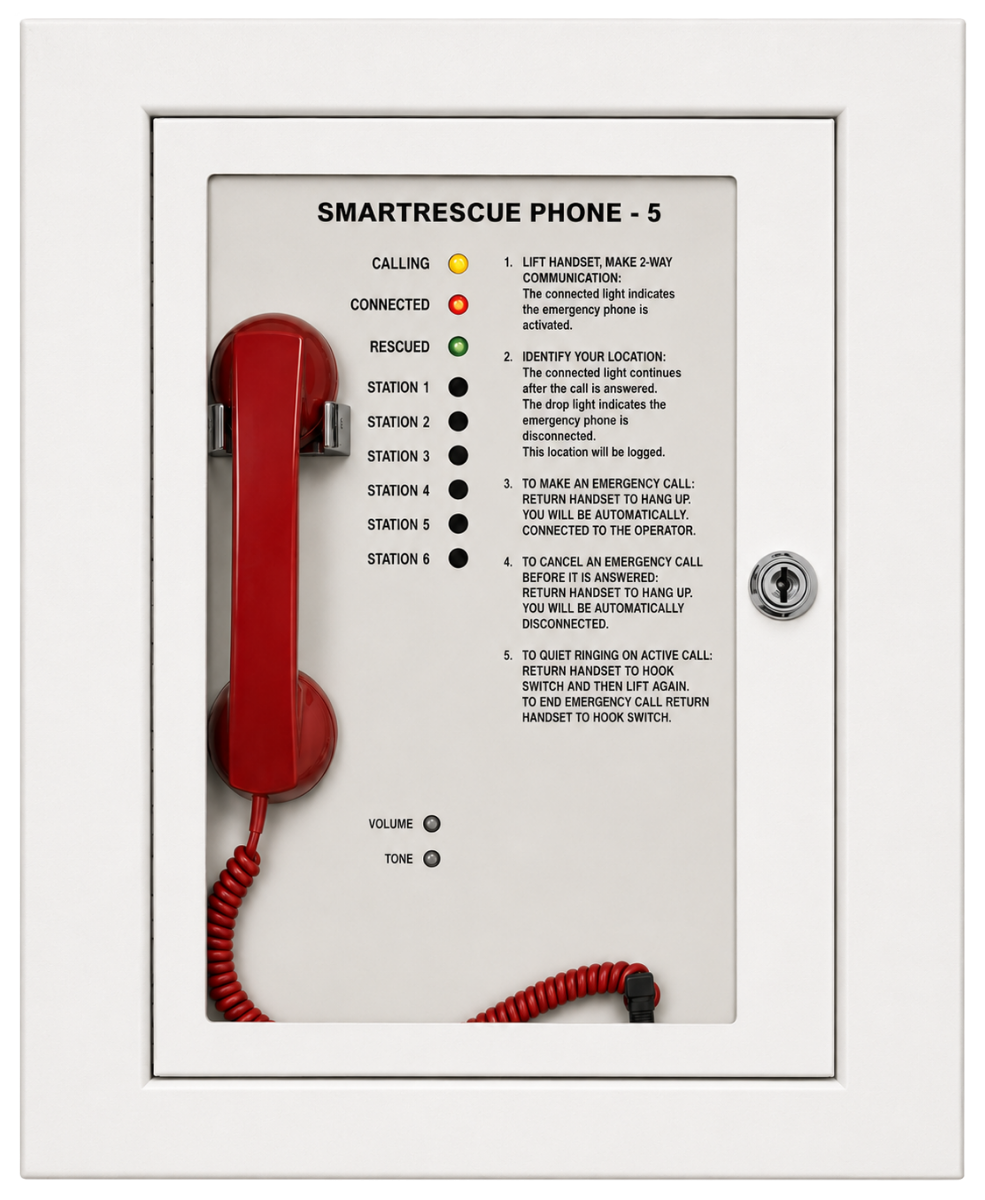

Rath 2500-205FM is a SmartRescue area of refuge base station in a flush mount cabinet, used with up to five call boxes on the same telephone line. It is the attended point where staff can answer, join and manage emergency calls from areas of refuge.
Push buttons let the operator call all or individual call boxes, join existing conversations between a call box and the outside world, hang up while the original call continues, or cut off the outside line. LEDs show call status: solid for an emergency call in progress, slow blinking for a call on hold. An audible alert sounds when a call box calls and stops when the base station joins, and a relay contact trips when any call box is activated.
Specifications
| Call boxes |
Up to 5 on the same telephone line |
| Phone line |
Single analog (POTS, PBX or central office) or digital line; 24 to 48 V line voltage |
| Power |
120 VAC or 24 VDC |
| Battery backup |
Built-in 16.8 V 1400 mAh battery (RP7300109A), minimum 4 hours talk time |
| Wiring |
Twisted, shielded 4-wire set to each call box |
| Face dimensions |
16.11 x 14 x 3 in. |
| Back box |
15.62 x 12 x 3 in., flush mount |
| Enclosure |
Powder coated steel, coil cord, twist lock closure |
| Code compliance |
IBC, NFPA, ADA; UL 2017 attendant monitored signaling; ETL 5013373 |
| Warranty |
2 years |
Installation notes
- Run a twisted, shielded 4-wire set from each call box and one standard phone line to the outside world
- For IP or cellular networks an additional Rath interface device is required
- The twist lock closure accepts a fireman's lock, which is not provided
- The volume control handset meets ADA requirements
Related models
- 2500-205D: surface mount version
- 2500-210FM: flush mount cabinet
- 2500-210B: up to 10 call boxes
Documents
FAQ
How many call boxes can the 2500-205FM handle?
Up to five call boxes on the same telephone line.
What phone line does it need?
A single analog line (POTS, PBX or central office) or a digital phone line. IP or cellular networks need an additional Rath interface device.
Does it work during a power failure?
Yes. A built-in 16.8 V 1400 mAh battery recharges from 120 VAC and gives at least 4 hours of talk time on loss of power.
Which codes does it address?
Rath lists IBC, NFPA and ADA, compliance with UL 60950-1 section 6.4, conformance to UL 2017 for attendant monitored signaling devices, and ETL certification number 5013373.
