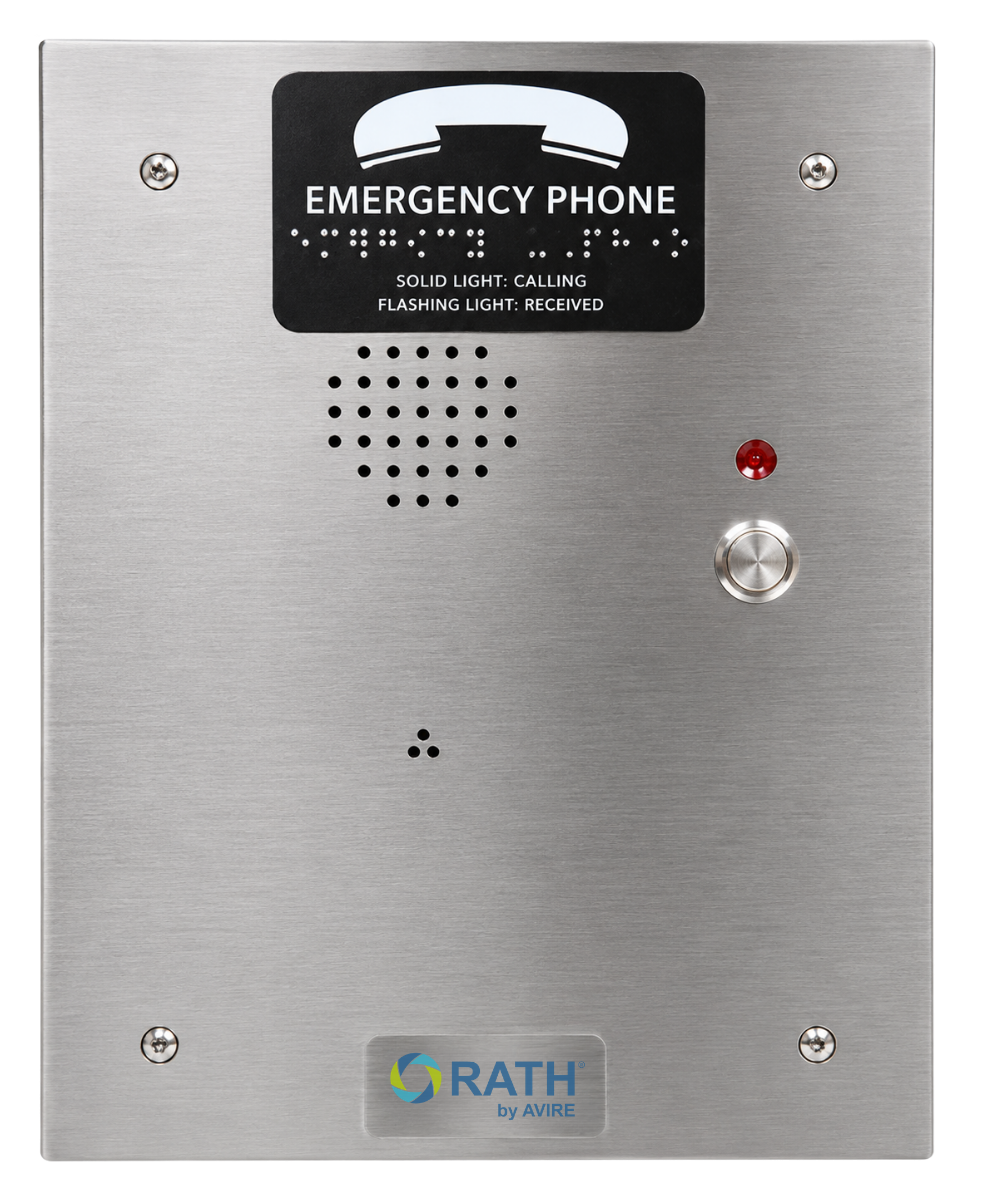

Rath 2400-808NSP — RATH Command System emergency call box, flush mount, with a brushed stainless steel faceplate, for hands-free two-way voice communication.
The 2400-808NSP is designed to be powered from the RATH Distribution Module and needs only a single pair of wires from it. It dials automatically, plays a recordable location message so the answering party knows where the call comes from, and answers incoming calls automatically with an audible ring. Programming is done on site with the numeric keypad.
Specifications
| Part number |
2400-808NSP |
| Mounting |
Flush mount |
| Finish |
Brushed stainless steel |
| Faceplate |
9-1/2 in. H x 7-1/2 in. W |
| Back box |
8 in. H x 6 in. W x 3 in. D |
| Power |
From the Distribution Module, single pair |
| Dialer |
Automatic, 31-digit programmable memory; up to 2 emergency numbers |
| Location message |
Recordable, 25 seconds |
| Code compliance |
IBC, NFPA, ADA |
| Warranty |
2 years |
Installation notes
- Mount so the push button is 48 in. from the floor
- 2400 Series phones are programmed only with the onboard keypad
- A mushroom push button is available as an option
Related models
- 2400-805SPM: line powered call box
- 2100-958NSR: SmartRescue flush call box with the same faceplate size
Documents
FAQ
How is the 2400-808NSP powered?
It is designed to be powered from the RATH Distribution Module and needs a single pair of wires from it.
How many numbers can it call?
Up to two emergency phone numbers, with a 31-digit programmable memory for the automatic dialer.
How is it programmed?
On site with the onboard numeric keypad, including a recordable 25-second location message.
How high should it be mounted?
RATH specifies mounting call boxes so that the push button is 48 in. from the floor.
