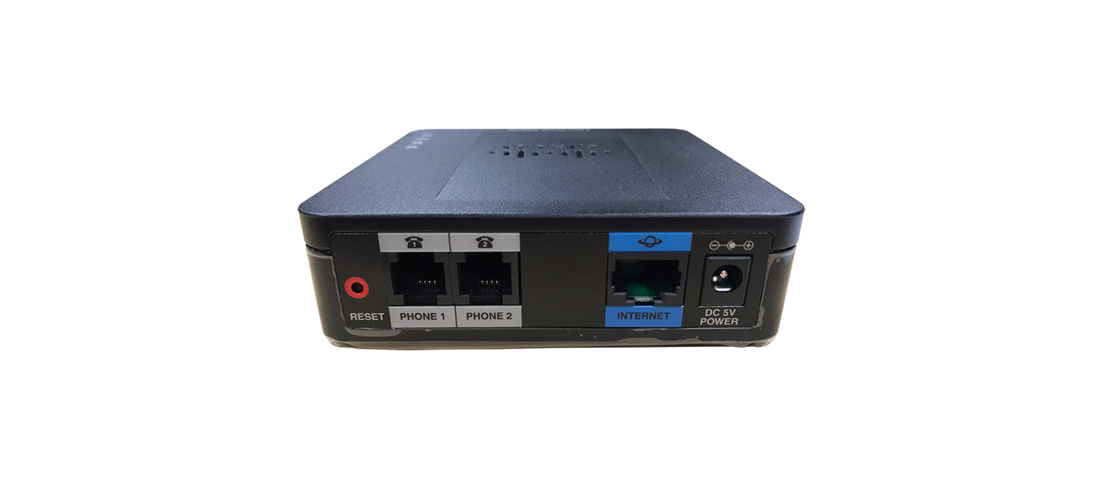

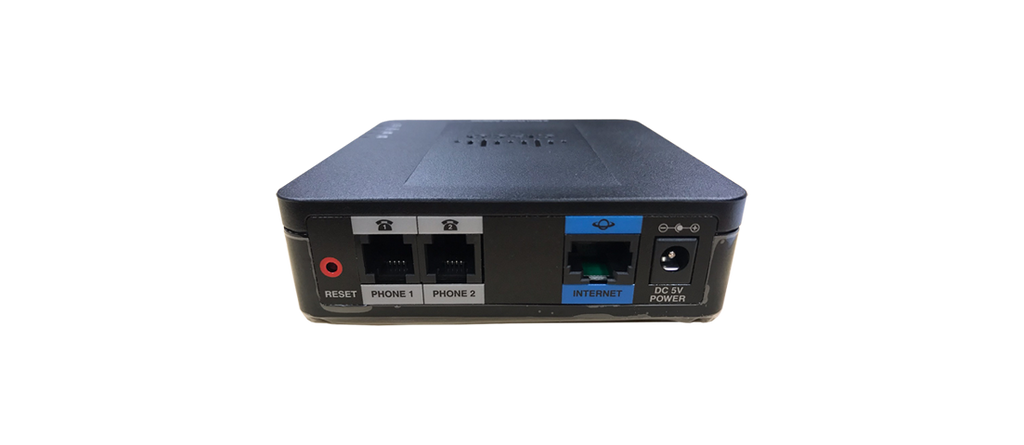

RATH 2100-VOIP2CS is a dual input IP interface that lets up to two RATH 2100 Series phones place calls on an IP phone system, such as a Cisco network or a cloud-based service provider. Phone line verification is included.
Specifications
| Phones supported |
Up to two RATH 2100 Series phones |
| Ports |
Two FXS ports (RJ11); WAN RJ45 10/100 BaseT |
| VoIP protocols |
SIP v2, SDP, RTP, RFC 2833 |
| Network protocols |
IPv4, TCP, UDP, DHCP, SNTP, STUN, HTTP, PPPoE |
| Power |
120 VAC from a backed-up power source or RATH RP7700100; 5 W |
| Dimensions |
1.12 in. H x 4 in. W x 4 in. D |
| Environmental |
32 to 113 °F |
| Compliance |
FCC Part 15 Class B |
| Warranty |
2 years |
Installation notes
- The building provides a static IP address for the interface, the SIP server IP address or web address, and the SIP extension name, authentication password and authentication IP.
- Power the interface from a battery backed-up 120 VAC source.
- Connect the Ethernet port to a laptop or the network with the supplied Ethernet cable for setup.
Related models
- RATH 2100 Series emergency phones
- RP7700100 backed-up power source
Documents
FAQ
How many RATH phones can connect?
Up to two RATH 2100 Series phones on one IP phone system.
What does the building need to provide?
A static IP address for the interface, the SIP server address, and a SIP extension name, authentication password and authentication IP.
How is it powered?
From 120 VAC on a battery backed-up power source, such as the RATH RP7700100.
Which protocols does it use?
SIP v2, SDP, RTP and RFC 2833 for VoIP.
