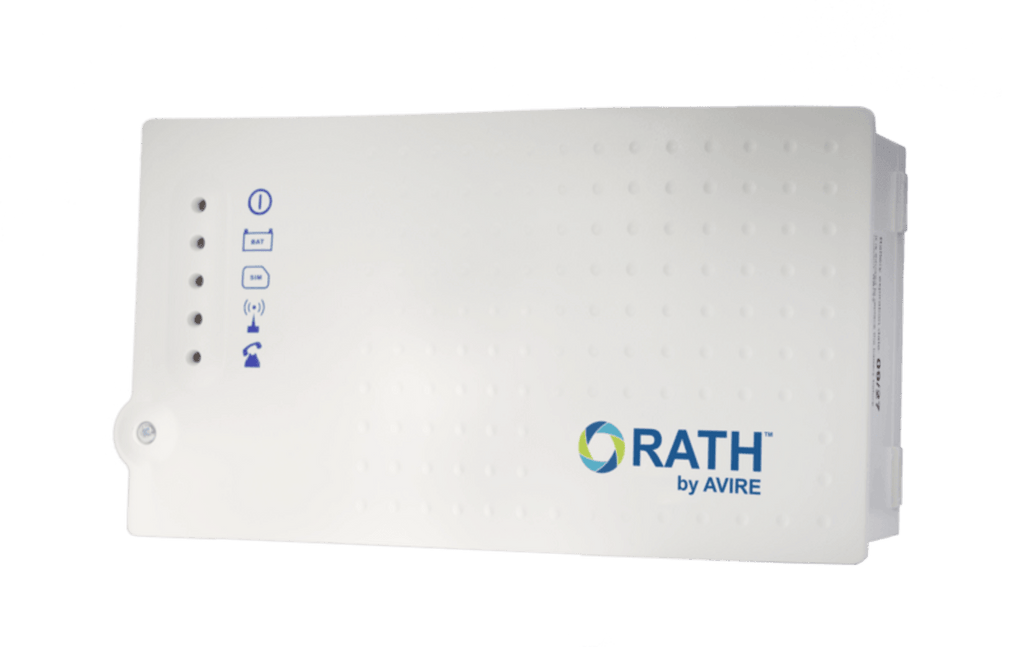

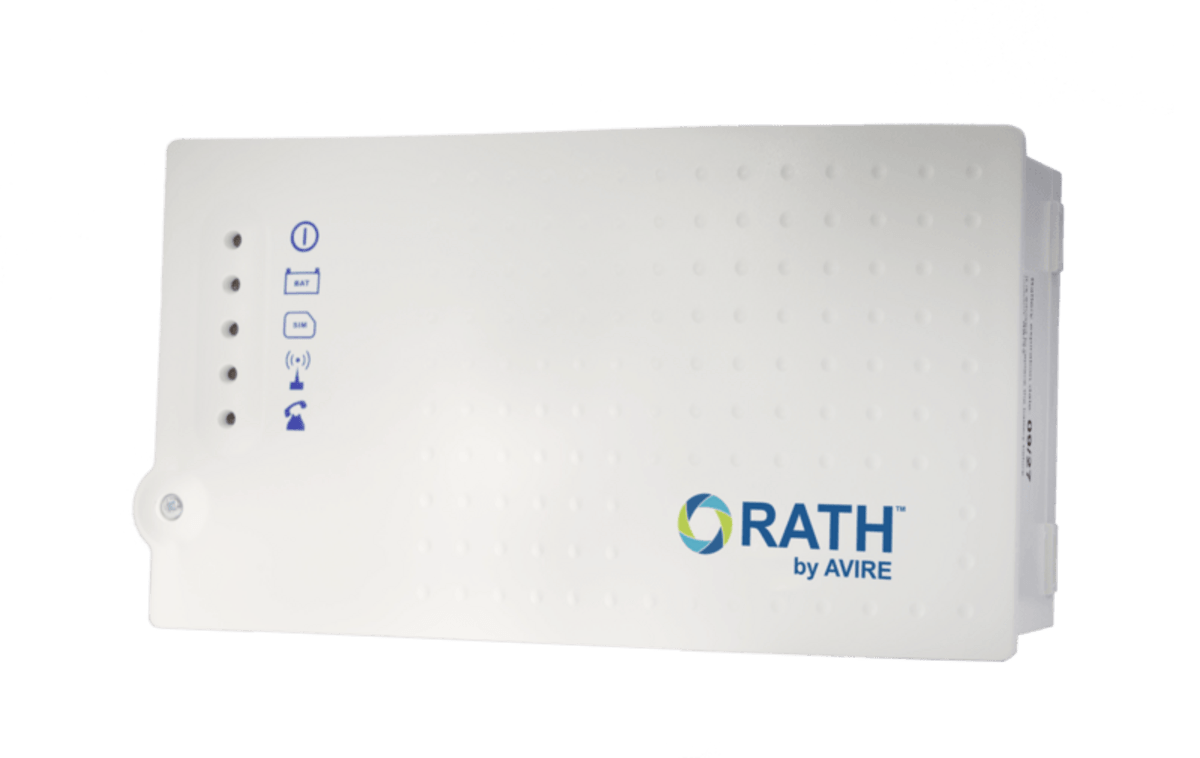

Rath 2100-LTEGSM4 is a 4G voice cellular gateway on the AT&T network for emergency phones, such as Rath and Janus elevator and area of refuge phones. It replaces a landline: the phone connects to the gateway, and calls go out over the cellular network.
The gateway ships with an antenna and a 2-year prepaid SIM card and plan, and a built-in battery keeps it running during a main power failure. A built-in signal strength scanner, switched on with a DIP switch, shows network coverage on the front LEDs so the installer can find the best location.
Specifications
| Network |
4G, AT&T SIM (2-year prepaid plan included) |
| Power |
110–120 VAC, 50/60 Hz; 40 mA idle, 80 mA active |
| Backup battery |
NiMH 800 mAh, about 4 hours talk time; replace every 4 years |
| Phone connection |
RJ11 jack or 2-pin screw terminals, up to 1,000 ft |
| Other ports |
RS232 data pass-through, CANBUS, external antenna |
| Environment |
Indoor, 32–113°F, 20–80% RH non-condensing |
| Warranty |
2 years |
Installation notes
- Use a standard-size SIM; do not use a nano or micro SIM with an adapter
- Fit the antenna, connect the battery and phone, then apply 120 VAC
- Run the signal strength test before final mounting; add signal boosters if coverage is weak
- Janus phones without external power need Janus part POWPK-12VC
Related models
2100-LTEVER4 is the Verizon version. The manufacturer lists the 2100-LTEGSM4 as discontinued and replaced by the 8100-V4GS voice and data cellular gateway.
