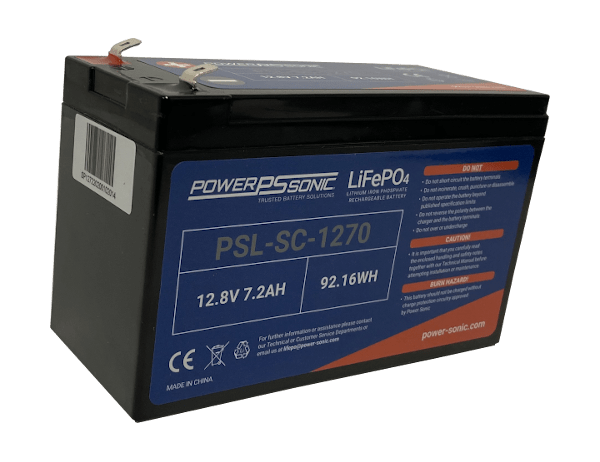

Power-Sonic PSL-SC-1270 F2 — 12.8 volt lithium iron phosphate battery with an integral protection circuit and F2 faston tabs.
PSL-SC is the series-capable lithium line from Power-Sonic: up to four units may be wired in series for higher voltage. It has the same case footprint as a 12 V 7 Ah lead acid block at under half the weight. Power-Sonic lists renewable energy, telecom, UPS and industrial equipment as the applications, and makes no drop-in replacement claim for lead acid.
- 12.8 V nominal, four cells, 92.16 Wh stored energy; the case label reads 12.8V 7.2AH while the specification table gives 7.0 Ah at the two hour rate, 3.5 A to 10.0 V
- 2,000 cycles at 100 percent depth of discharge; up to four in series
- 5.94 " L × 2.56 " W × 3.74 " H; 2.01 lb; 90 mΩ internal resistance
- 15.0 A maximum continuous discharge; protection trips on cell over-voltage at 3.9 V
- Charge 32 to 113 °F, discharge -4 to 140 °F; cyclic charge 14.4 to 14.6 V
- ABS case rated UL94 V-0; IEC 62133 and UN 38.3, with UL 1642 certified cells
PS-1290 F2 is the lead acid battery of similar size and is the one Power-Sonic lists for fire and security use.
