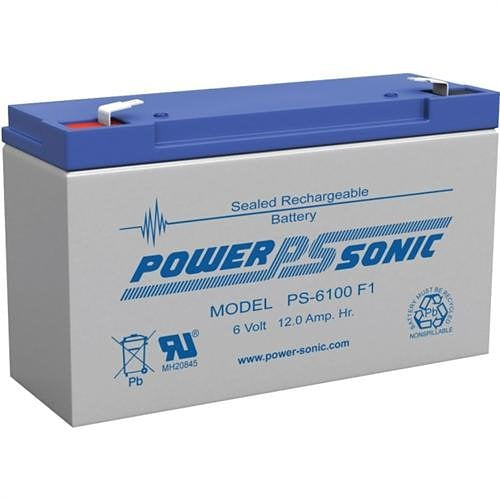

Power Sonic PS-6100 F1 PS Series 6V, 12Ah General Purpose Rechargeable SLA Battery, F1 Terminals
The Power-Sonic PS-6100 is a 6 volt, 12 Ah (20-hour rate) sealed lead acid AGM battery from the PS general-purpose series. It is intended for float and light cyclic duty in fire and security systems, emergency lighting, UPS and similar equipment. This configuration has F1 quick-disconnect terminals.
Key Features
- 6 V, 12.0 Ah at the 20-hour rate
- F1 terminals
- Absorbent Glass Mat (AGM) valve-regulated sealed lead acid construction
- Maintenance free - no refilling
- Gas recombination technology
- Vibration and impact resistant ABS case and cover
- For general-purpose float and light cyclic use, including fire and security systems, emergency lighting and UPS
- Recommended Power-Sonic charger: PSC-61000ACX
Specifications
| Nominal voltage |
6.0 V (3 cells) |
| Capacity, 20-hr (0.6 A to 5.25 V) |
12.0 Ah |
| Capacity, 10-hr (1.12 A to 5.25 V) |
11.2 Ah |
| Capacity, 1-hr (7.2 A to 4.8 V) |
7.2 Ah |
| Terminal |
F1 |
| Length |
5.94 in. (151 mm) |
| Width |
1.97 in. (50 mm) |
| Height |
3.70 in. (94 mm) |
| Height over terminal |
3.94 in. (100 mm) |
| Approximate weight |
3.53 lb (1.6 kg) |
| Internal resistance (approx.) |
12 milliohm |
| Float charge voltage |
6.75-6.90 V |
| Cycle charge voltage |
7.05-7.20 V |
| Initial charging current (max) |
3.6 A |
