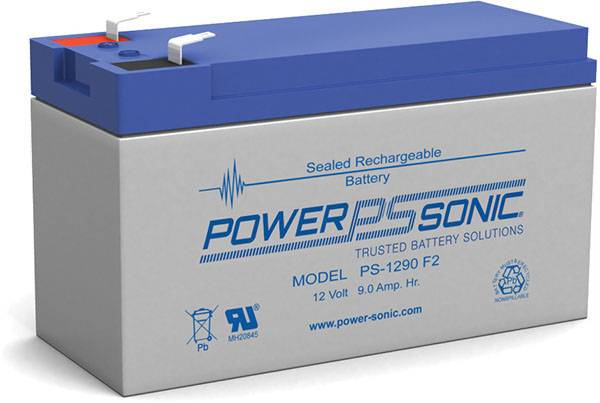

Power-Sonic PS-1290 F2 — 12 volt, 9.0 Ah valve-regulated sealed lead acid battery with F2 quick-disconnect tabs.
This is the standby battery size most commonly found in fire alarm panels, NAC extenders and emergency lighting heads. Power-Sonic names fire and security systems among the applications for the PS series, and the cells are absorbed glass mat, so the battery is non-spillable and mounts in any orientation.
- 12.0 V nominal, six cells; 9.0 Ah at the 20 hour rate, 0.45 A to 10.5 V
- 8.51 Ah at the 10 hour rate, 7.85 Ah at 5 hours and 5.98 Ah at 1 hour
- 5.94 " L × 2.56 " W × 3.7 " H, 3.94 " over the terminals; 5.56 lb
- F2 is a 0.250 " × 0.032 " faston quick-disconnect tab
- 17 mΩ internal resistance; 252 A maximum short circuit discharge current
- Float 13.5 to 13.8 V, cyclic 14.1 to 14.7 V; float life about five years at 20 to 25 °C
- ABS case to UL94 HB; UL 1989 and IEC 60896; UN2800 non-spillable
PS-1290 F1 and PS-1290 NB1 are the same battery with narrower tabs and nut-and-bolt posts. PS-1270 is 7 Ah in the same footprint, and PSL-SC-1270 F2 shares the case size but is lithium at 12.8 V.
