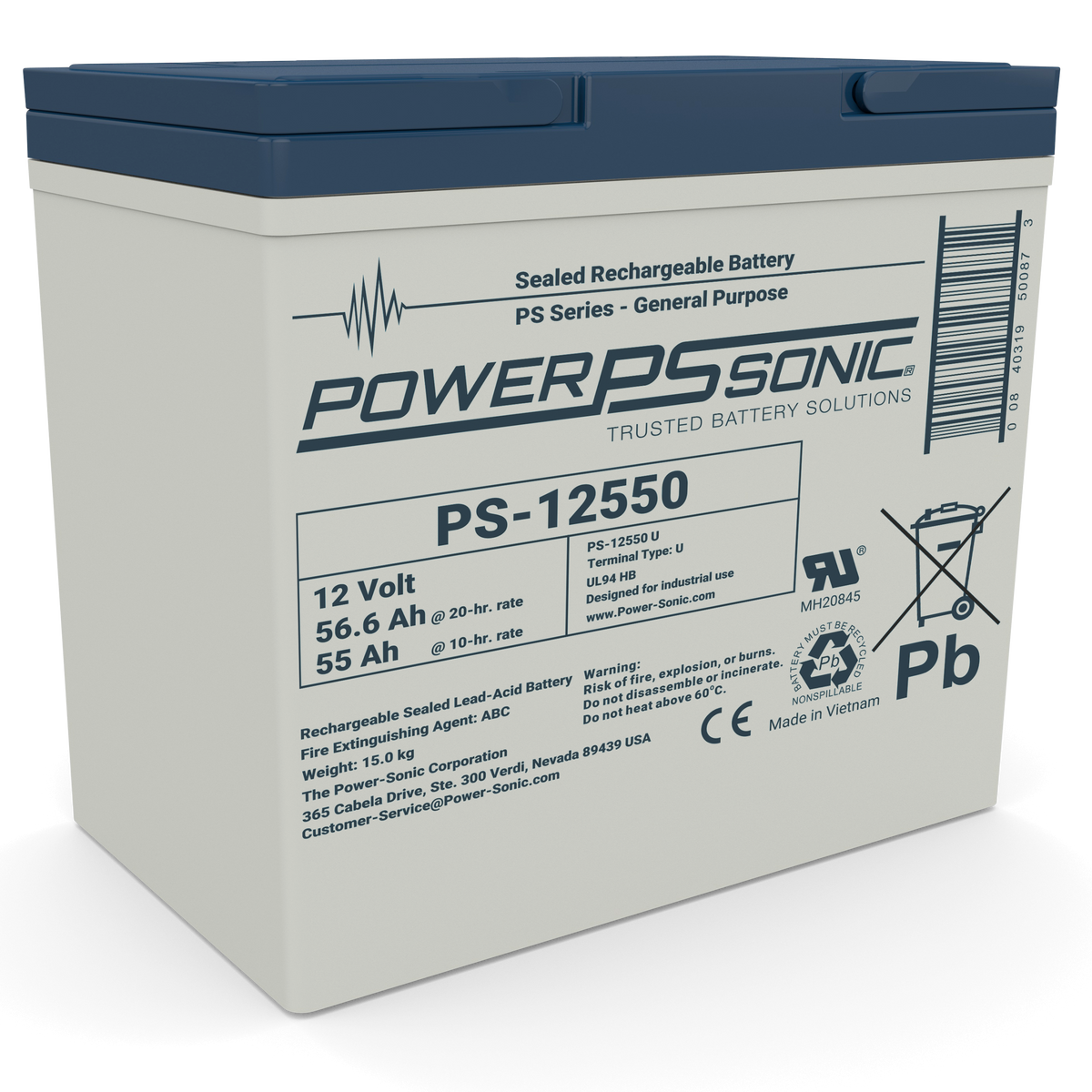

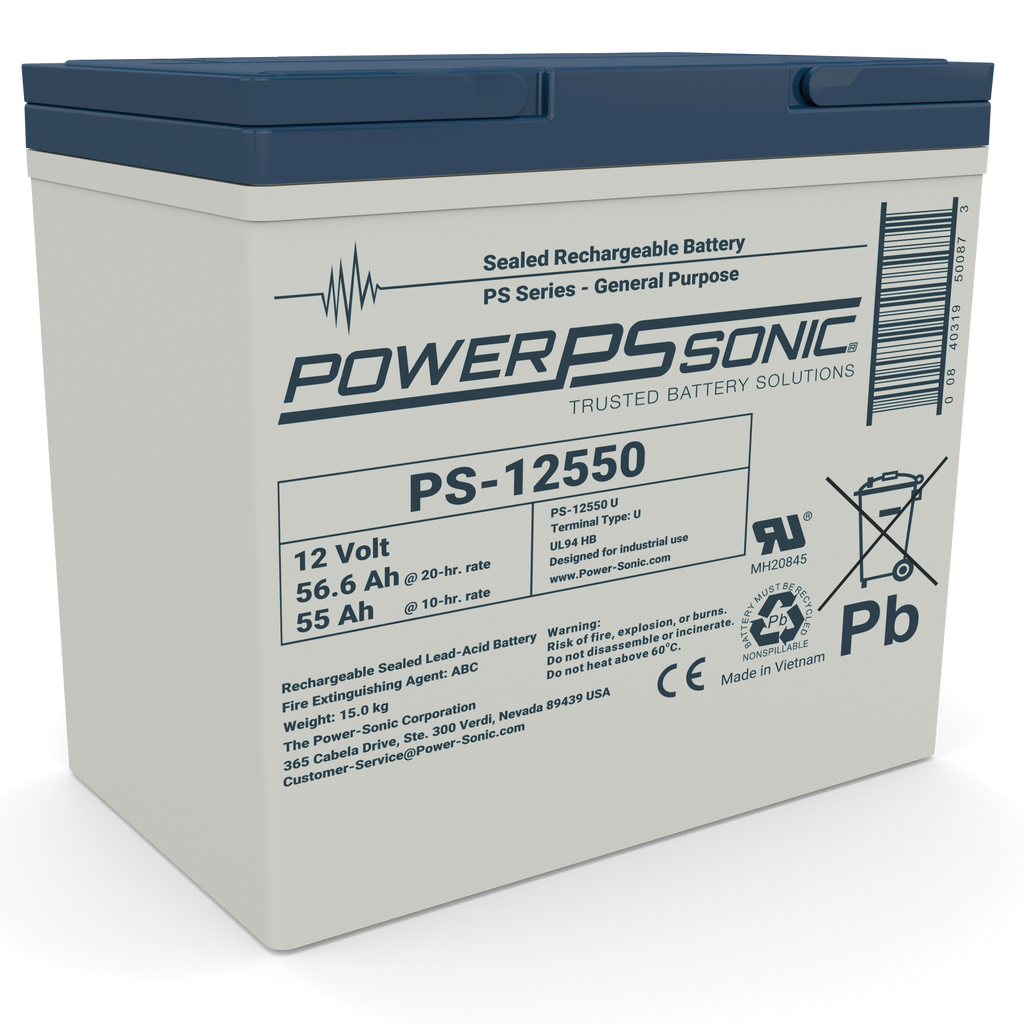

Power-Sonic PS-12550U is a 12 V sealed lead acid battery from the PS general purpose series, rated 55.0 Ah at the 10-hour rate, with the U terminal option. Power-Sonic engineers the series for general purpose float and light cyclic use, including fire and security systems, emergency lighting and UPS.
Specifications
| Nominal voltage |
12.0 V (6 cells) |
| Capacity, 20-hr |
56.6 Ah (2.83 A to 10.8 V) |
| Capacity, 10-hr |
55.0 Ah (5.5 A to 10.8 V) |
| Capacity, 5-hr |
49.2 Ah |
| Capacity, 1-hr |
36.9 Ah |
| Dimensions |
9.02 in. L x 5.43 in. W x 8.31 in. H; 8.5 in. over terminals |
| Weight |
33.07 lb (15.0 kg) |
| Internal resistance |
Approx. 9.0 mΩ |
| Max. short circuit current |
1100 A |
| Charge temperature |
-4 to 122 °F (-20 to 50 °C) |
Related models
- PS-12550 M6: same battery with M6 terminals
Documents
FAQ
What is the capacity of the PS-12550U?
55.0 Ah at the 10-hour rate and 56.6 Ah at the 20-hour rate.
What does the U mean?
U is one of the terminal options shown for the PS-12550; the other is M6.
How heavy is it?
About 33 lb (15.0 kg).
