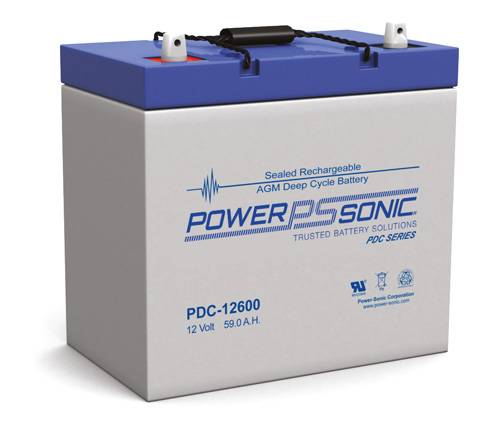

Power-Sonic PDC-12600 U — 12 V, 60 Ah sealed lead-acid deep cycle AGM battery with universal post terminals.
PDC is the Power-Sonic deep cycle family, built with rugged plates and absorbent glass mat separators for repeated discharge and recharge. Power-Sonic markets it for mobility, marine and renewable energy duty, not as a fire alarm standby battery, and it carries no fire alarm listing of its own. Power-Sonic does declare the PDC series to UL 1989, and the battery carries the UL Recognized mark under file MH20845.
- Nominal: 12.0 V, six cells
- Capacity: 60.0 Ah at the 20 hour rate, 56.0 Ah at the 10 hour rate
- Terminals: U, universal heavy duty posts with nut and bolt fasteners, torque 11.0 to 14.7 N m
- Dimensions: 9.02 × 5.43 × 8.27 in.
- Weight: about 39.02 lb
- Internal resistance about 9.0 mΩ, ABS case
Watch the suffix: PDC-12600 M6 is the same battery with a 12 mm M6 threaded insert in place of the posts, and will not accept post clamps. Older PDC-12600 sheets also published 65 Ah at the 10 hour rate; the current datasheet says 56.0 Ah.
