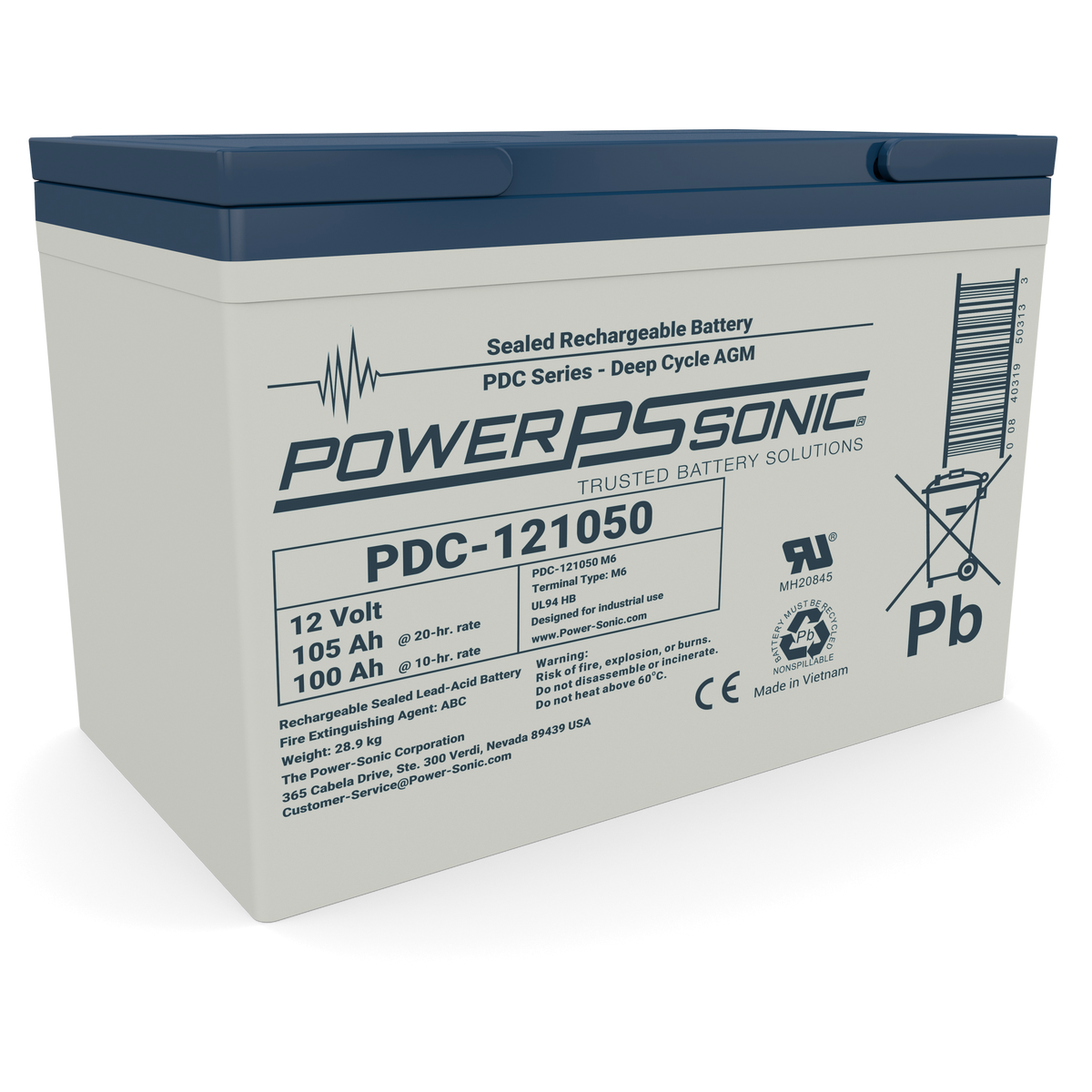

The Power Sonic PDC-121050 M6 is a 12 V, 105 Ah deep cycle AGM battery from the PDC series, fitted with M6 terminals. Its rugged plate design and absorbent glass mat separators are built for long runtimes and repeated cycling.
The battery is sealed and rechargeable, in an ABS case, and Power Sonic recommends its PSC-126000ACX charger.
Specifications
| Nominal voltage |
12.0 V (6 cells) |
| Capacity, 20-hour rate |
105.0 Ah (5.25 A to 10.8 V) |
| Capacity, 10-hour rate |
100.0 Ah (10.0 A to 10.8 V) |
| Capacity, 5-hour rate |
86.0 Ah (17.2 A to 10.2 V) |
| Capacity, 1-hour rate |
58.1 Ah (58.1 A to 9.6 V) |
| Dimensions |
12.05 x 6.61 x 8.19 in. (L x W x H); 8.43 in. to terminal top |
| Weight |
63.71 lb (28.9 kg) |
| Internal resistance |
About 5.0 milliohms |
| Max short circuit current |
2,000 A |
| Operating temperature |
Charge 32 to 104°F; discharge -4 to 131°F |
| Terminal |
M6 |
Installation notes
- Cycle use: charge at 14.1 to 14.7 V at 20°C with initial current under C/5, then switch to float when current falls to 3% of capacity
- Standby (float) use: hold at 13.5 to 13.8 V at 20°C
- Apply temperature compensation to the charging voltage
- Always follow the latest Power Sonic technical manual
Related models
Other PDC series deep cycle AGM batteries include the PDC-12600 and PDC-12800.
Documents
FAQ
What is the capacity of the PDC-121050?
105.0 Ah at the 20-hour rate, 100.0 Ah at 10 hours, 86.0 Ah at 5 hours and 58.1 Ah at 1 hour.
How should it be charged?
For cycle use, charge at 14.1 to 14.7 V at 20°C with an initial current under C/5, switching to float at 3% of capacity. For standby use, float at 13.5 to 13.8 V. Power Sonic recommends the PSC-126000ACX charger.
How big and heavy is it?
12.05 x 6.61 x 8.19 in. (8.43 in. to the terminal top) and 63.71 lb (28.9 kg).
