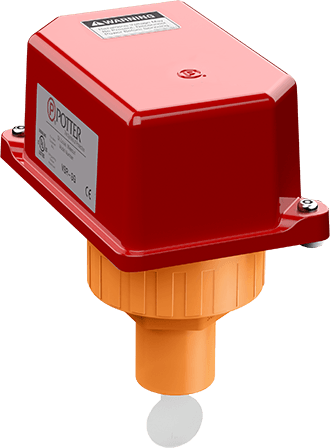

Potter VSR-SG is a vane type waterflow alarm switch with retard and a glue-in union, made for CPVC pipe from 1 to 2 inch sizes. It is used on wet sprinkler systems that use CPVC plastic fittings.
The switch signals when flow of 10 GPM (38 LPM) or more occurs downstream and continues for the selected retard period. The union makes installation possible in confined spaces. The cover is held by two tamper-resistant screws that need a special key, and a field-installable cover tamper switch is available as an option.
Features
- For wet sprinkler systems using CPVC plastic fittings, 1 to 2 in. pipe
- Two single pole, double throw (SPDT) snap-action switches
- Adjustable, instantly recycling pneumatic retard
- Union included for installation in confined spaces
- Tamper-resistant cover screws; optional field-installable cover tamper switch
- Two 1/2 in. conduit entrances, with separate switch compartments suited to dissimilar voltages
- NEMA 4 / IP54 enclosure with gasket, for indoor or outdoor use with an appropriate conduit fitting
- UL, CUL and CSFM listed; CE marked
Specifications
| Product type |
Waterflow switch |
| Service pressure |
Up to 175 PSI (12.07 bar) |
| Flow sensitivity range for signal |
4 to 10 GPM (15 to 38 LPM) |
| Maximum surge |
18 ft/s (5.5 m/s) |
| Contact ratings |
Two SPDT (Form C): 10.0 A at 125/250 VAC; 2.0 A at 30 VDC resistive; 10 mA minimum at 24 VDC |
| Temperature range |
40 to 120 deg F (4.5 to 49 deg C) |
| Housing |
Die-cast |
| Dimensions (H x W x D) |
3.9 in. x 5.6 in. x 3.5 in. |
