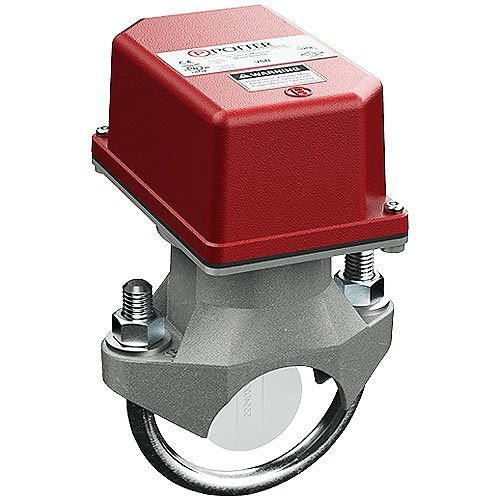

Potter VSR-2.5 is a vane-type waterflow alarm switch with a built-in pneumatic retard for 2-1/2 inch steel pipe on wet-pipe sprinkler systems. It contains two SPDT switches and an adjustable, instantly recycling retard that reduces false alarms from pressure surges.
Specifications
| Pipe size |
2-1/2 in nominal (2.875 in O.D.) |
| Contacts |
Two SPDT (Form C) |
| Contact ratings |
10 A at 125/250 VAC; 2 A at 30 VDC resistive; 10 mA minimum at 24 VDC |
| Retard |
Adjustable, 0 to 90 seconds |
| Flow sensitivity for signal |
4 to 10 GPM (15 to 38 LPM) |
| Service pressure |
450 PSI (31 bar) |
| Temperature range |
40 to 120 F (4.5 to 49 C) |
| Enclosure |
NEMA 4 / IP54; die-cast aluminum base, high-impact composite cover |
| Conduit entrances |
Two 1/2 in knockouts |
Features
- Mounts on horizontal or vertical pipe, with the arrow on the saddle pointing in the direction of flow
- Separate switch compartments suit dissimilar voltages
- Cover is held by two tamper-resistant screws; a field-installable cover tamper switch is available
- Field-replaceable time delay retard with an easy-to-read adjustment knob
- UL certified and FM approved for NFPA 13, 13D, 13R and NFPA 72 service
Do not use as the sole initiating device to discharge AFFF, deluge or chemical suppression systems.
