The UD-2000 Digital Alarm Communicator Transmitter (DACT) provides for up to two (2) phone lines for communication to a monitoring station
The UD-2000 communicates using the SIADCS or Ademco Contact ID protocols. When enabled, the DACT automatically monitors each phone line or voltage and can seize the line and connect with a remote receiver. Once the communication is complete, the DACT will hang up.
This product is compatible with the PFC-4064.

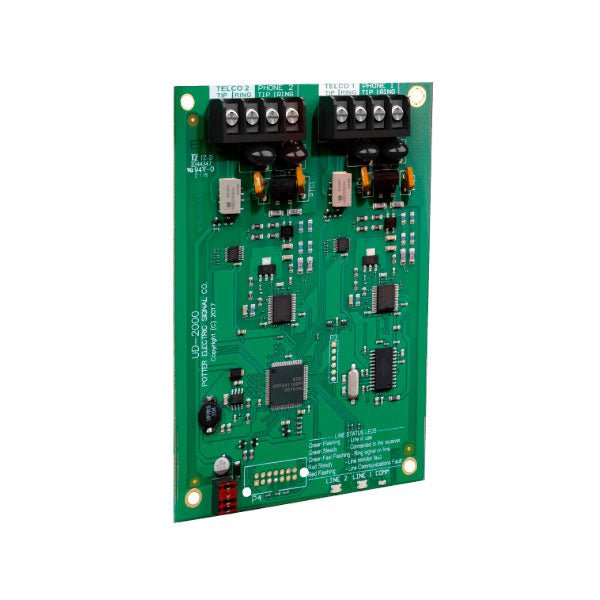

The DACT has terminal blocks for each phone line and two RJ45 cords. For the DACT to work properly, it must be installed on a plain old telephone service (POTS) line or equivalent deemed by the authority having jurisdiction. The DACT must be installed before any other equipment to ensure it can seize the phone line.
Phone lines are high voltage and should be run in a separate conduit from other circuits. The wire conductors connecting the DACT to the phone system should be 26 AWG or larger.
Documents
FAQ
Which reporting formats does the UD-2000 use?
SIA DCS or Ademco Contact ID.
How many phone lines does it support?
Up to two phone lines to the monitoring station, each with its own terminal block and RJ45 cord.
What line does it need?
A plain old telephone service (POTS) line or an equivalent accepted by the authority having jurisdiction. It must be installed ahead of other equipment so it can seize the line.
What current does it draw?
16 mA standby and 23 mA in alarm.
