Potter STN-2.5 2.5 feet Sampling Tube for Addressable DDA, PAD100-DUCT and PAD100-DUCTR

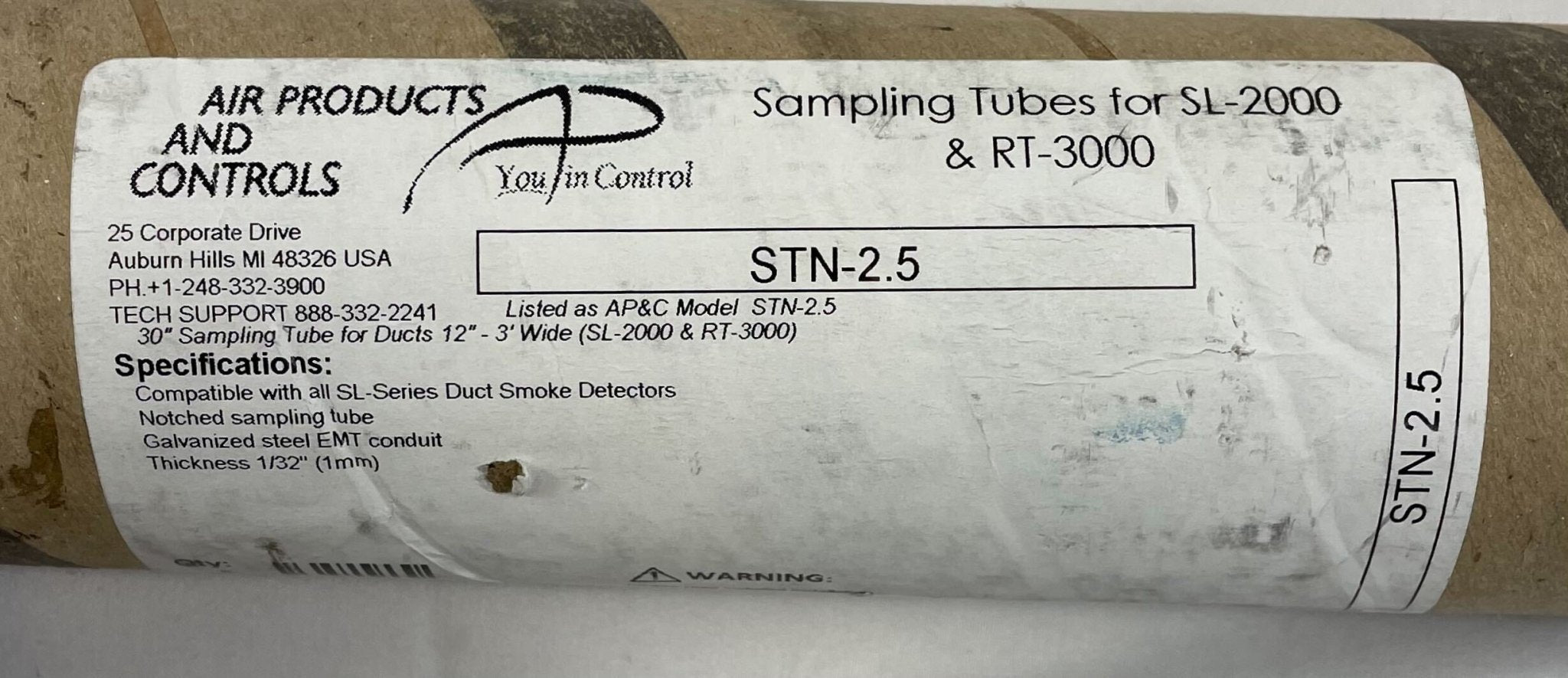

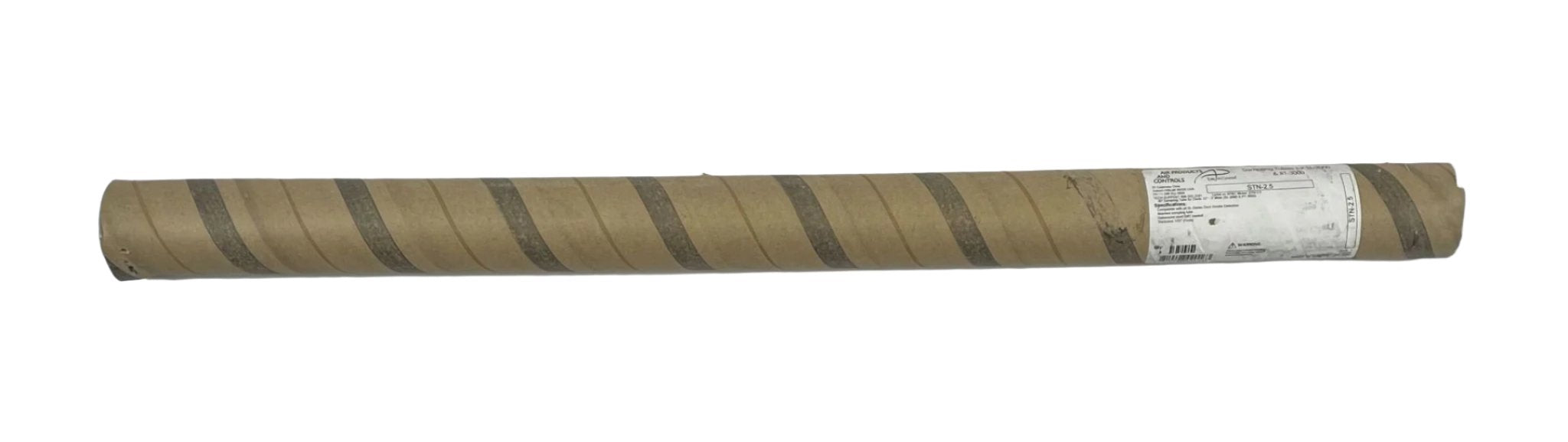

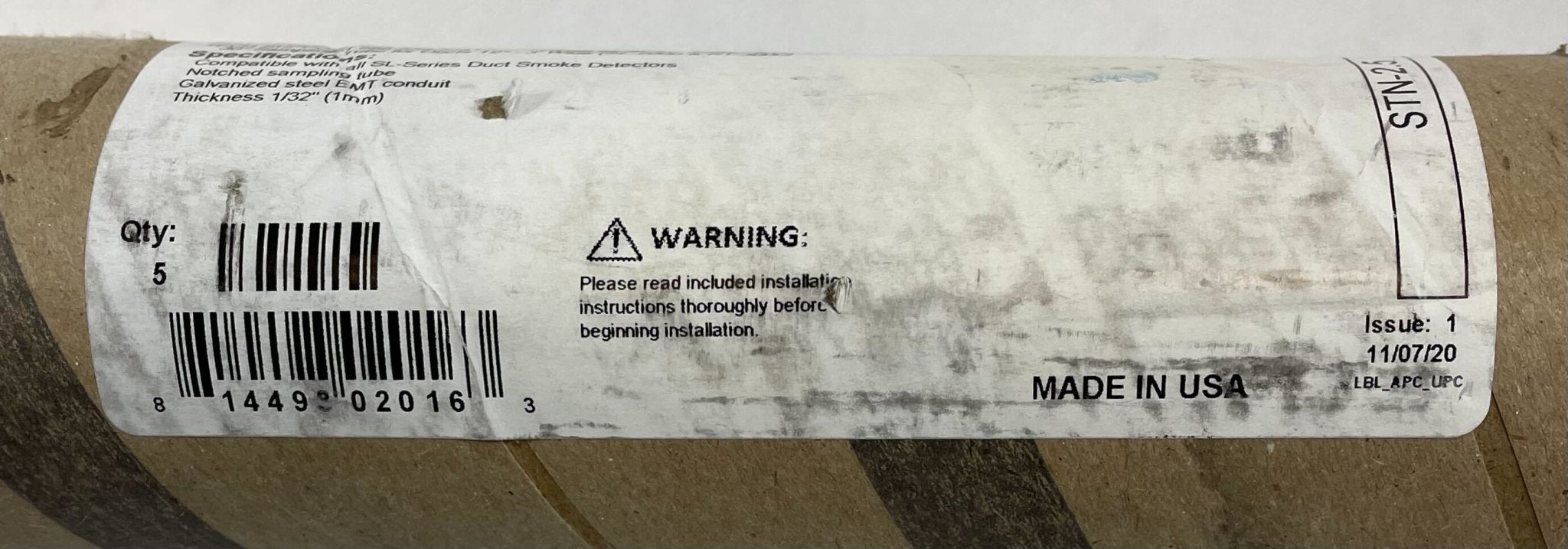

The STN-2.5 is a 2.5 ft sampling tube for Potter duct smoke detectors. It is a steel tube with air-intake holes along its length, used for ducts 1 ft to 3 ft wide; it is cut to length so it spans the full width of the duct.
Key Features
- For duct widths of 1.0 ft to 3.0 ft
- Steel tube with air intake holes along the entire length
- Cut to length in the field to span the duct
- Ordered separately from the duct detector
Specifications
| Model |
STN-2.5 |
| Stock number |
1000274 |
| Length |
2.5 ft |
| Duct width range |
1.0 ft to 3.0 ft |
Compatible With
- Potter PAD200-DUCT / PAD200-DUCTR
- Potter PAD300-DUCT / PAD300-DUCTR
- Potter PAD100-DUCT / PAD100-DUCTR
- SL-2000-P series duct detectors
