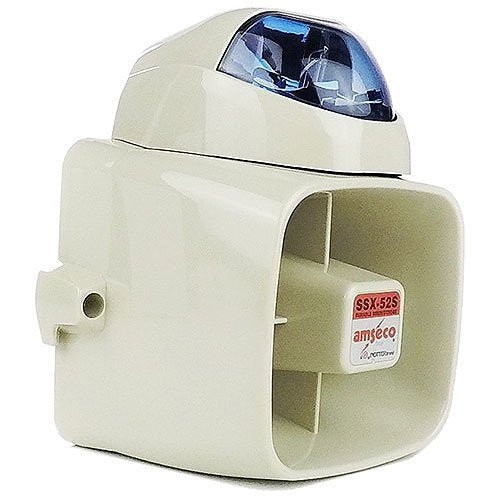

Potter SSX-52SB is a self-contained indoor/outdoor siren with a blue strobe from the SSX-52 Series. The siren driver gives a single warble tone at 115 dB at 1 meter, and the strobe uses a colored mirror and blue lens. It suits busy production floors and other indoor or outdoor sites where a high-output warning is needed.
The housing is polycarbonate on a sturdy aluminum back plate, and a dual action reed plunger protects both the cover and the rear against tampering. It mounts directly to a wall or to a 4 in. square back box.
Specifications
| Series |
SSX-52 (stock no. 4150026) |
| Rated voltage |
12 VDC |
| Operating voltage range |
9.6 to 14.4 VDC |
| Current draw |
748 mA max |
| Sound output |
115 dB at 1 m, warble tone |
| Strobe lens |
Blue, 1.80 cd min on axis |
| Flash rate |
20 to 100 times per minute |
| Tamper contact |
0.3 A at 12 VDC |
| Operating temperature |
-4°F to 149°F (-20°C to 65°C) |
| Housing |
Polycarbonate on aluminum back plate |
| Mounting |
Wall or 4 in. square back box |
Features
- Self-contained siren with strobe for indoor or outdoor use
- Single warble tone, 115 dB at 1 m
- Dual tamper protection for cover and rear
- Strobe built from a colored mirror and lens
Related models
- SSX-52: siren only, no strobe
- SSX-52SA, SSX-52SC, SSX-52SR: amber, clear and red strobe versions
Documents
FAQ
What voltage does the SSX-52SB need?
It is rated 12 VDC with an operating range of 9.6 to 14.4 VDC, and draws 748 mA maximum.
How loud is the siren?
The SSX-52 Series siren driver delivers a single warble tone at 115 dB at 1 meter.
Can it be installed outdoors?
Yes. It is a self-contained indoor/outdoor siren strobe rated for -4°F to 149°F (-20°C to 65°C).
Does it have a tamper switch?
Yes. A dual action reed plunger protects the cover and rear, and the tamper contact is rated 0.3 A at 12 VDC.
