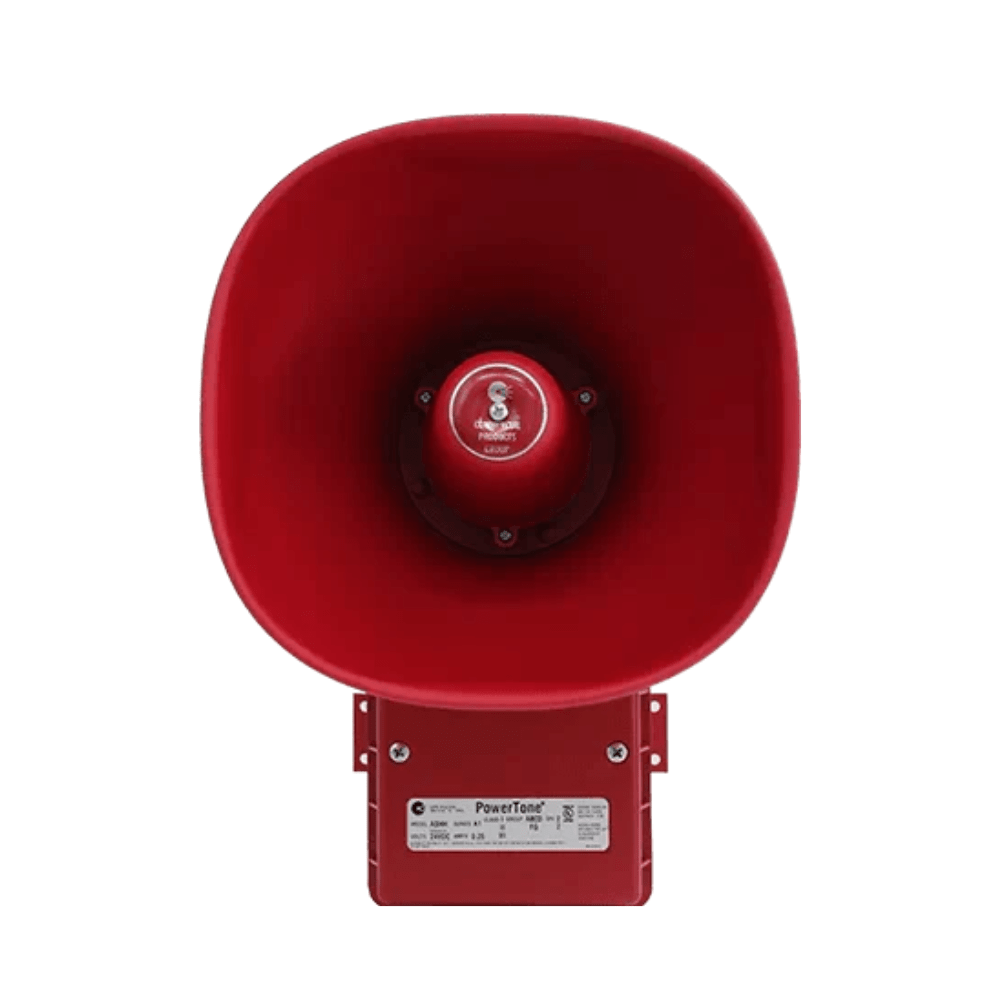

Potter SPHH-DVSMR CPG SPHH Series Powertone High Output Speaker
CPG Signals Model SPHH PowerTone High Output Speaker is designed for use in hazardous locations. The unit producers a crisp, clear, high-decibel tone/voice output. Tones may be generated by the PowerTone Signaling System or any 25Vrms or 70Vrms tone/voice audio system. The speaker cone and projector are of spun aluminum.
The circuitry and tone card are contained in dust and moisture proof sealed housing of die-cast aluminum. The speaker has a supervisory DC coupling capacitor and wattage taps from 0.5 to 15 watts. The speaker is UL Listed for indoor and outdoor use, is NEMA 3 rated, and is finished in red enamel. The PowerTone Speaker is designed for connection to system supervised alarm notification circuits.
Features
- Operates on 25Vrms or 70Vrms signal lines
- Multiple power taps at 0.5, 1, 2, 7 and 15W
- High dB output for coverage of large areas
- UL sound pressure level 102dB(A) at 10' (see chart)
- Built-in 15W high efficiency compression driver
- Die-cast aluminum circuitry housing
- Wide frequency response, 400 - 4000Hz
- NEMA 3 rated enclosure
- Indoor and outdoor mounting
