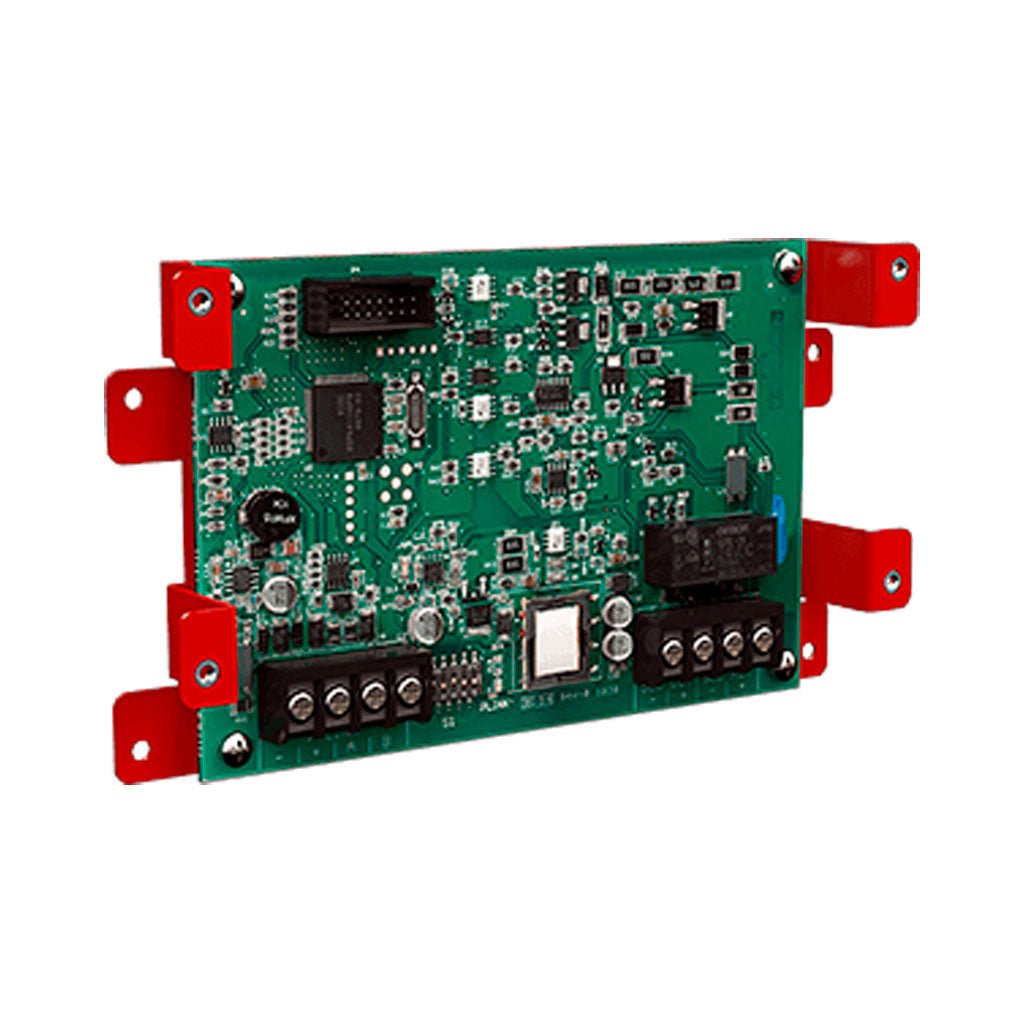

Potter SLCE-127 — Signaling Line Circuit Expander card that adds one addressable SLC loop to a PFC-6000 series fire alarm control panel.
The expander rides the Potter P-Link communication bus instead of a dedicated backplane, so no special wiring is needed for either the SLC or the P-Link connection and the card can sit wherever cabinet space allows. Class A or Class B SLC wiring is selected on the card itself, with no separate conversion module.
- Adds one loop to a PFC-6200 and up to seven loops to a PFC-6800
- Each loop adds 127 addressable sensors or modules in any combination
- Maximum 1 card per PFC-6200; maximum 7 cards per PFC-6800
- Four wire RS-485 P-Link connection, power limited and supervised
- 60 mA alarm current, 60 mA standby current
- 4" × 6" × 1-5/8" (W × H × D), on the included Stacker Bracket
- Mounts in the large PFC enclosure, AE-8 or AE-14 accessory cabinet, or PSN-1000/E
- 5 year warranty
One card equals one loop: a PFC-6800 taken out to its full loop count needs seven SLCE-127s, while a PFC-6200 accepts only one.
