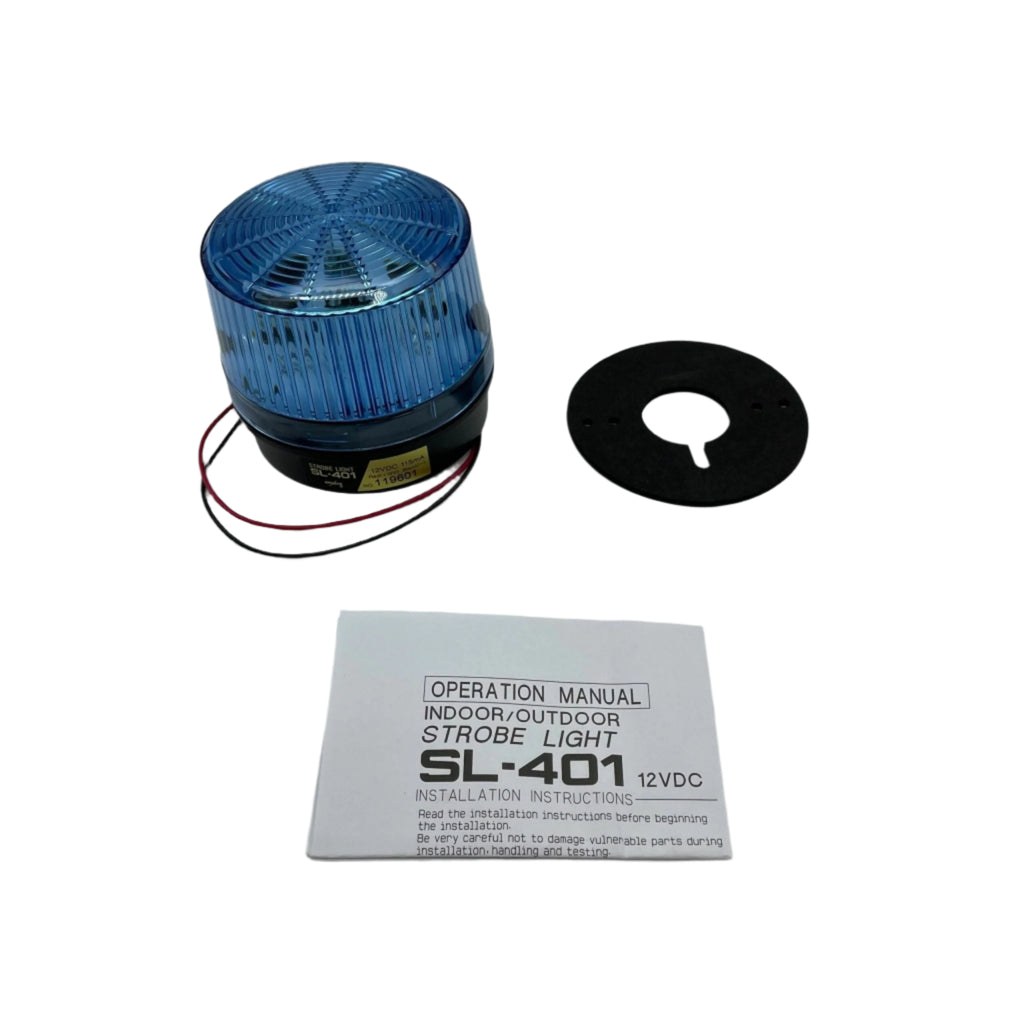

Potter SL-401-B — 12 VDC blue-lens xenon strobe from Potter's security line; it is not a fire alarm notification appliance.
Potter catalogs the SL-401 under Commercial Security as a conical strobe, beside burglar bells and sirens; the 12 VDC bell-box hardware matches. Its 60,000 candle power figure is a lamp rating, not a UL effective candela. Neither the datasheet, its installation sheet, nor the Potter security catalog claims UL 1971, UL 1638 or any other listing. Do not install it as a visual notification appliance on a fire alarm system.
- 12 VDC nominal, 9.6 to 14.4 VDC range — will not run on a 24 VDC NAC
- 115 mA at 12 VDC; 60 to 100 flashes per minute

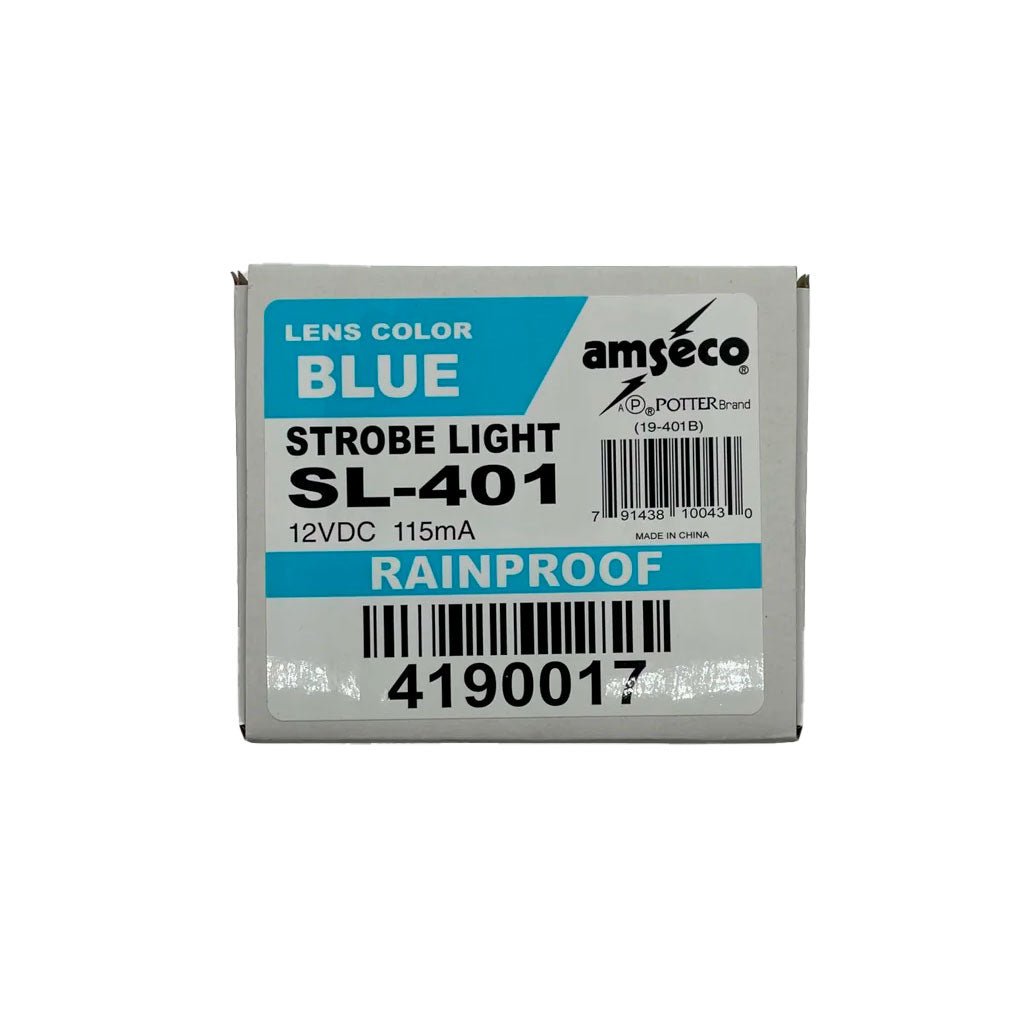

- Two 22 AWG leads, reverse polarity protected; blue lens, stock no. 4190017
- 4 in. square, 1-1/2 in. deep backbox; optional 4SP-MW trim plate
- -4°F to 140°F (-20°C to 60°C); over 200 hours lamp life
Two ordering errors: assuming a blue lens means a fire appliance, and assuming 24 V. If a listed fire strobe is required, specify one to UL 1971.
