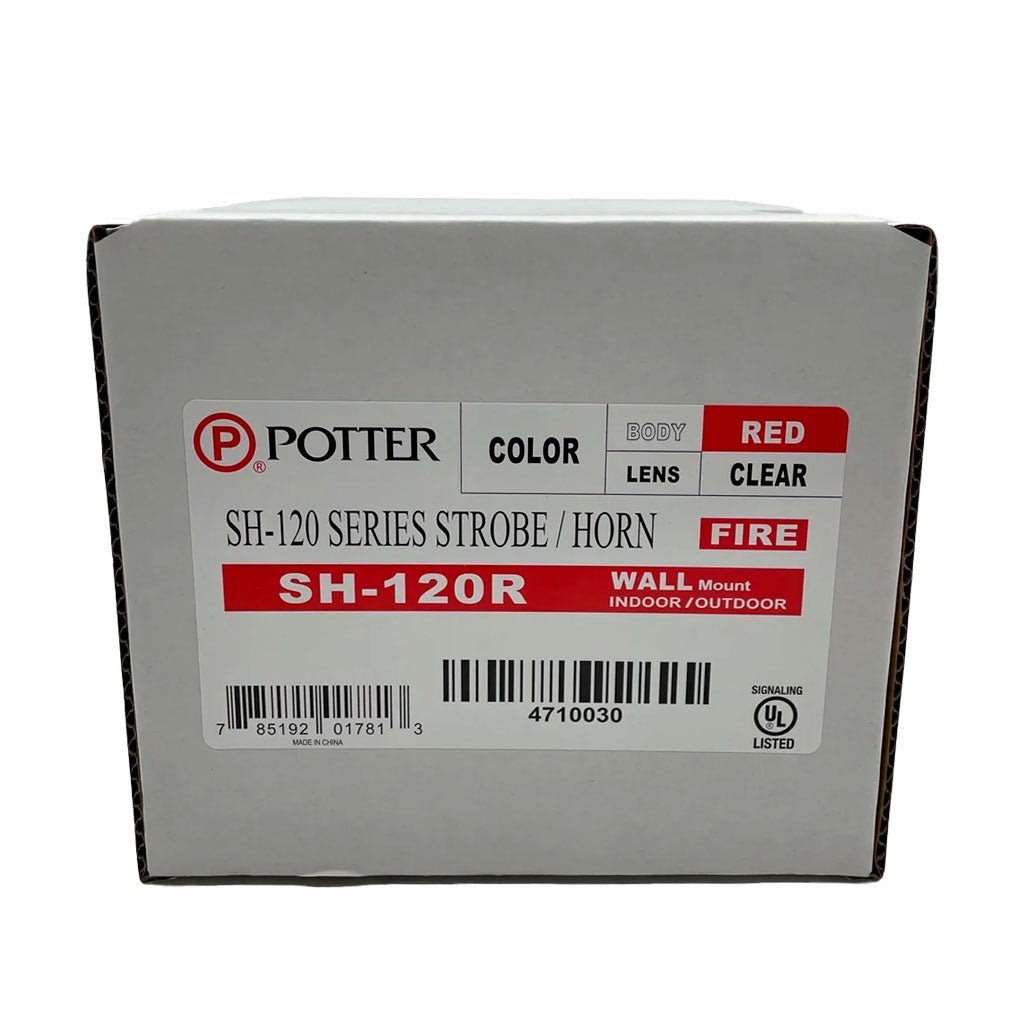

Potter SH-120R (part number 4710030) is a wall mount, weatherproof Select-A-Strobe/Horn from the SH-120 Series, with a red housing and clear lens, for 120 VAC operation.

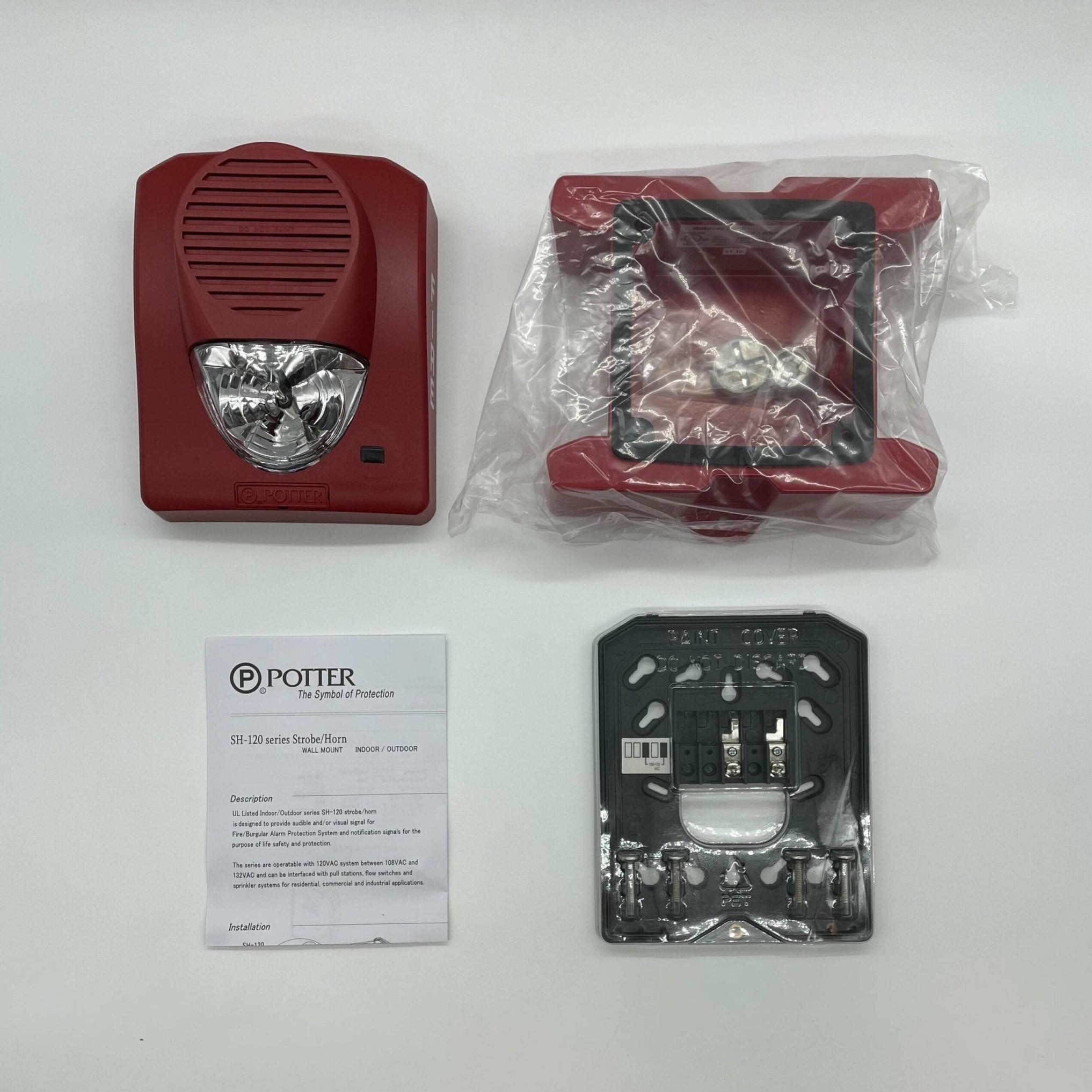

The SH-120 Series provides audible and visual signals for fire and burglar alarm protection systems and notification signals for life safety. It operates on a 120 VAC system between 108 and 132 VAC and can be interfaced with pull stations, flow switches and sprinkler systems in residential, commercial and industrial applications. The horn offers three tones, each as a continuous tone or a temporal (code 3) pattern, and the 90 cd strobe flashes 72 times per minute. A universal pre-wire back plate and single screw mounting simplify installation, and the BBX-5 weatherproof back box is included. Potter notes the SH-120 Series is for general signaling only and is not suitable for occupancy evacuation.
Specifications
| Part number |
4710030 |
| Color |
Red housing, clear lens |
| Rated voltage |
120 VAC, 60 Hz |
| Operating voltage range |
108 to 132 VAC |
| Maximum operating current |
203 mA RMS |
| Light output |
90 cd on axis |
| Flash rate |
72 per minute |
| Horn settings (dBA reverberant at 10 ft, UL 464) |
Steady 2400 Hz 85.20; electro-mechanical 86.34; broadband 85.34; temporal 2400 Hz 80.99; temporal electro-mechanical 81.99; temporal broadband 81.25 |
| Operating temperature |
-40°F to 151°F (-40°C to 66°C), indoor or outdoor |
| Construction |
ABS housing, polycarbonate lens |
| Back box |
BBX-5 weatherproof back box included |
| Wire gauge |
12 to 18 AWG |
| Standards |
UL 1638 general signaling (indoor and outdoor); horn certified to UL 464 |
Installation notes
-
Line voltage only: the SH-120R runs on 120 VAC (108 to 132 VAC). It is not a 12 or 24 VDC notification appliance.
-
General signaling: Potter states the series is for general signaling only and not suitable for occupancy evacuation.
-
Mounting: the universal back plate fits a single gang, double gang or 4 in. square standard or deep box, the BBK-1 weatherproof bell back box, or the included BBX-5.
-

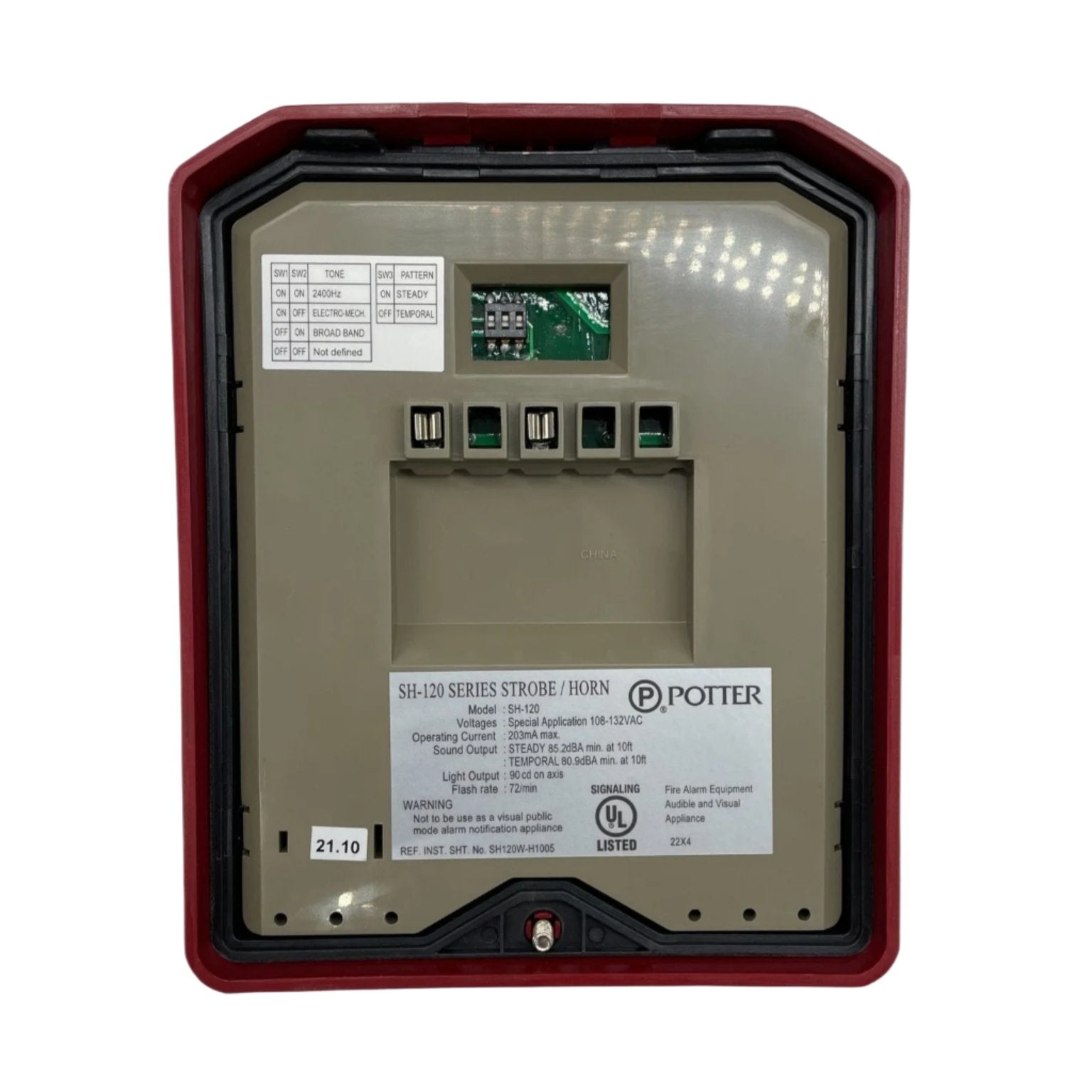

Tone selection: three switches set the tone (2400 Hz, electro-mechanical or broadband) and steady or temporal pattern.
-
Service safety: high voltage may be present in the light assembly even with power disconnected; discharge the capacitor before touching the component board.
-
Codes: install per NFPA 70 and NFPA 72.
Related models
-
SH-120W (4710031) — same strobe/horn with a white housing.
-
BBK-1 (1500001) — optional red weatherproof bell back box.
-
BBX-5 (4270048) — red weatherproof back box, included with the SH-120R.
Specifications taken from the Potter data sheet "SH-120 Series Wall Mount Weather Proof Select-A-Strobe/Horn," MKT. #8910015 Rev. E (11/21). Manufacturer specifications are subject to change without notice.
Documents
FAQ
Can the SH-120R be used on a 24 VDC NAC?
No. It is a 120 VAC device with an operating range of 108 to 132 VAC.
Can it be used for building evacuation?
No. Potter states the SH-120 Series is for general signaling only and is not suitable for occupancy evacuation.
Is a back box included?
Yes. The BBX-5 weatherproof back box is included; the BBK-1 bell back box is optional.
Can it be installed outdoors?
Yes. It is rated for indoor or outdoor use from -40°F to 151°F (-40°C to 66°C).
