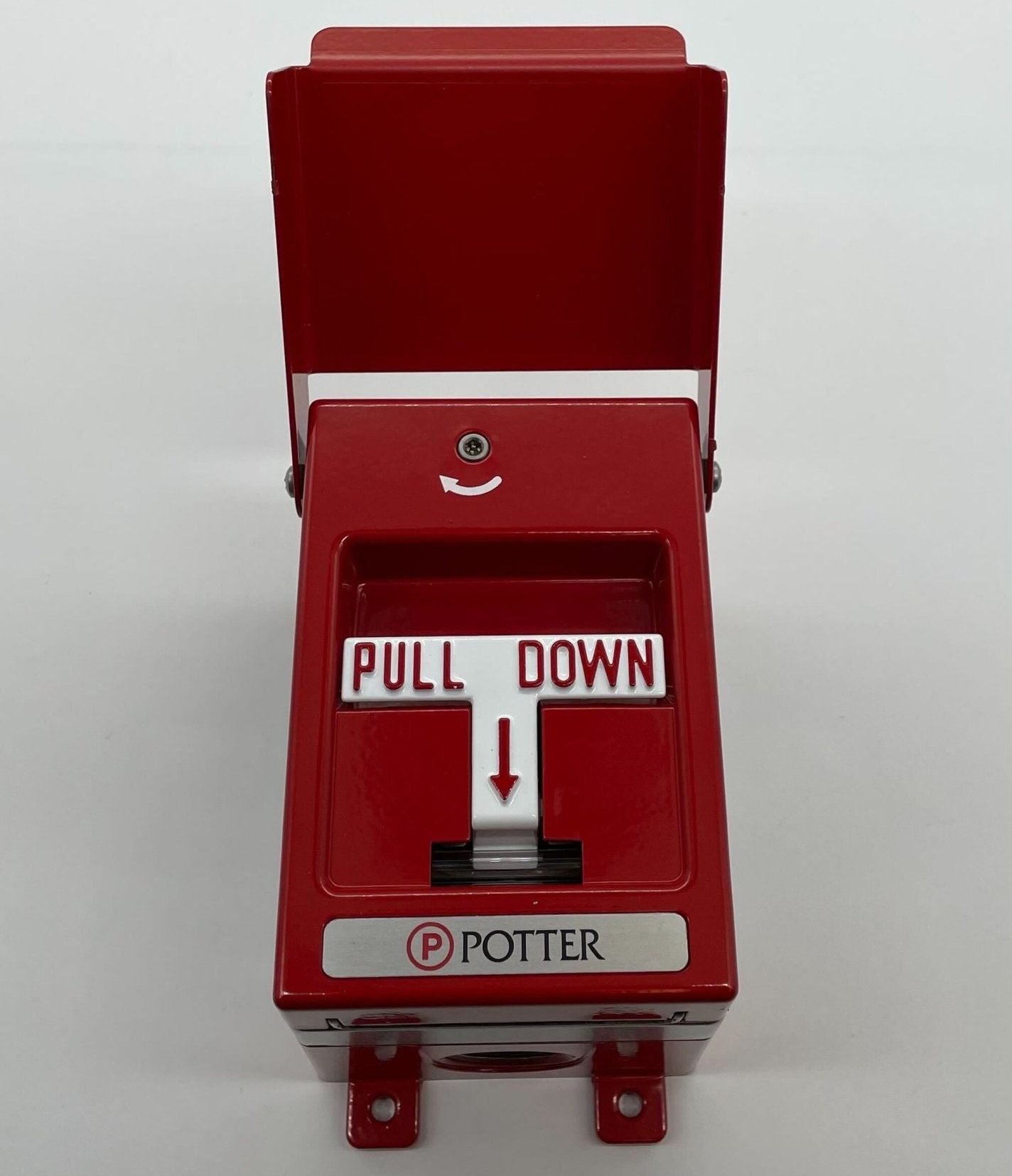

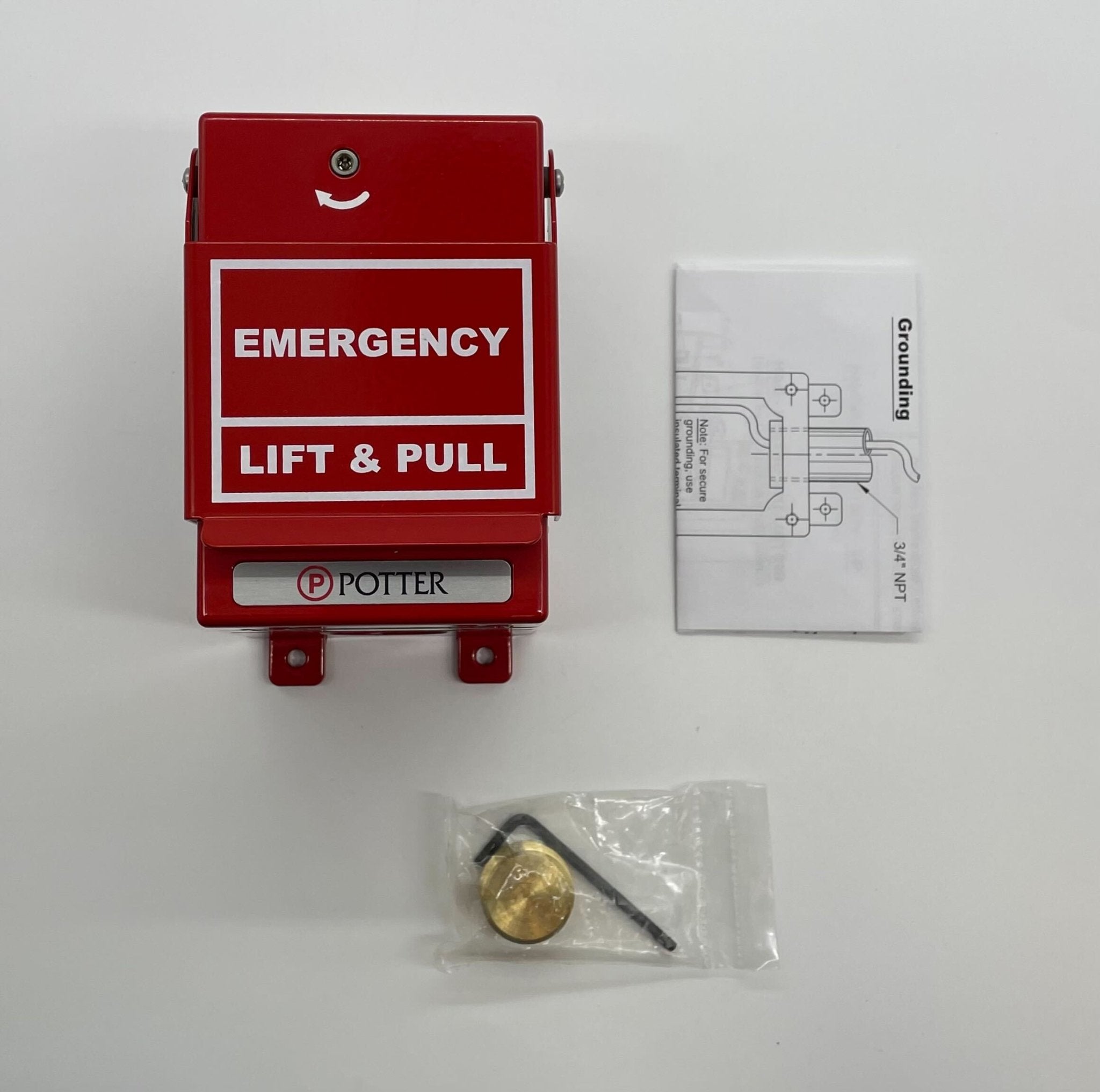

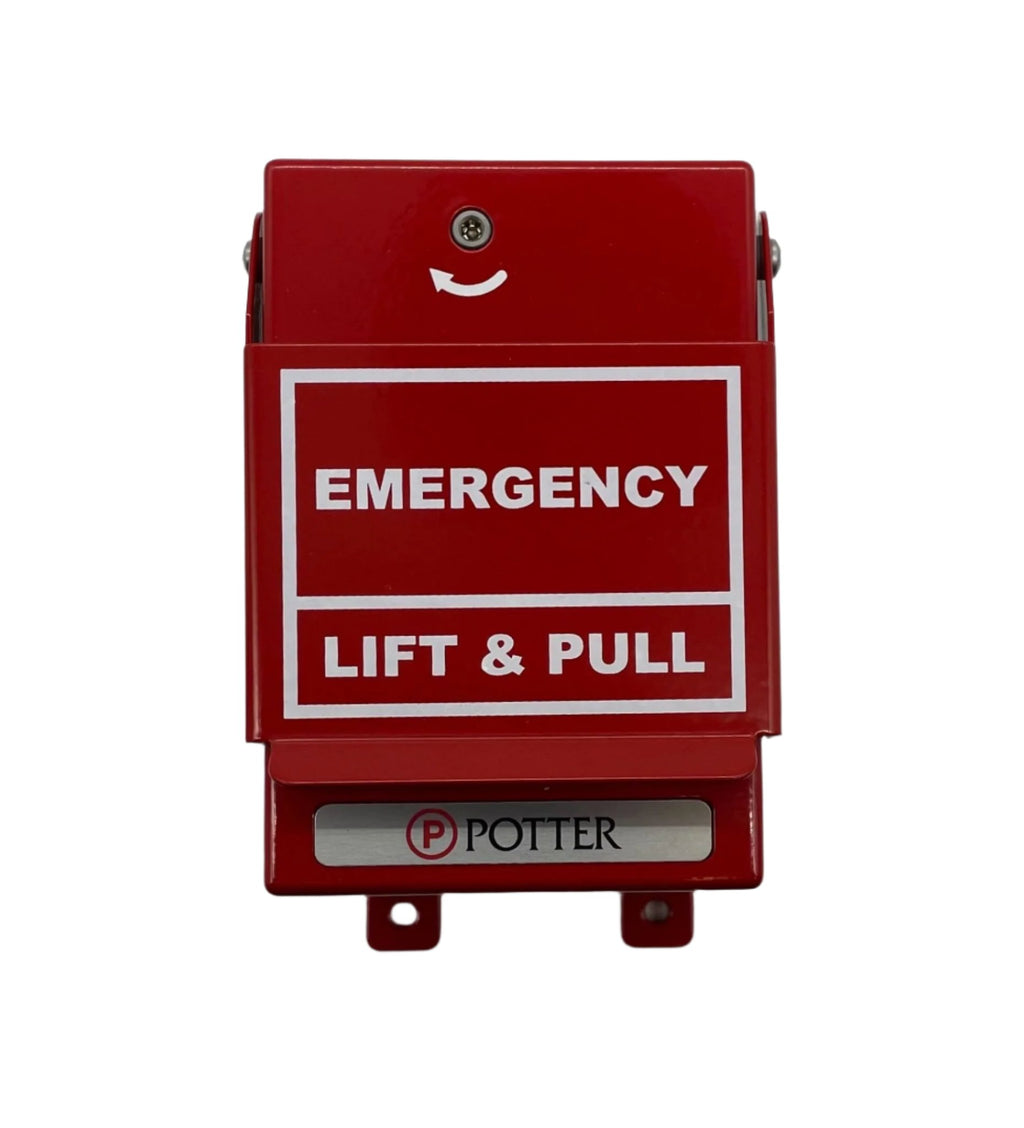

Potter RMS-6T-EXP-WP-LP is a die-cast metal, explosion-proof manual fire alarm pull station fitted with the Lift and Pull (LP) dual-action option. The station is UL certified for Class I, Groups B, C and D; Class II, Groups E, F and G; and Class III hazardous environments, and is rated NEMA Type 4X and marine. Pulling the handle fully down latches it in place, visible from up to 50 feet; the LP cover must be lifted first, which guards against unwanted activation. A key is required to open and reset the station.
Specifications
| Operation |
Dual action (lift and pull), non-coded, latching |
| Switch |
DPDT (two Form C), screw terminal connections |
| Switch rating |
1 A @ 30 VDC; 1 A @ 125/250 VAC |
| Terminal size |
12 to 22 AWG |

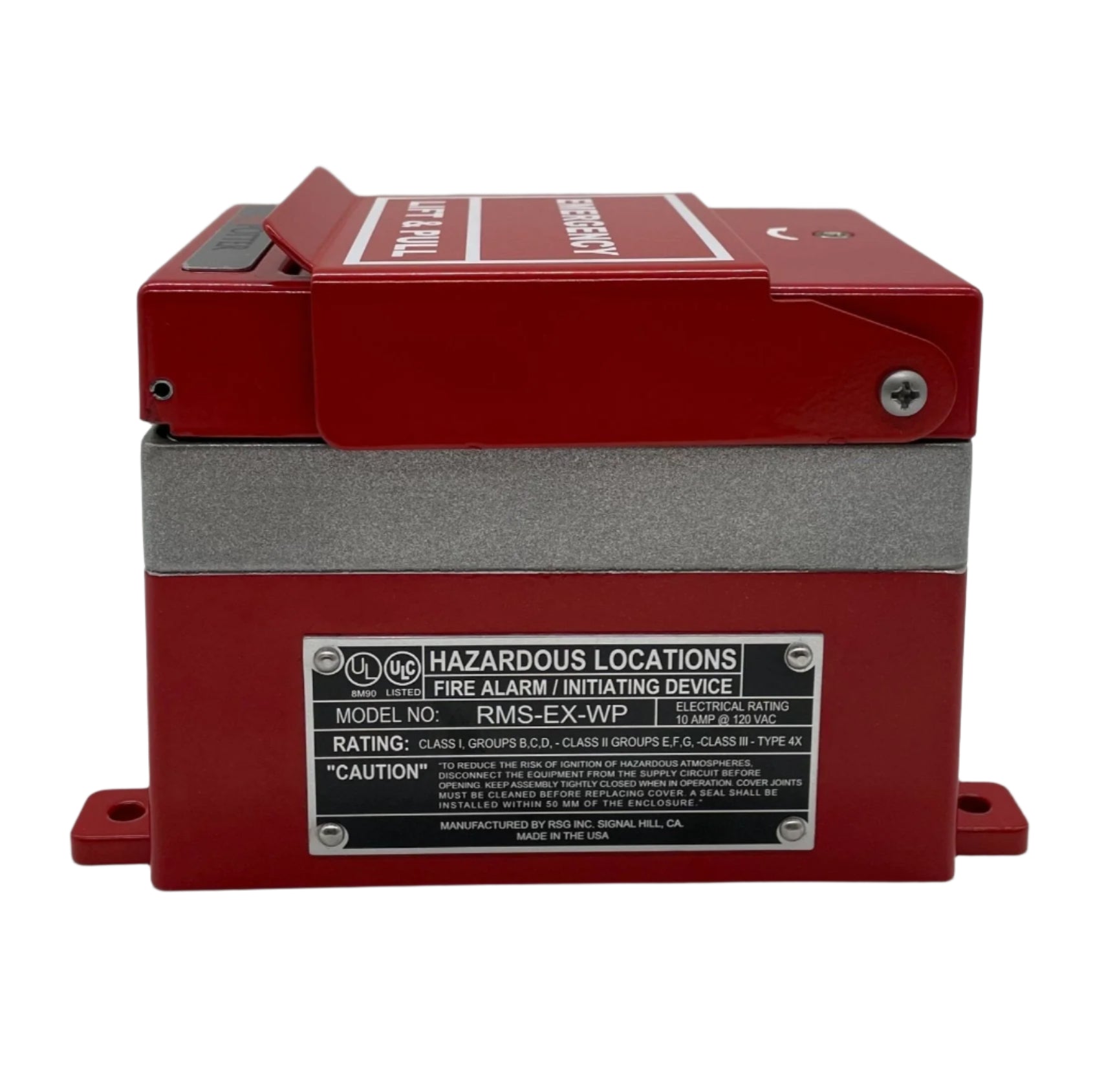

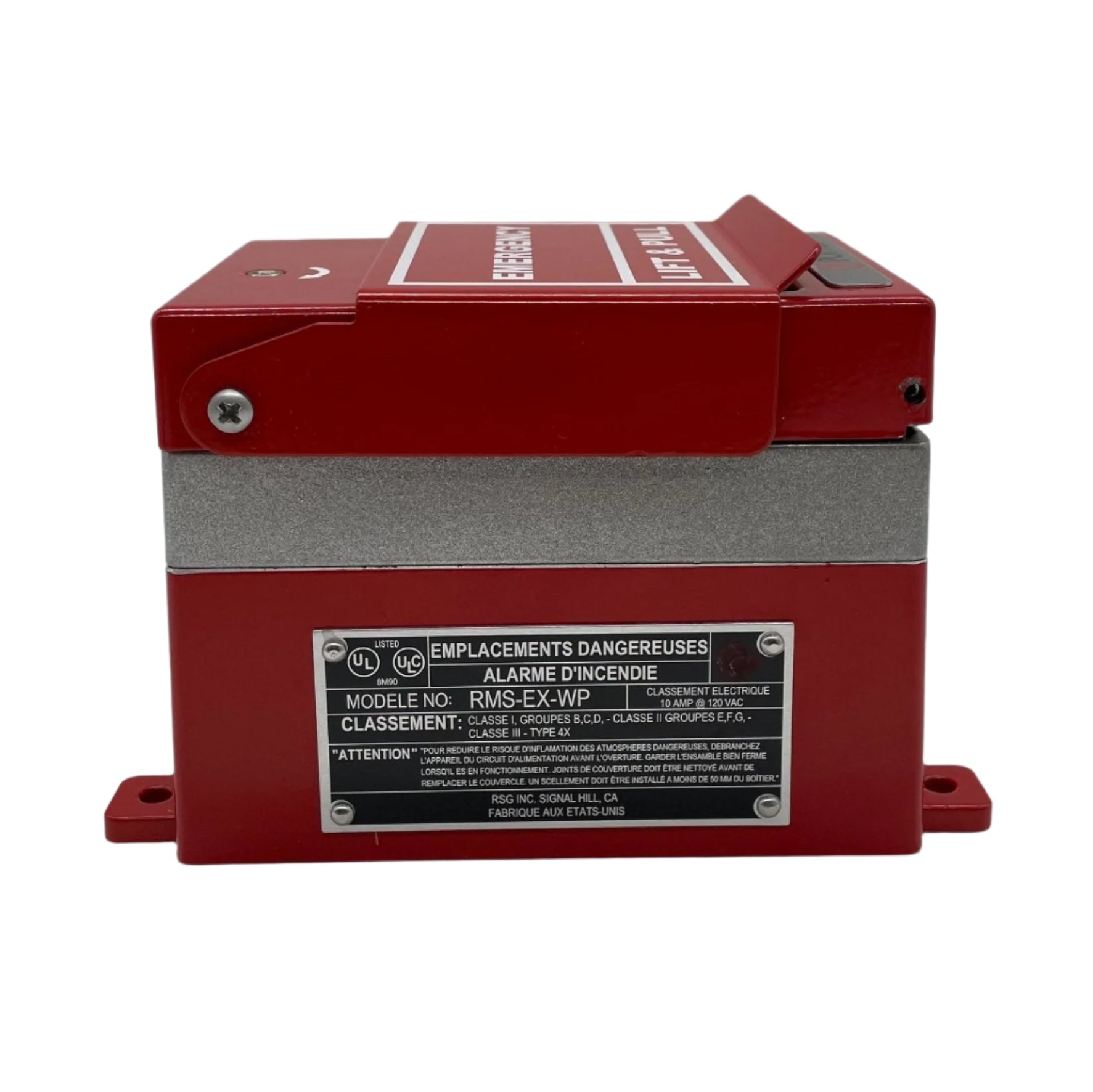

| Hazardous locations |
Class I Groups B, C, D; Class II Groups E, F, G; Class III |
| Weatherproof rating |
NEMA Type 4X |

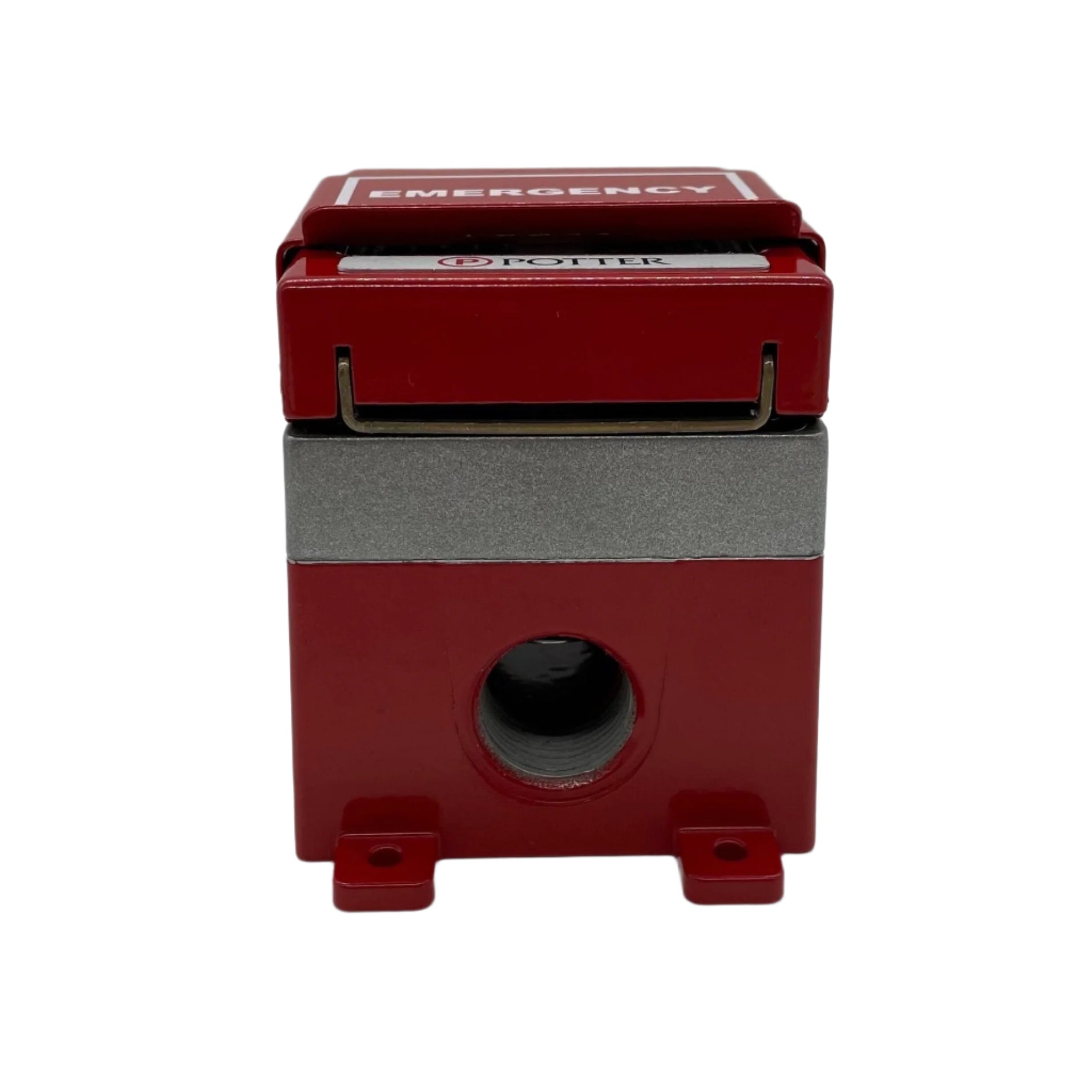

| Conduit fittings |
Two, 3/4 in. - 14 NPT |
| Temperature |
-30°F to 150°F (-35°C to 66°C) |
| Humidity |
85% RH at 86°F |
| Finish |
High gloss red enamel, raised white lettering; white handle |
| Certifications |
UL, CSFM, MEA; ADA compliant |
Installation notes
- Wire the DPDT contacts to the fire alarm control panel initiating circuit and on to the next device or EOL resistor.
- The activated handle stays latched until the station is opened with the key and the handle is returned upright.
- Custom colors and custom wording are available as factory options.
Related models
-
RMS-6T-EXP-WP — the same explosion-proof station in single action, without the LP cover.
-
RMS-6T-EXP-WP-LP-KL — LP version with a key lock.
-
RMS-1T-WP-LP — weatherproof (non-explosion-proof) station with Lift and Pull.
Documents
FAQ
What does the LP suffix mean?
LP is the Lift and Pull dual-action option for the RMS-6T-EXP-WP: the user lifts a cover before pulling the handle, adding security against unwanted activation.
Which hazardous locations is it rated for?
Class I, Groups B, C and D; Class II, Groups E, F and G; and Class III hazardous environments. It is also rated NEMA Type 4X.
How is it reset?
Open the station with the key, return the handle to the normal upright position and re-lock the station.
What conduit connections does it have?
Two conduit fittings, 3/4 in. - 14 NPT.
