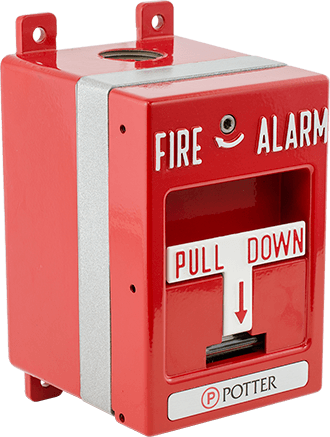

Potter RMS-6T-EXP-WP Explosion-Proof Manual Pull Station
The RMS-6T-EXP-WP is a high-quality, die-cast metal, explosion-proof manual fire alarm pull station available in either single or dual action configurations.
The RMS-6T-EXP-WP is approved for NEMA-4X applications and is UL Listed for use in Class I, Groups B, C, and D; Class II, Groups E, F, and G; and Class III hazardous environments.
The RMS6T-EXP-WP has a DPDT switch with terminal strip connections.
Operation
The RMS-6T-EXP-WP single-action station is operated simply by pulling the pull handle on the front of the station as far down as it will go, at which point the handle locks into place, and is easily visible from up to 50 feet.
The activated station is reset by opening the station with a key, placing the handle in the normal, upright position, and re-locking the station.
Optional dual action Lift and Pull or Break Glass adapter offer added security against unwanted activation without complicating the overall pull station operation.
Architects And Engineers Specifications
The manual pull station shall be UL Listed for Explosion-Proof, Marine and NEMA 4X applications for use in the intended environment. It shall be painted red with raised white identification lettering.
The station shall have two sets of form C contacts. It shall be a non-coded, single-action station that shall latch in the activated position.
When activated, the latched handle shall be easily recognizable as being in the activated position when viewed from a distance of at least fifty feet.
A locking mechanism shall be provided to prohibit unauthorized reset of the manual station. A key shall be required to unlock and reset the station.
