Potter RLY-5 — relay expander card adding five configurable relay outputs to a compatible Potter fire alarm control panel over the P-Link bus.

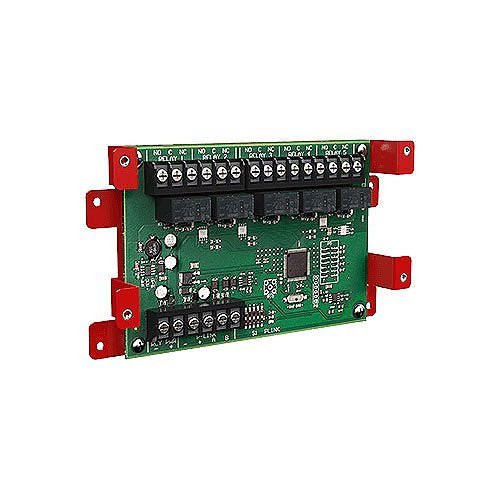

The card talks to the panel on the four-wire RS-485 P-Link bus, a connection that is both power limited and supervised, and its outputs are configured in the Potter Configuration Software rather than by jumper. Each relay brings out normally closed, common and normally open terminals. Relay power is taken separately, from the panel or any fire listed supply.
- Five configurable relays rated 3.0 A at 24 VDC and at 125 VAC resistive
- P-Link draw at 24 VDC of 25 mA standby and 35 mA in alarm
- Relay power input 16–33 VDC at 10 mA standby and 135 mA in alarm
- Up to 31 RLY-5 cards per panel, P-Link runs to 6,500 feet
- For IPA Series, AFC/ARC Series and PFC-4064 panels
- Also the legacy P-Series and PFC-6000 Addressable Series
- UUKL certified for smoke control, CSFM 7305-0328:0200
The stacker bracket it mounts on is included, but an enclosure is not: the card goes in an AE-2, AE-8 or AE-14 accessory enclosure, or inside a PSN-1000E supply or a larger panel enclosure.
