Potter RCDS-1 is a release circuit disable switch. It is a keyswitch that physically disconnects the release circuit, in place of a software-controlled disconnect, and it creates a supervisory condition on the associated release panel.

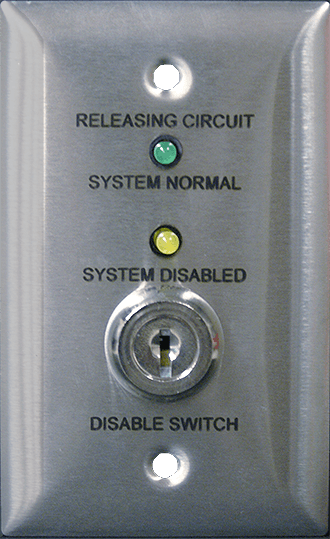

The device has a stainless steel faceplate with a green LED, an amber LED and a switch assembly, and mounts on a standard single-gang electrical box. It complies with NFPA 72 and works with any 24 VDC system.
Features
- Physical switch to disconnect the release circuit instead of a software disconnect
- Creates a supervisory condition on the associated release panel
- Green and amber LEDs indicate system status
- Key can be removed in both switch positions
- Stainless steel plate mounts to a single-gang box
- Compatible with any 24 VDC system
Specifications
| Product type |
Keyswitch |
| Application |
Fire alarm, indoor |
| Material |
Stainless steel |
| Height |
4.5 in. |
| Width |
2.8 in. |
| Depth |
2 in. |
| Mounting |
Electrical box |
