Potter RA-6500 is a 160-character LCD remote annunciator for Potter PFC-6000 series fire alarm control panels. It connects to the panel over a four-wire RS-485 link and gives common indication of alarm, supervisory, trouble and other system status, with control functions at the remote location.

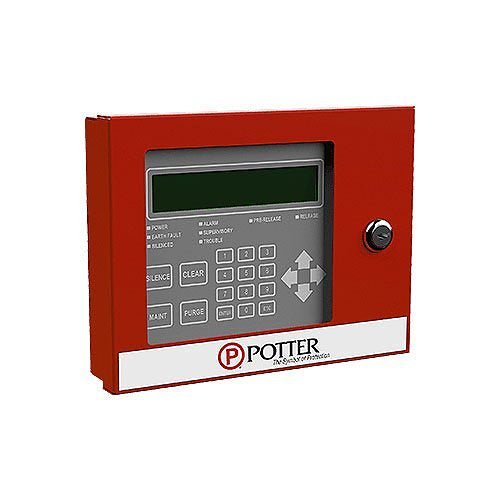

The 4 line by 40 character display is backed by LEDs for power, alarm, supervisory, trouble and silenced conditions. The annunciator is housed in a sheet metal enclosure with a Potter lock securing the keypad, and mounts on a single-gang or four-square electrical box.
Specifications
| Display |
4 x 40 character LCD (160 characters) |
| Connection |
Four-wire RS-485, power limited and supervised |
| Annunciators per panel |
Up to 31 |
| Maximum wire length |
6,500 ft |
| Current |
20 mA standby, 25 mA alarm |
| Wire gauge |
14 to 22 AWG |
| Size |
10 x 7-7/8 x 1-5/8 in. |
| Operating temperature |
32 to 120 °F |
| Warranty |
5 years |
Installation notes
- Set the address from 1 to 31 with DIP switch S1 on the back
- Class B or Class A wiring; Class A needs the optional Class A Expander
- Mounts on a single-gang or four-square electrical box
Related models
- The RA-6500 is offered in red, black, gray and light gray
- RA-6075: remote annunciator for the PFC-6075
Documents
FAQ
Which panels does the RA-6500 work with?
Potter PFC-6000 series fire alarm control panels, connected over a four-wire RS-485 link.
How many annunciators can one panel support?
Up to 31 RA-6500 annunciators, with a maximum wire length of 6,500 feet.
How is the address set?
With DIP switch S1 on the back of the annunciator, in the range 1 to 31.
Can it be wired Class A?
Yes, but Class A wiring requires the optional Class A Expander.
