Potter RA-6075R is a 32-character LCD remote annunciator for the Potter PFC-6075R addressable releasing fire control panel. It connects over a four-wire RS-485 link and gives common indication of alarm, supervisory, trouble and other system status, with control functions at the remote location.

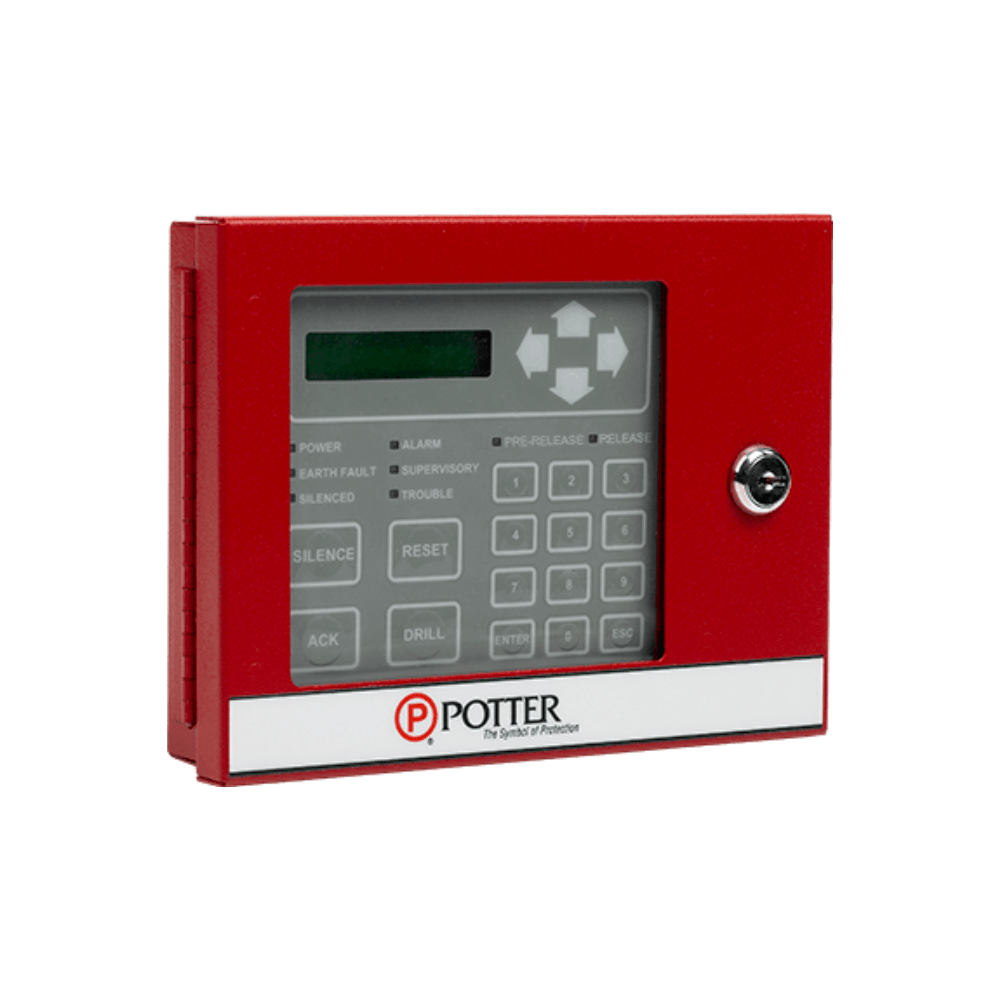

The 16 x 2 LCD is backed by LEDs for power, alarm, supervisory, trouble and silenced conditions, plus Release and Pre-Release LEDs that show releasing status. The annunciator is housed in a sheet metal enclosure with a Potter lock securing the keypad.
Specifications
| Display |
16 x 2 LCD (32 characters) |
| Panel |
Potter PFC-6075R |
| Connection |
Four-wire RS-485, power limited and supervised |
| Annunciators per panel |
Up to 31 |
| Maximum wire length |
6,500 ft |
| Current |
20 mA standby, 25 mA alarm |
| Wire gauge |
14 to 22 AWG |
| Size |
8 x 6-1/4 x 1-5/8 in. |
| Operating temperature |
32 to 120 °F |
Installation notes
- Set the address from 1 to 31 with DIP switch S1 on the back
- Class A wiring requires the optional CA-6075 Class A Expander
- Mounts on a single-gang or two-square electrical box
- Install per Potter installation manual 5403594
Related models
- RA-6075: annunciator for the PFC-6075 and PFC-6030 panels
- RA-6500R: 160-character releasing annunciator
Documents
FAQ
Which panel does the RA-6075R work with?
The Potter PFC-6075R addressable releasing fire control panel.
Does it show releasing status?
Yes. Besides the common LEDs it has Release and Pre-Release LEDs.
How many can be connected?
Up to 31 annunciators, with a maximum wire length of 6,500 feet.
Can it be wired Class A?
Yes, with the optional CA-6075 Class A Expander.
